Page 45 DCN 4727 REV 6 Doc No. C29115

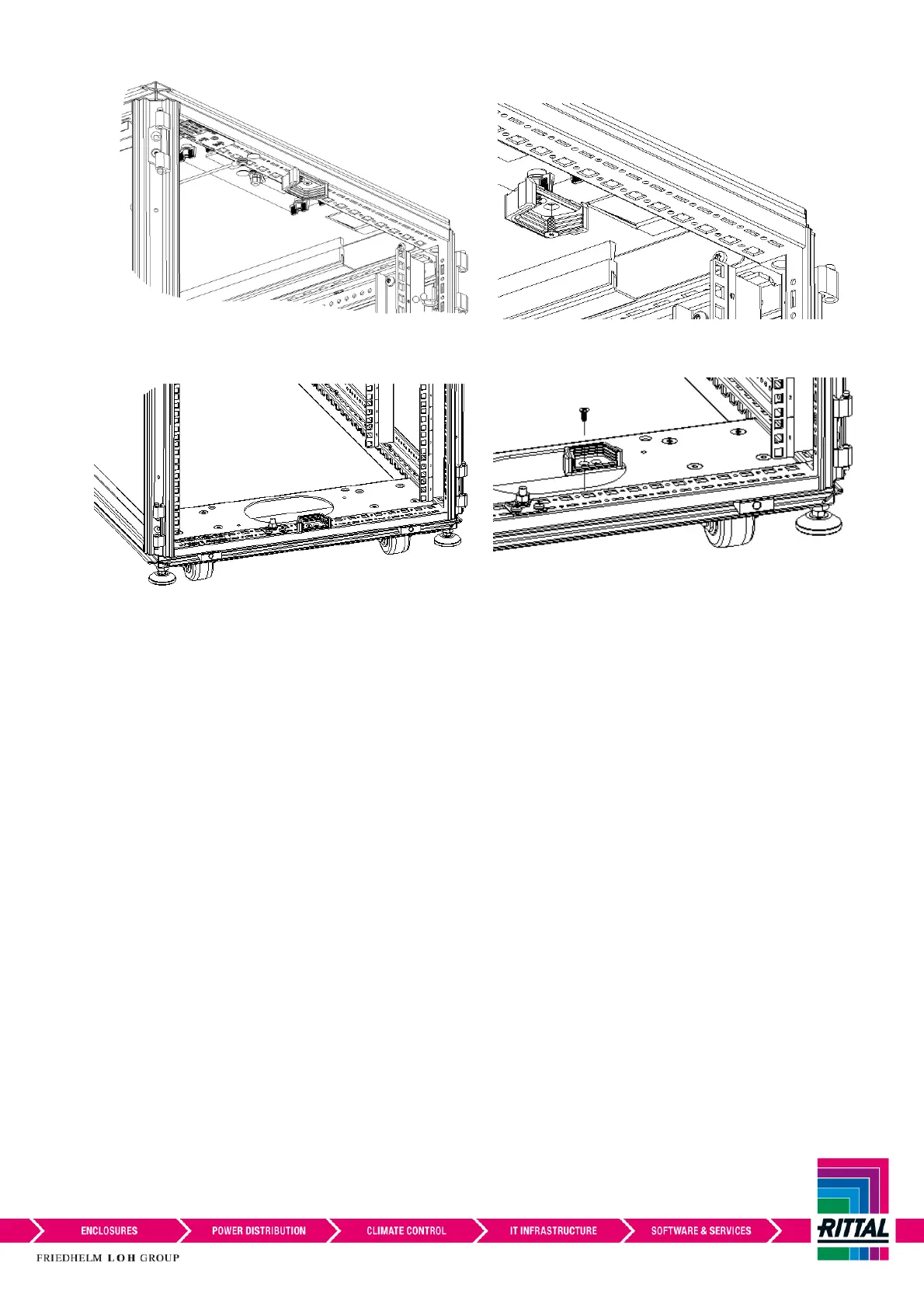

Rear top bracket installed 10
th
hole from left or right. Use 1 M5x12mm screw. Torque 5 – 6 Nm.
Rear bottom bracket installed 10
th
hole from left or right. Use 1 M5x12mm screw. Torque 5 – 6 Nm.
Please note images are for visual representation only and may differ from actual rack but process remains
the same.
Bottom of Rack
Top of Rack
