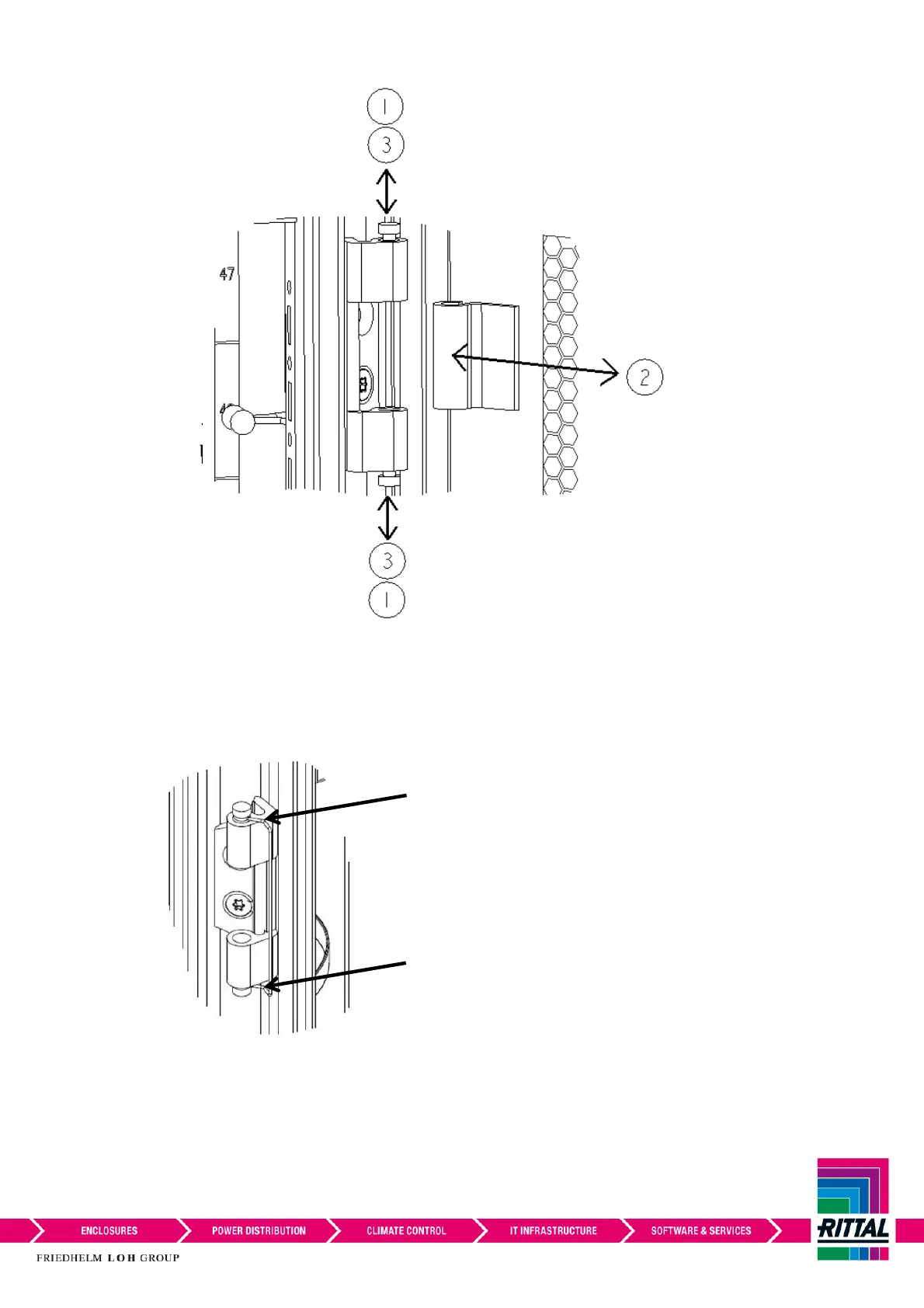

1. Retract hinge pins (Direction arrow 1).
2. Align front door to hinges. (Direction arrow 2).
3. Push pins into hinge. (Direction arrow 3).
4. Fit hinge clips onto hinge
pins and rotate into position.
