Page 37 DCN 4727 REV 6 Doc No. C29115
Please note images are for visual representation only and may differ from actual rack but process remains
the same.

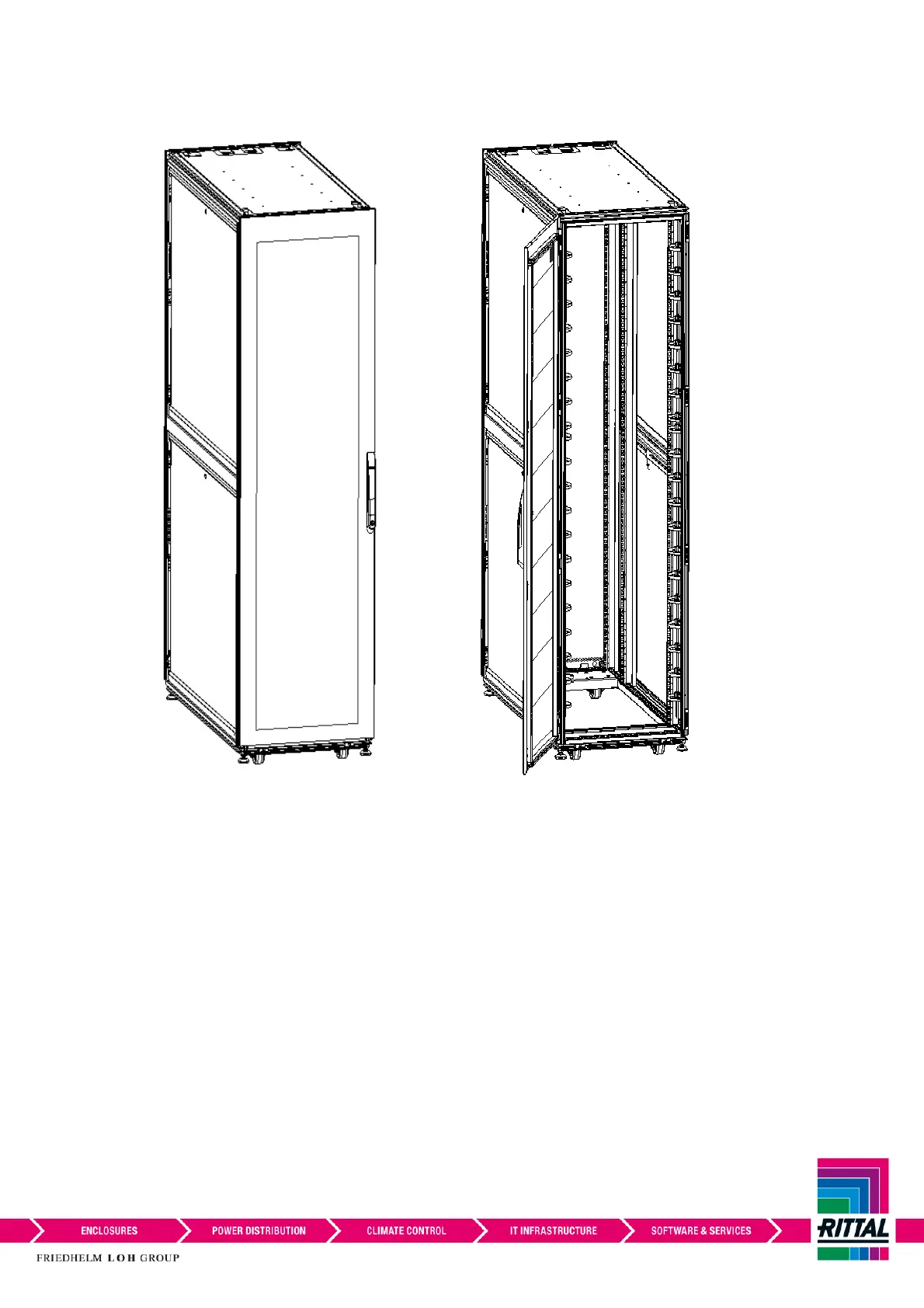

Install front door hinges, hinge clips and latches with 1
M6x10mm screw for each hinge/latch. Each door requires 4
hinges, hinge clips and latches in the correct locations as
shown.
