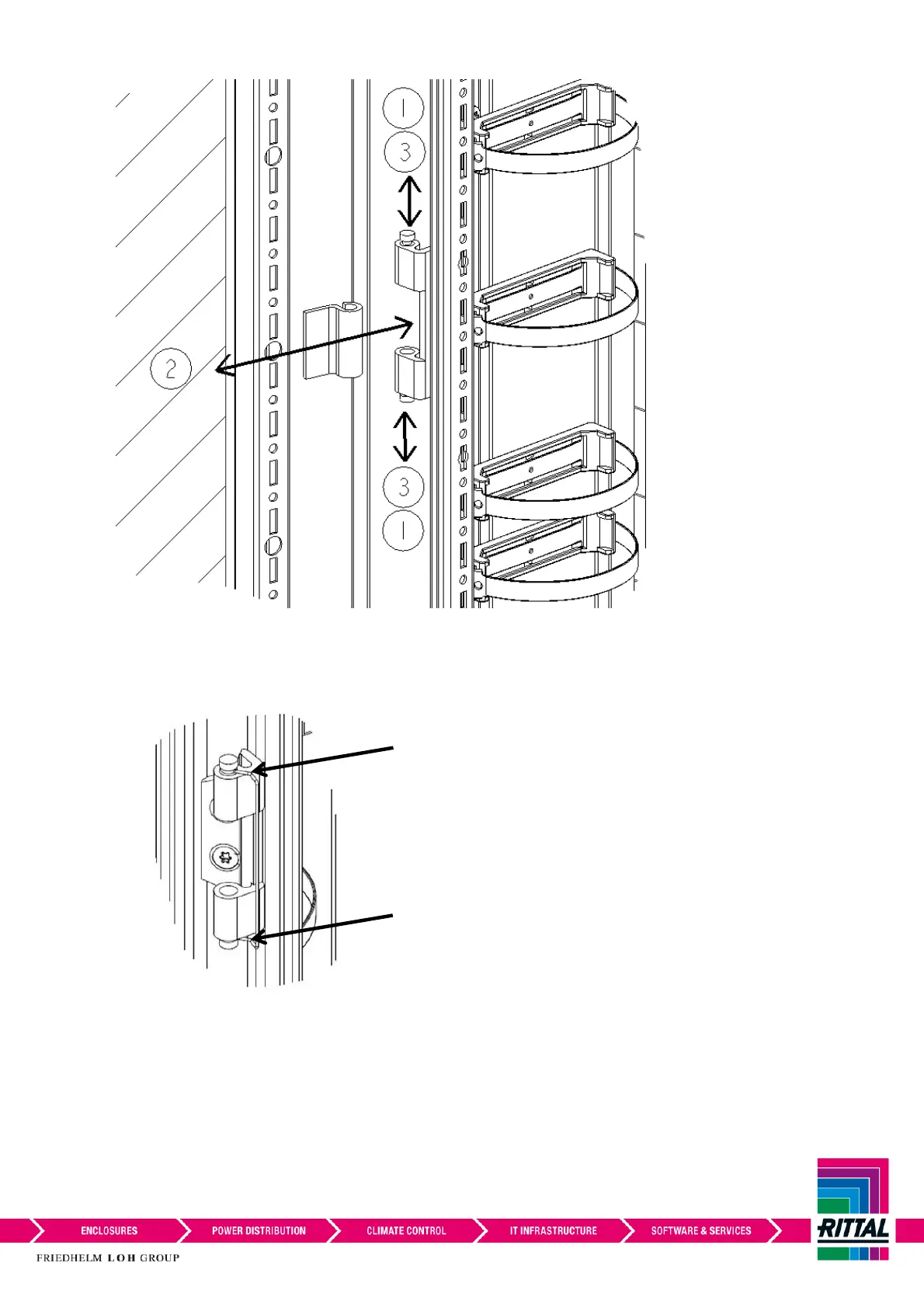

1. Retract hinge pins (Direction arrow 1).
2. Align front door to hinges. (Direction arrow 2).
3. Push pins into hinge. (Direction arrow 3).
Please note images are for visual representation only and may differ from actual rack but process remains
the same.
4. Fit hinge clips onto hinge
pins and rotate into position.
