RKI Instruments GD-70D Series User Manual

GD-70D - 10 -

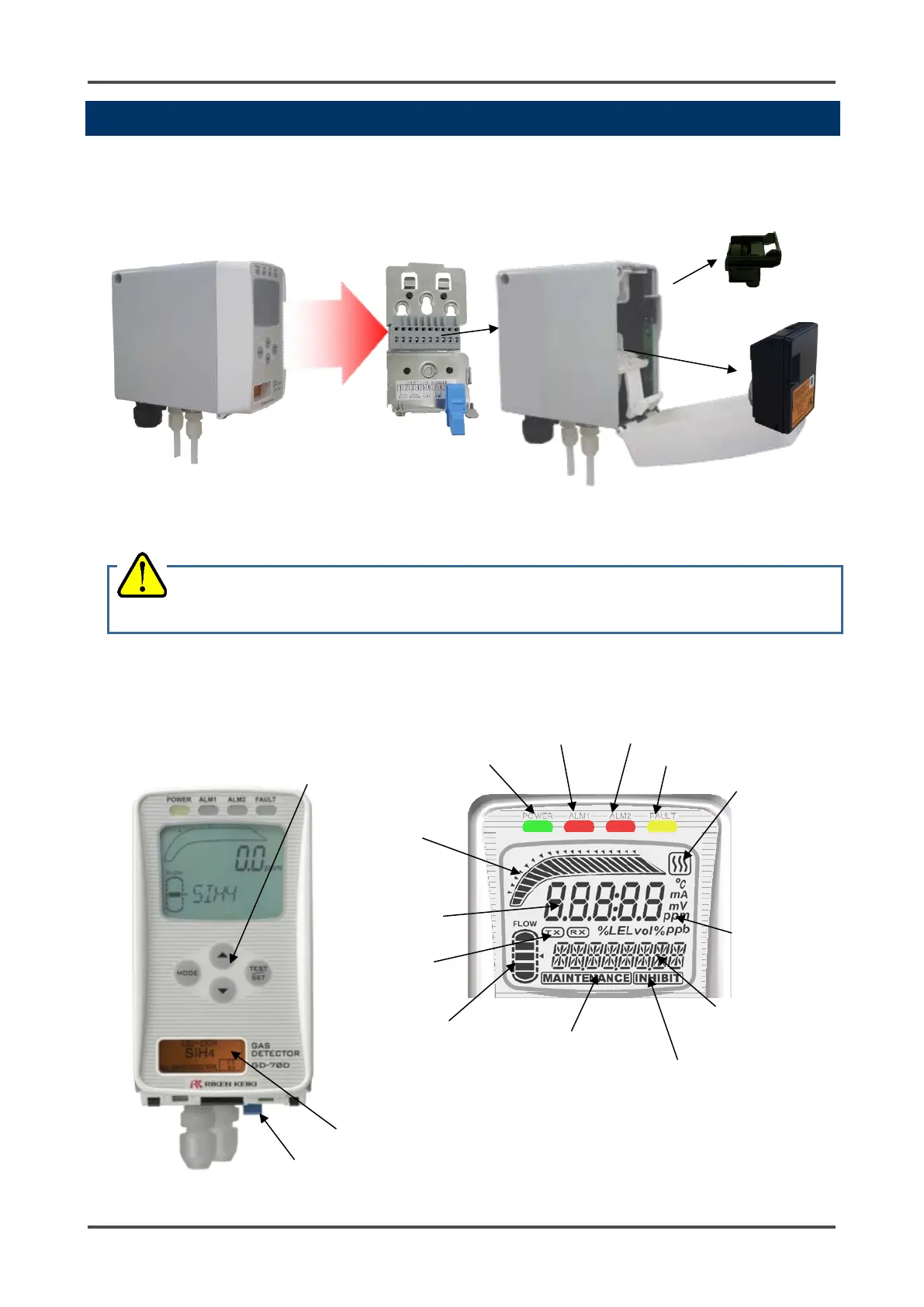

3-3 Names and Functions for Each Part
The detector consists of the following units.
<Front Panel and Character LCD>
Wall-mounted unit
Main unit
Pump unit
Sensor unit

MODE key
 TEST/SET key
 ▲key
 ▼key

Lock lever

Sensor unit nameplate display window

Power lamp

First alarm lamp

Second alarm lamp

Fault lamp
⑪
Gas name display
⑫
Concentration
value display
⑬
Unit display
⑭
Concentration
bar indicator
⑮
Alarm setpoint
indicator
⑯
Flow rate
indicator
⑰
Communication
indicator
⑱
Maintenance
indicator
⑲
Inhibit indicator
⑳
Pyrolyzer unit
connection indicator
CAUTION
Each unit consists of precision parts. When a unit is detached, be careful not to drop it. Dropping
the unit compromises its original performance or causes malfunctions.
