<Pyrolyzer Unit (PLU-70)(Option)>
* This is needed in “pyrolyzer + electrochemical type (ESU)” and “pyrolyzer + pyrolysis-particle type
(SSU)”.
For more information on the pyrolyzer unit (PLU-70), see the separate operating manual.

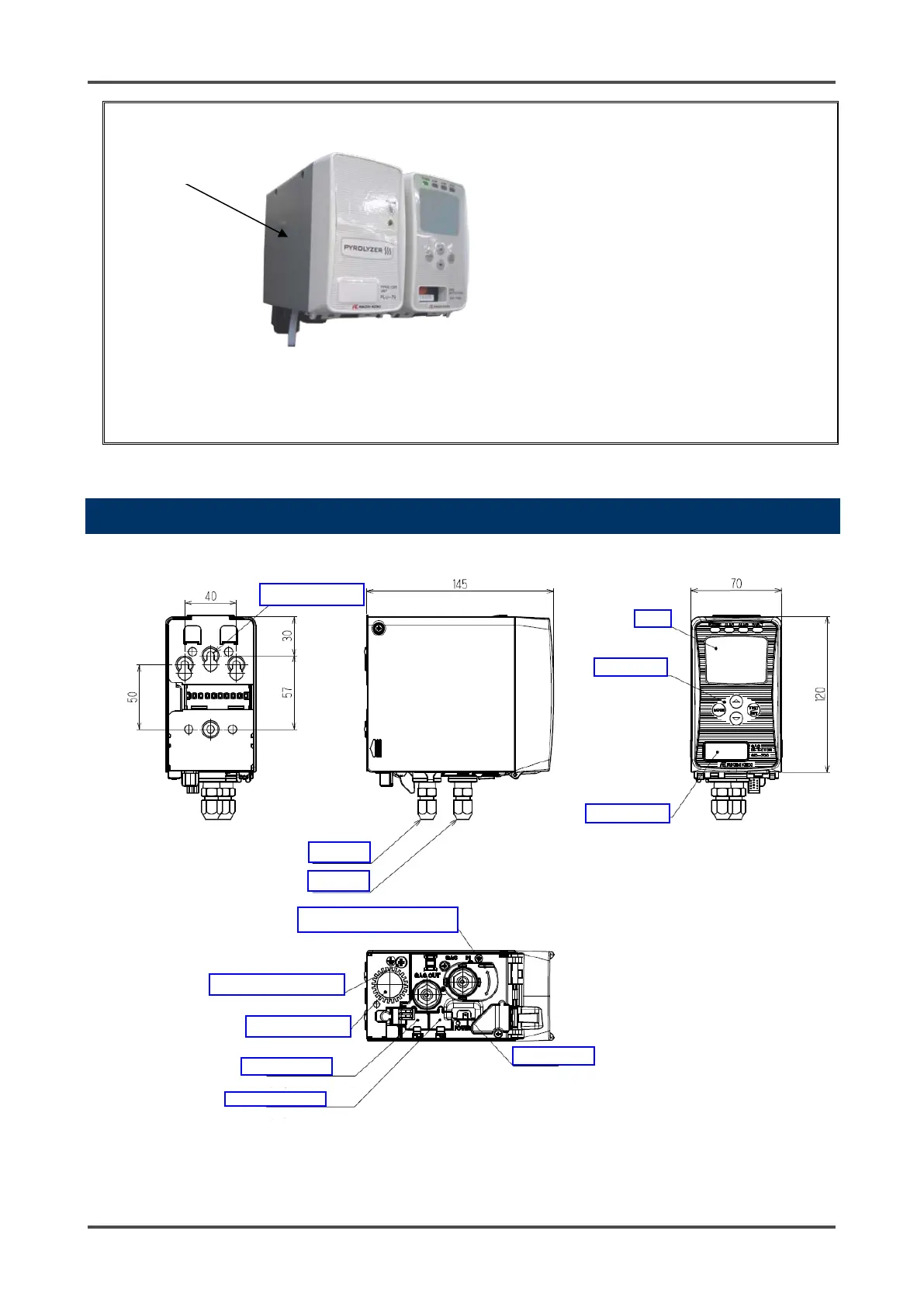

3-2 Outline Drawing
Pyrolyzer Unit
(Unit: mm)
M5 mounting hole
GAS IN
GAS OUT
Sensor unit display
Operating switch
Display
Protective cover for power switch
Screw for grounding earth rod
External wire hole
Connector for PLU
Connector for PoE
Power switch
