Installation RMC / RZ / RM / RL
© robatherm 7

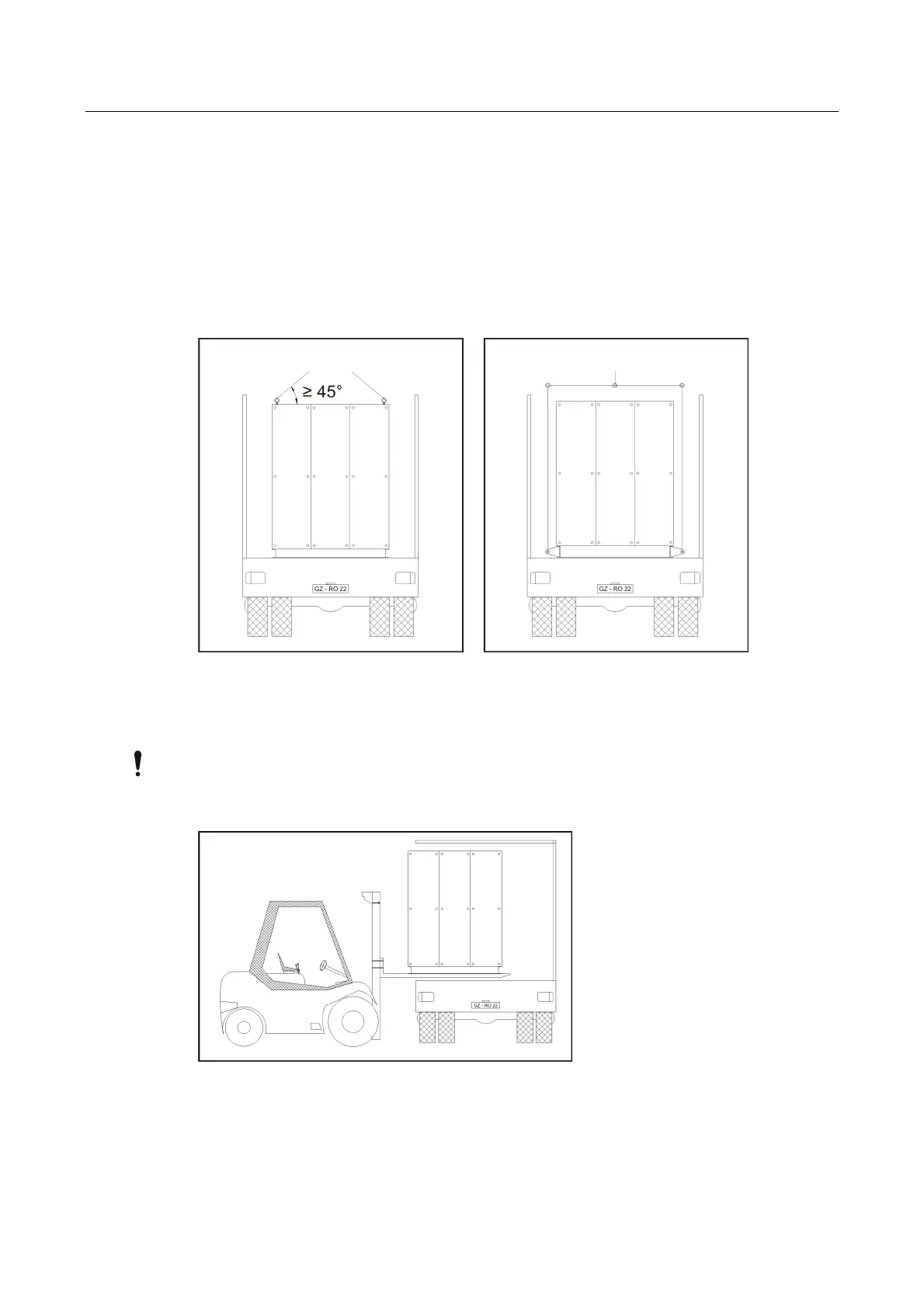

Unloading by Means of Lifting Eyes (image to left)
Fasten slinging device to lifting eyes. If the angle of inclination between the slinging device
and load is less than 45°, then a lifting harness is to be used.
Unloading by Means of Transport Loops (image to right)
The transport loops must be used for unit parts which are fully mounted on a DIN-frame.
For DIN-frame units with six transport shackles and by means of a suitable onsite lifting
equipment (e.g. cargo gear), it is imperative that an even load distribution on all transport
shackles must be ensured.
Pos: 17.7 /Montage/_G abelstapler-Entla dung und Transport @ 0\mod_12 57500058891_2008. doc @ 2072 @ 3
Unloading and Transport by Fork Lift Truck
Pos: 17.8 /Sicher heitshinweise/Montage/ !Montage_Entladu ng-Gabelstapler_Ac htung @ 0\mod_12575000 68027_2008.doc @ 2073 @
Attention
When unloading and transporting with fork lift trucks, use forks which go fully underneath
the unit. Only transport units on the base frame or on the pallet.
Pos: 17.9 /Montage/E ntladung und Transpor t_Gabelstapler @ 0\mod_1 257500079444_2008.doc @ 2074 @ 4
Unloading Fork Lift Truck
