Pressure Relief Damper
Pos: 72.2 /Inbetri ebnahme und Wartung/_Inbe triebnahme @ 0\mod_12579 29574289_2008.doc @ 2116 @ 3
Commissioning
Pos: 72.3 /Sicher heitshinweise/!Vor sicht_Sicherheitshi nweise beachten_Quer verweis @ 0\mod_125777 7093652_2008.doc @ 2112 @
Caution
Observe general safety instructions on page 3!
Pos: 72.4 /Sicherheitshinweise/IBN&Wartung/!IBN&Wartung_Überdruckklappe_I BN_Vorsicht @ 0\ mod_1258478732281_2008. doc @ 2240 @
Caution
There is a possibility of damage to persons or property as a result of impact or air jet under
high pressure through unexpected release of the pressure relief damper!
Protective devices must be fitted and effective in accordance with DIN EN ISO 12100.
Pos: 72.5 /Inbetri ebnahme und Wartung/Über druckklappe/Überdr uckklappe_IBN_Ein stellung @ 0\mod_1258478 593416_2008.doc @ 223 9 @ 4
Setting
The release or application pressure of the pressure relief damper against the unit or duct
wall can be varied by height adjustment , and altering the number and distance of weights
(see characteristics).

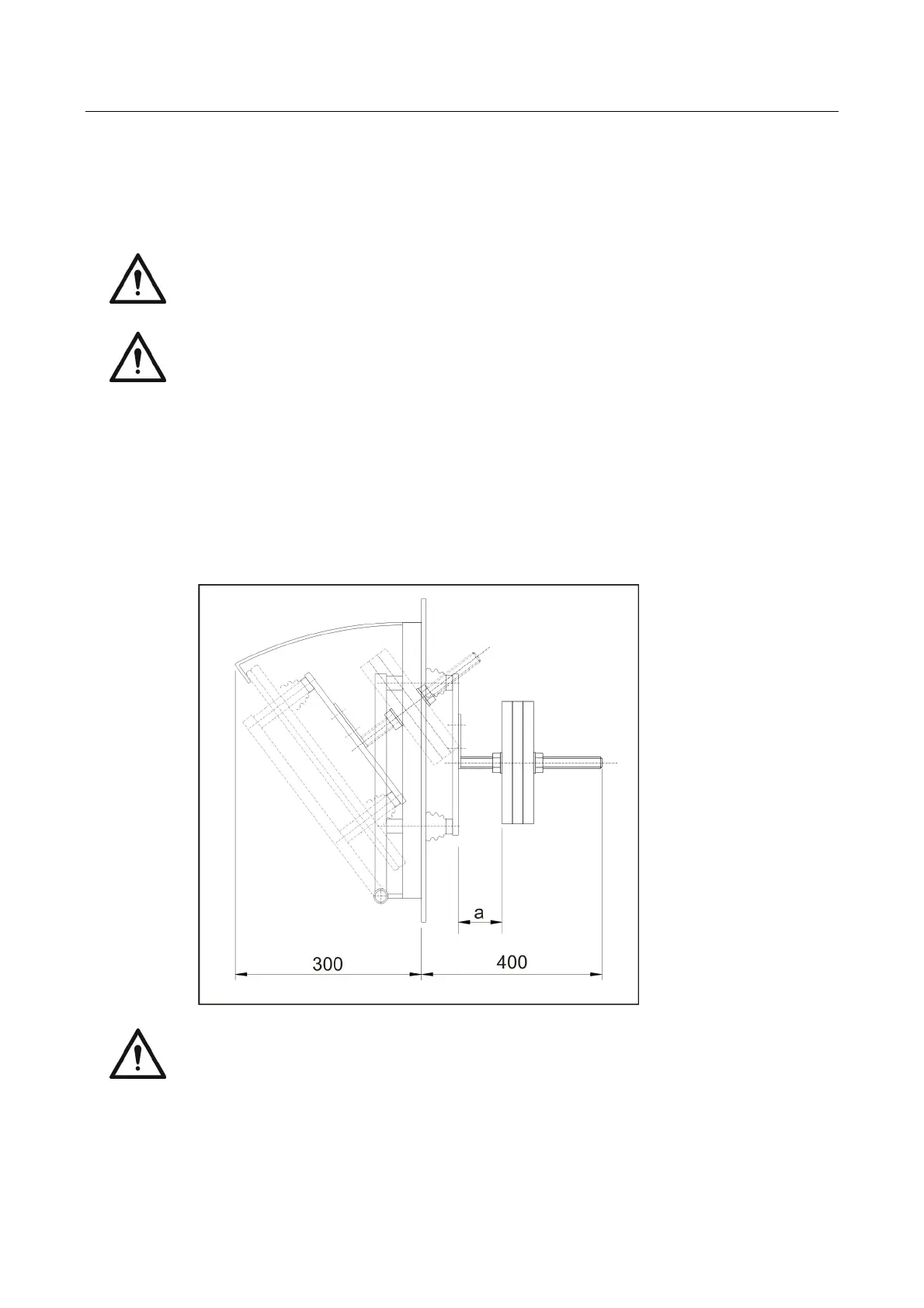

The presetting is made by means of the indicated a-dimension.
By simulating maximum pressure in the network by using dampers which are as a rule
present in every system, release pressure must be tested and weights adjusted if necessary.
Pos: 72.6 /Sicherheitshinweise/IBN&Wartung/!IBN&Wartung_Überdruckklappe_I BN_Vorsicht2 @ 0\ mod_1258478789230_2008. doc @ 2241 @
Caution
Damage to persons or property may occur if the maximum pressure for the system is
exceeded!
