Installation RMC / RZ / RM / RL
16 © robatherm
Pos: 33.1 /Montage/_E ndreinigung @ 0\mod_1257 768641641_2008.doc @ 2093 @ 3
Clean Up
Pos: 33.2 /Montage/E ndreinigung @ 0\mod_12577 76956366_2008.doc @ 2111 @
When assembly is complete all components must be inspected for contamination and
cleaned if necessary in accordance with VDI 6022. Metal swarf in particular must be
removed carefully as it can lead to corrosion.
Pos: 33.3 /Sicher heitshinweise/!Vor sicht_Sicherheitshi nweise beachten_Quer verweis @ 0\mod_125777 7093652_2008.doc @ 2112 @
Caution
Observe general safety instructions on page 3!
Pos: 34.1 /Montage/_R evisionstür @ 0\mod_12 57768797923_2008. doc @ 2094 @ 3
Access Door
Pos: 34.2 /Montage/Re visionstür @ 0\mod_125 7777383347_2008.doc @ 2113 @
On completion of the assembly work all access doors must be checked for freedom of
movement. Depending on the operating conditions it can be necessary to align the access
doors accordingly. Bolt torque: 3 Nm.

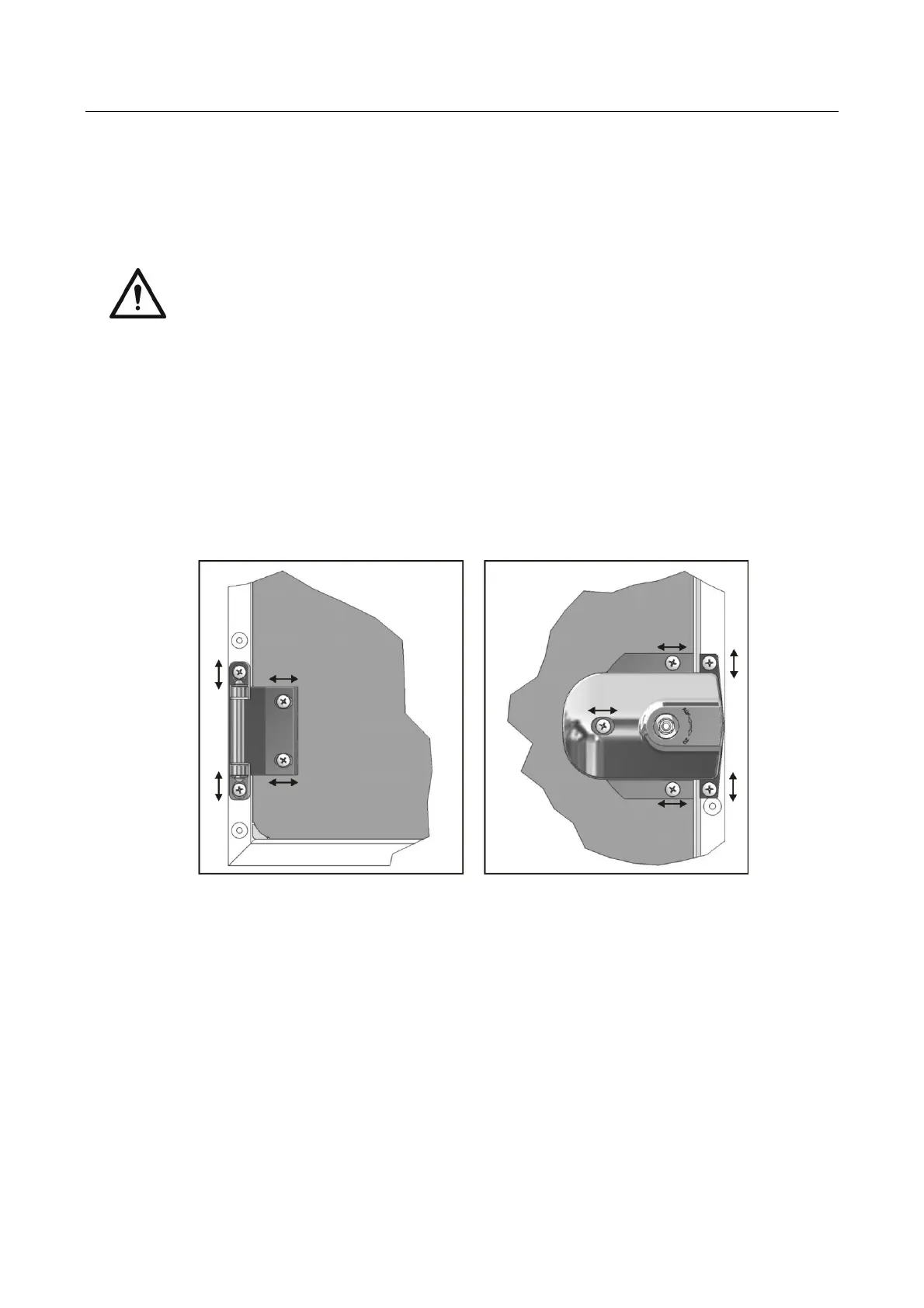

Hinge side (image left): The long holes in the hinge carrier enable vertical alignment of
the door leaf, the long holes in the hinge bracket allow horizontal alignment.
Lock side (image right): Following alignment of the door leaf on the hinge side, an
adjustment of the outer lock may be necessary. For this purpose the ramp of the closing
cam can be adjusted vertically and the closing housing horizontally.
Pos: 35.1 /Montage/_R otor-WRG @ 0\mod_12577775 07166_2008.doc @ 2114 @ 3
Rotary Heat Exchanger
Pos: 35.2 /Montage/Ro tor-WRG @ 0\mod_125777754 4362_2008.doc @ 2115 @ 4
For rotor housings which are supplied separately the rotor housing must be bolted in position
as instructed by the rotor manufacturer prior to installation of thermal mass.
For this it is necessary to lower the upper rotor housing accordingly.
Assembly of Rotors
In case assembly of a rotor is provided by the customer, the client is responsible that the
connection between rotor and unit casing will be professionally made and tightened (e.g.
with elastic joint seal).
