Replacing the battery.
Before replacing the battery, disconnect the xture from mains.
1.
Using a at-blade screwdriver, unscrew (anti-clockwise) the metal cover of battery compartment from rear panel
of the base.
2. Loosen (anti-clockwise) the battery holder cap.
3. Remove the exhausted battery from the battery holder.
4. Place a new battery (only the same type) into the battery holder (Negative (-) inside, Plus (+) outside).
5. Place back the battery holder cap and tighten it.
6. Screw the metal cover of battery
compartment
back to the r
ear panel of the base, use a
tightening torque 2.5Nm
.
Changing pan/tilt motors or pan/tilt driver.
In case of change of pan motor or tilt motor or pan/tilt control PCB (RB 3138 in the xture yoke), you have to
run the procedure Calibrate Pan/Tilt Reset in the tab "Service" (tab Service--> Calibrations --> Calibrate Pan/
Tilt Reset).

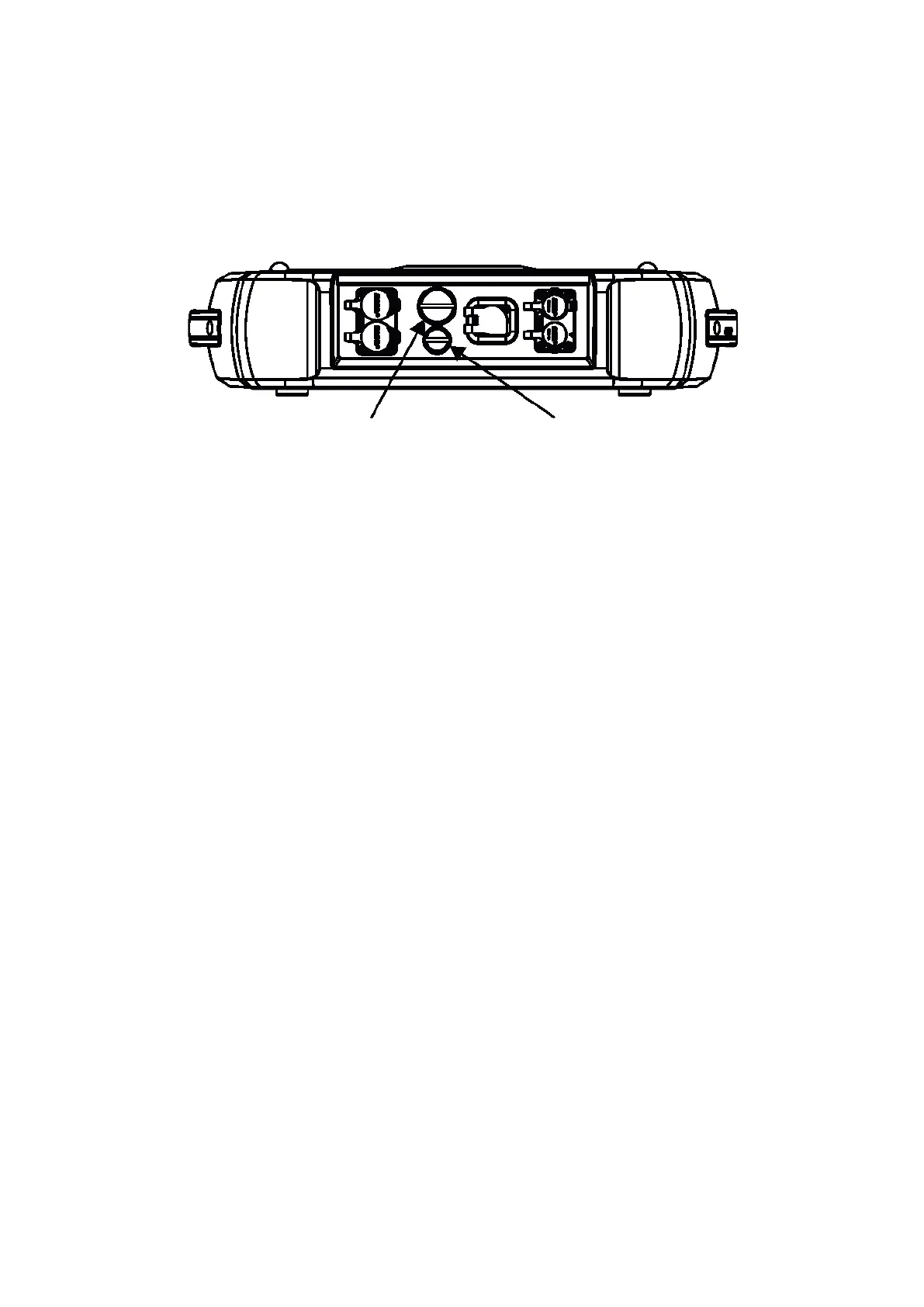

Cover of battery compartment
Cover of fuse compartment
