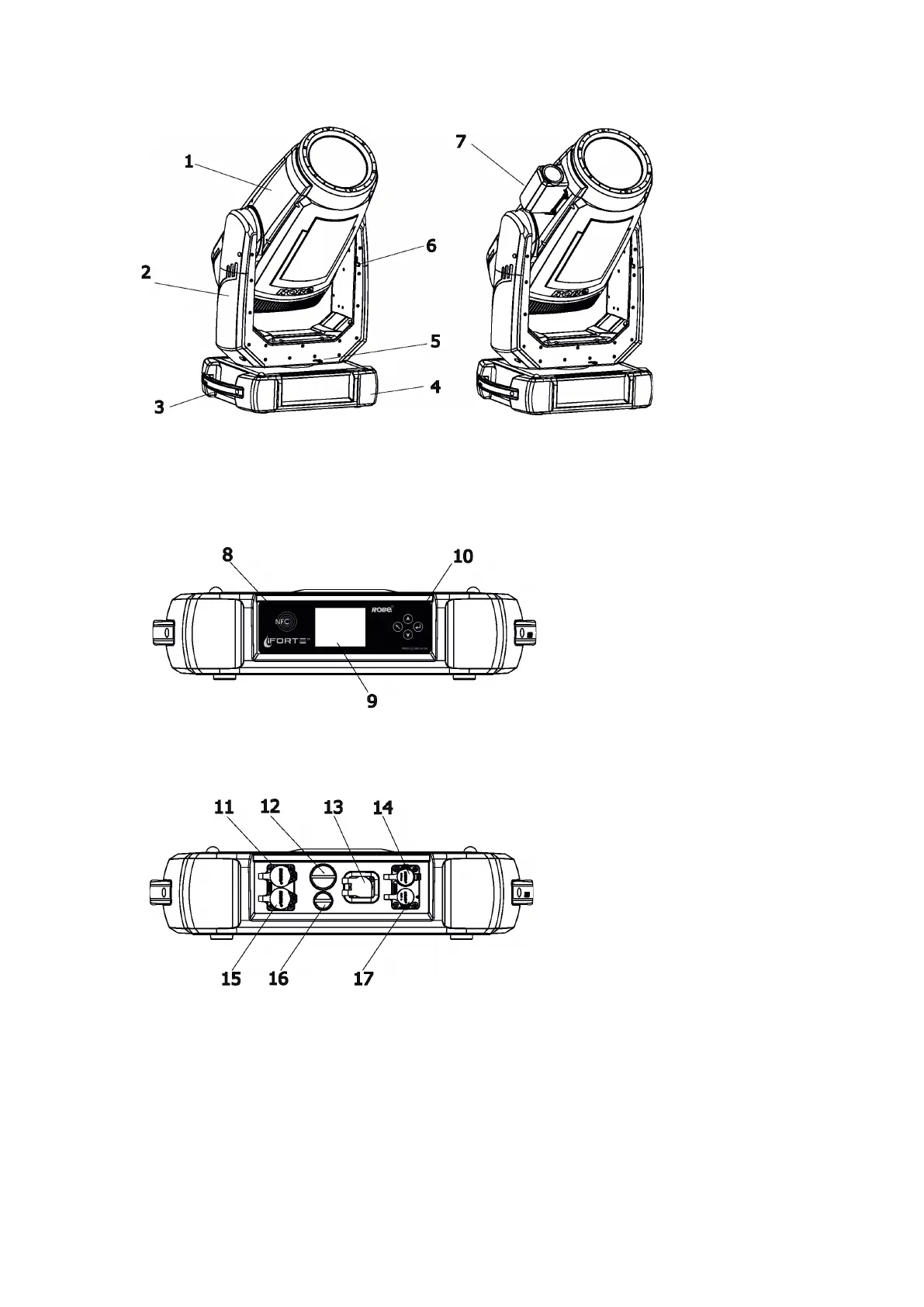

2. Fixture exterior view
The head has to be locked for transportation - the tilt lock latch (6) and the pan lock latch (5) have to be in the
locked positions. To unlock the head, move these latches to unlock position before operating the xture.
1 - Head
2 - Arm
3- Handle
4 - Base
5 - Pan lock
6 - Tilt lock
7 - Camera*
* iForte FS only
.
Rear panel of the base
11 - Ethernet out (RJ45)
Camera out (RJ45)*
12 - Cover of battery holder
13 - Power
14 - DMX out (5-pin XLR)
15 - Ethernet In (RJ45)
16 - Cover of fuse holder
17 - DMX in (5-pin XLR)
* iForte FS only
Front panel of the base:
8 - NFC point
9 - Display
10 - Control buttons
