9. Control menu
The Robin iPointe65 is equipped with the QVGA screen with battery backup and four control buttons which
allow you to set the xture´s behaviour according to your needs, obtain information on its operation, test its
various parts and program it, if it has to be used in a stand-alone mode.
The xture supports NFC (Near-Field Communication).

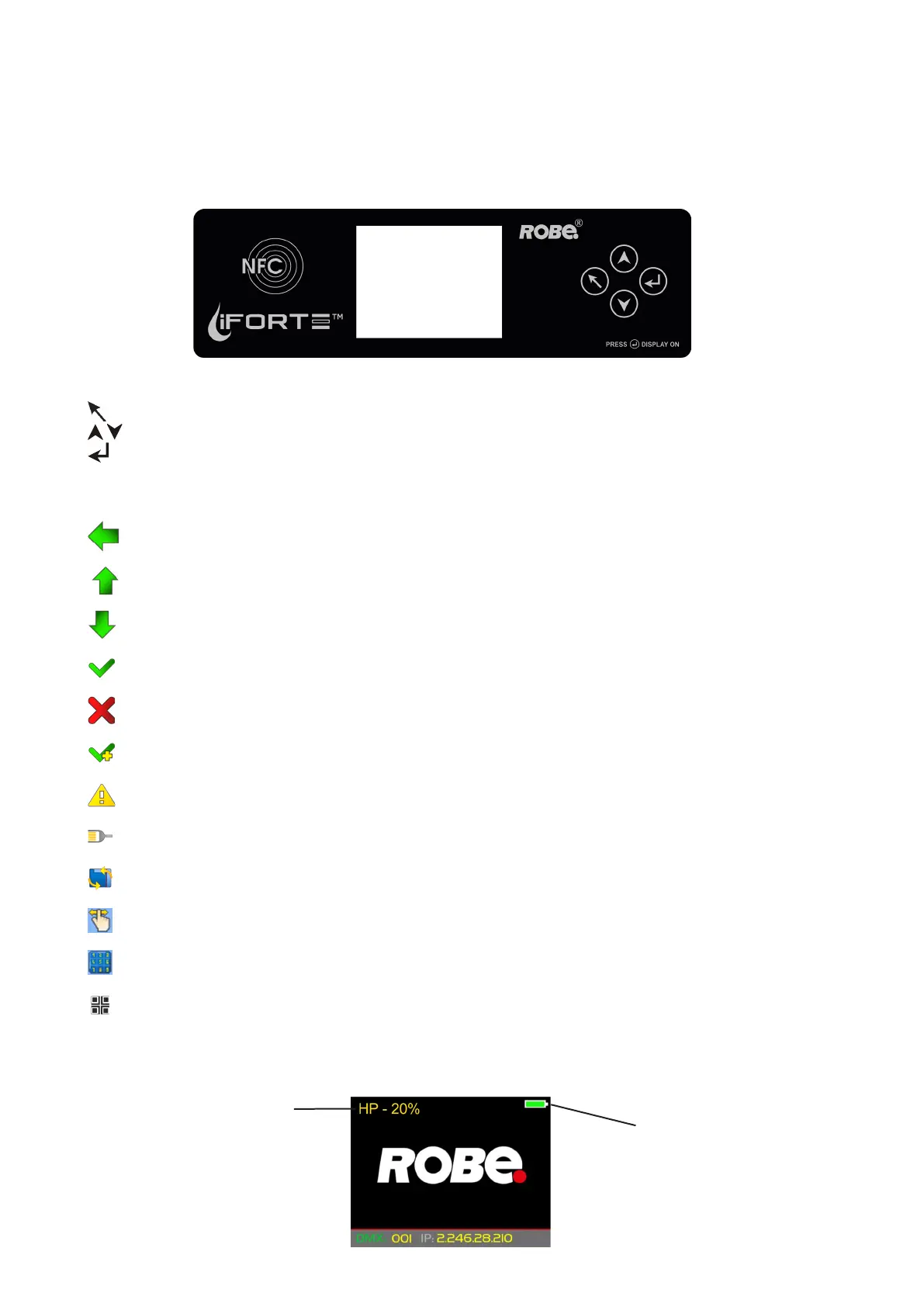

NFC interface and control buttons on the front panel
Control buttons on the front panel:
- [ESCAPE] button used to leave the menu without saving changes.
- [NEXT] , [PREV] buttons for moving between menu items and symbols, adjusting values.
- [ENTER/Display On] button used to enter the selected menu item and to conrm adjusted value.
If the xture is disconnected from mains, the button switches the screen on (for a while).
Icons used in the screen menu:
- [back arrow] used to move back to the previous screen (menu).
- [up arrow] used to move up on the previous page.
- [down arrow] used to move down on the next page.
- [conrm] used to save adjusted values, to leave menu or to perform desired action.
- [cancel] used to leave menu item without saving changes.
- [conrm+copy] used to save adjusted values and copy them to the next prog. step.
- [warning icon] used to indicate some error which has occurred in the xture.
- [Ethernet] used to indicate Ethernet connected.
- [menu rotation] used to rotate menu 180 degrees from current orientation.
- [slider control] used to recall slider system for setting desired value.
- [keyboard control] used to recall keyboard system for setting desired value.
- [QR code] used to show QR code for RDM UID of the xture and LED engine serial number.
The menu page displays icons for each function that you can perform from the screen.
After switching the xture on, the screen shows the screen with the ROBE logo.
Type of used LED engine in the xture is displayed on the top line of the screen.
Battery indication
HP-type of LED engine
used in the xture.
-20% is a drop of max. light
intensity set by the channel
"Max. light intensity indica-
tion and setting".
Note: drop 0-5% is not
signalized.
