Each silica gel box is fastened in the xture by means of two screws.
Example:

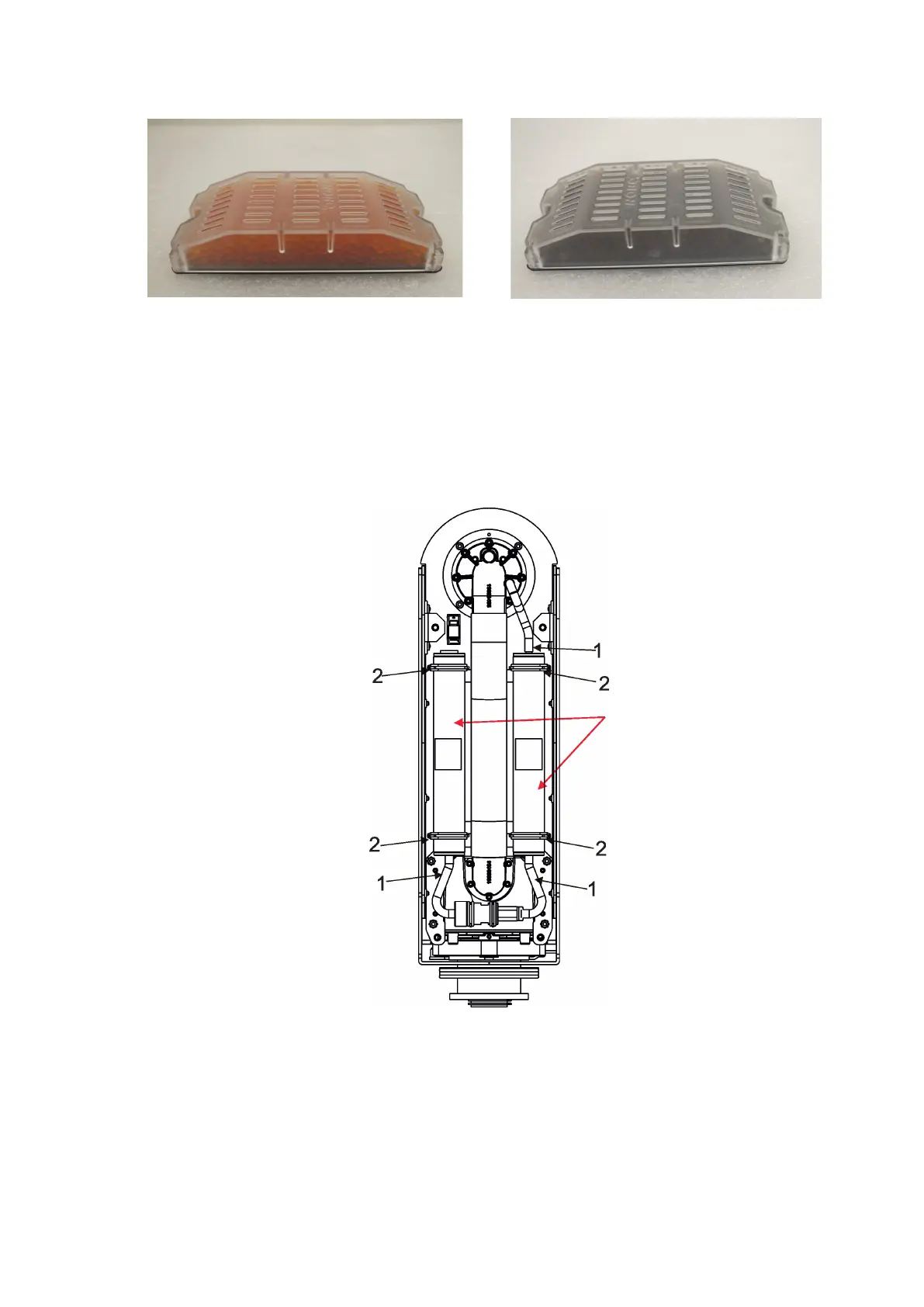

Dry silica gel Silica gel saturated with water
The silica gel desiccants in the xture head should be checked (and alternatively replaced) at removing head
covers, e.g. at gobos change.
The silica gel desiccants in the xture base should be checked (and alternatively replaced) at removing bottom
cover e.g. at service intervention.
After checking/replacing boxes with silica gel do not forget to connect grounding wire between chassis
and base cover (head cover) at placing the covers back.
After checking/replacing boxes with silica gel, run the procedure Pressure Test (Service -->Pressure
Test).
If the pressure test is not OK, check if all screws of head covers (base cover) are correctly tightened.
Fixture arm
To change the tube with silica gel:
1. Disconnect the xture from mains.
2. Remove the arm cover.
3. Disconnect the hosepipe(s) (1) from the tube with silica gel.
4. Stick out the rubber rings (2) and remove the tube with silica gel.
5. Insert the new tube with silica gel and secure it by means of the rubber rings (2).
6. Connect the hosepipe(s) (1) to the tube with silica gel.
7. Screw the arm cover back.
8. After connecting the xture to mains, reset the MAX WET chart (tab Information-->RAINS Status) and
run the procedure Pressure Test (tab Service -->Pressure Test).
If the pressure test failed, check if hose-pipes are correctly put on the tubes with silica gel.
Tubes with silica gel
