4.6. MACHINE FIXING
Once the units have been assembled and levels, squaring, parallelism and orthogonality have been checked, it is
necessary to fix the machine body to the floor.
Depending on the floor type, it may be necessary, before laying the machine, to lay foundations in correspondence of
the various supporting legs.
Laying the foundations and fixing the machine is essential to ensuring the machine stability and functionality.
Important

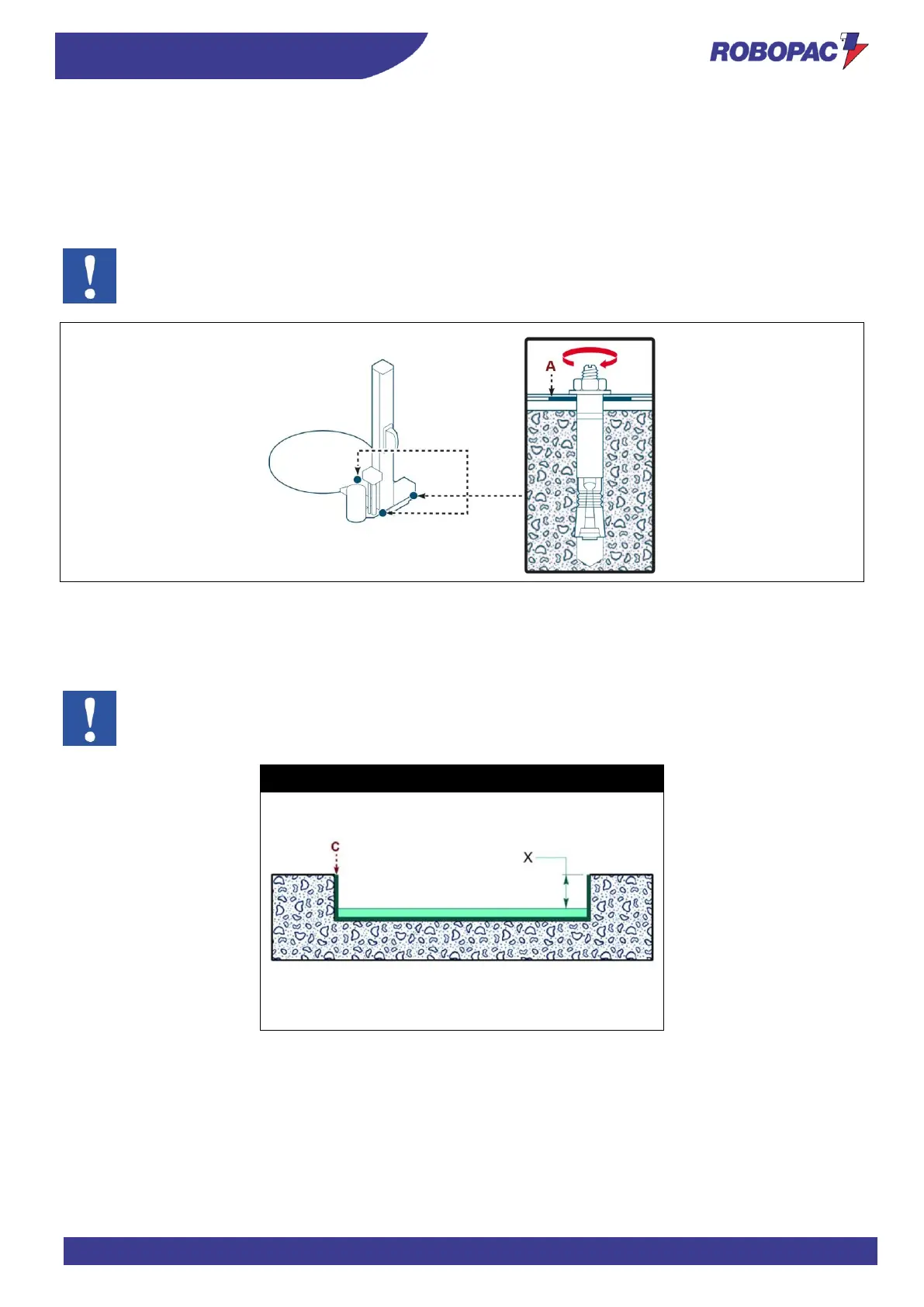

Should it be necessary, insert metal pates (A) between the screws and the floor.
4.7. MACHINE UNDERGROUND INSTALLATION
Dig a pitch in the floor to insert the template (C) and fix it with a concrete casting.
The template (C) is supplied on request (Optional).
Important
The depth (X) must be equal to the machine base height.
