Robopac ECOPLAT PLUS BASE - SPOOL CARRIAGES of FRD for Mesh TYPE

45
INFORMATION ON ADJUSTMENTS
ENG
5.2.2. SPOOL CARRIAGES OF "FRD for mesh" TYPE

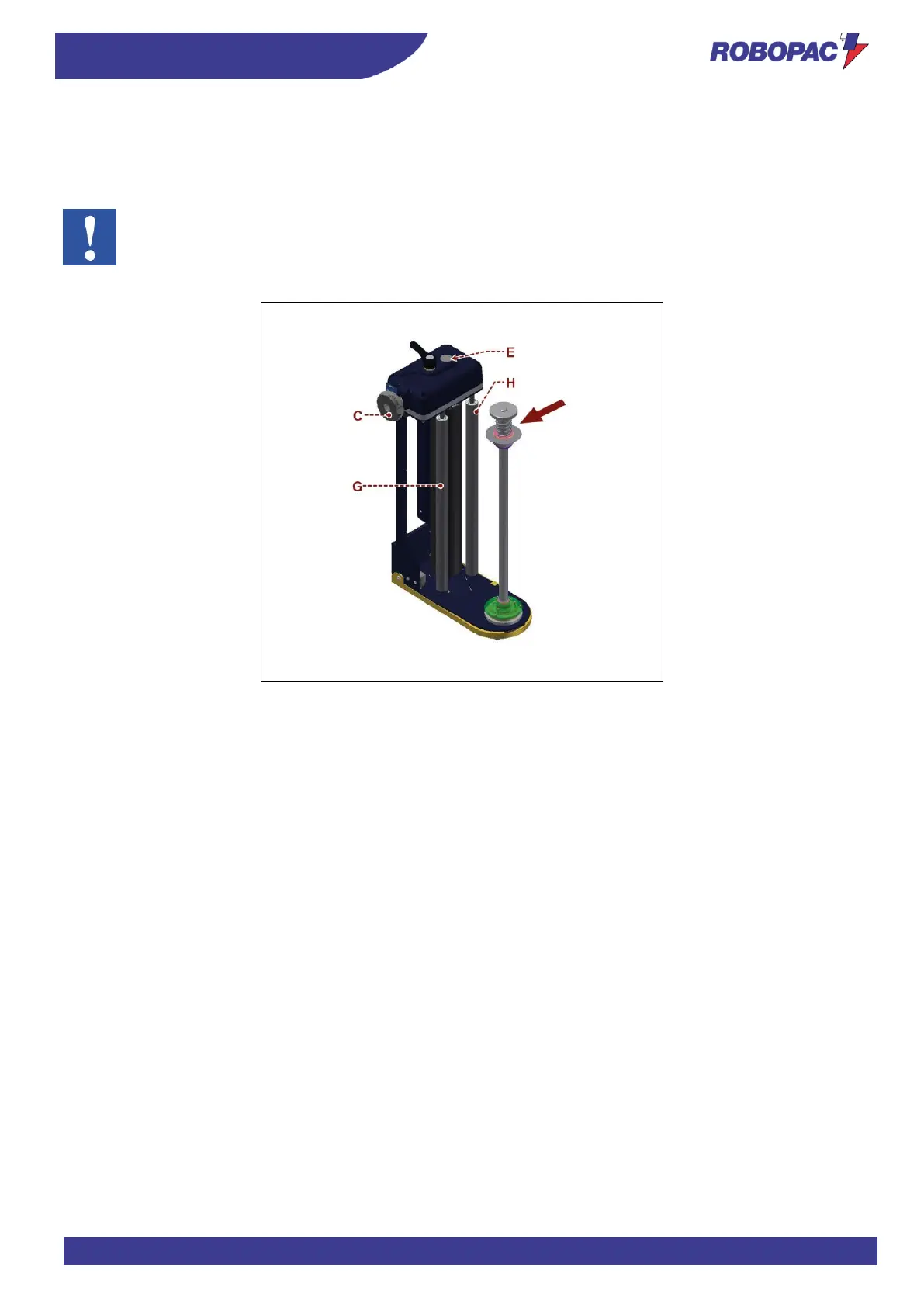

1. Work on the handwheel (C) until reaching the value displayed on the index (E).
The brake shaft for mesh is an accessory that can be mounted on the carriage later on.
This optional allows the system to use a mesh reel with a std “FRD” carriage.
Important
For a correct tensioning of the mesh, adjust the braking effect so that the outfeed roller (G) is more braked
than the infeed roller (H); moreover, it is necessary to avoid braking the stretching rollers too much to
prevent the mesh from slipping.
