Robopac ECOPLAT PLUS BASE - Spool Carriage Lifting Chain Adjustment; Rotary Table Chain Adjustment

ENG
INFORMATION ON ADJUSTMENTS
46

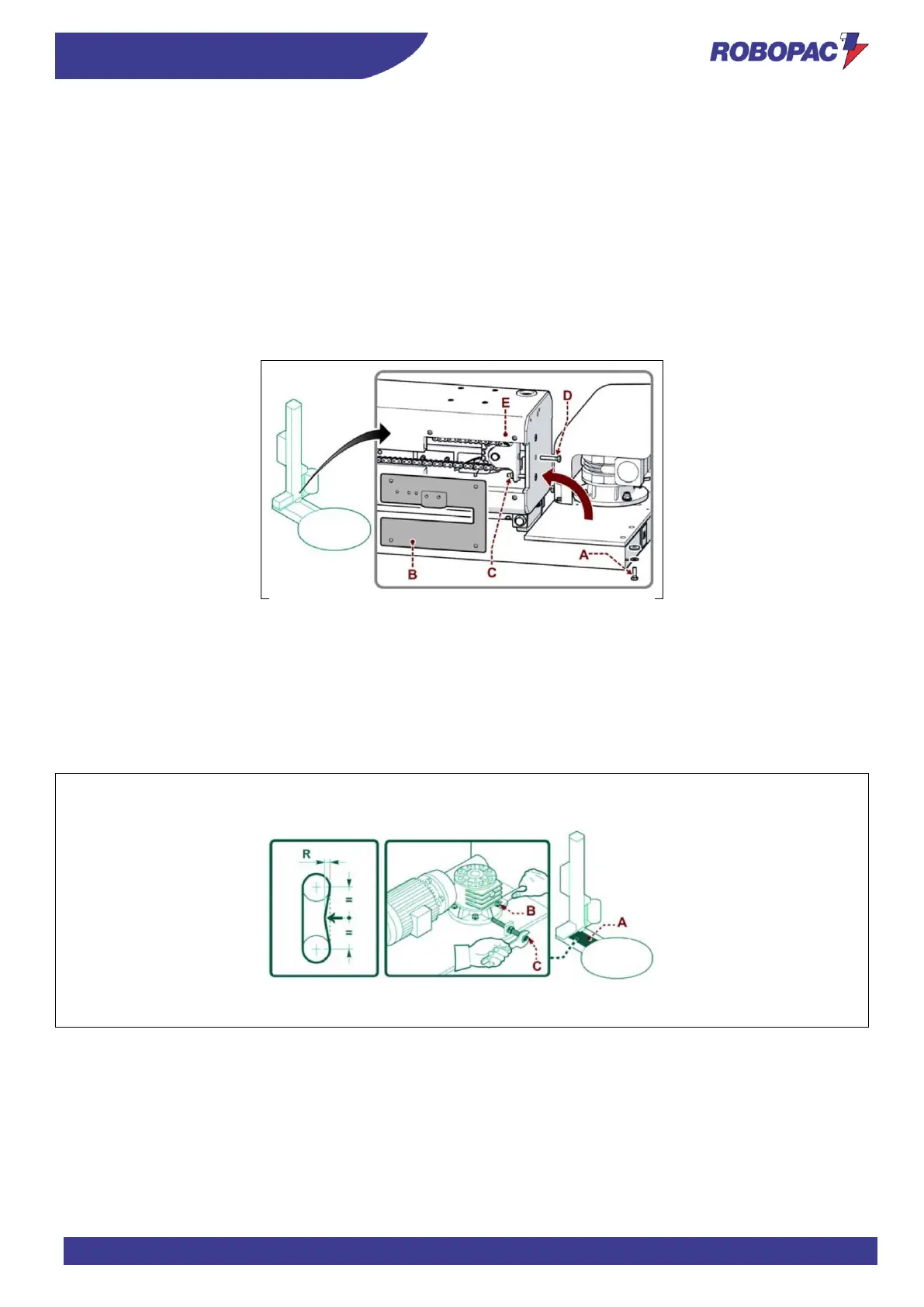

5.3. SPOOL CARRIAGE LIFTING CHAIN ADJUSTMENT
1. Lift the spool carriage (with the machine operating in “manual mode”) until it reaches the “upper” limit switch.
2. Switch the machine off.
3. Loosen the screws (A) and tilt the pole resting it on the plate.
4. Remove the guard (B).
5. Loosen the nuts (C).
6. Tighten the screw (D) "M8x50 UNI 5739" (not supplied) with a torque wrench (not supplied) to the torque of 3
Nm.
7. Screw the nuts (C) again until reaching the chain tensioner (E) level.
8. Loosen the screw (D).
9. Refit the guard (B).
10. Place the pole back in its vertical position and tighten the screws (A).
5.4. ROTARY TABLE CHAIN ADJUSTMENT
1. Remove the cover (A).
2. Loosen the fastening screws (B) of the reduction unit.
3. Tighten the screw (C) with a torque wrench (not supplied) to 5 Nm.
4. Tighten the reduction unit fastening screws (B) when adjustment is completed.
5. Refit the guard (A).
