3.9. “ROTOPLAT TP3 308-508-708" TECHNICAL DATA

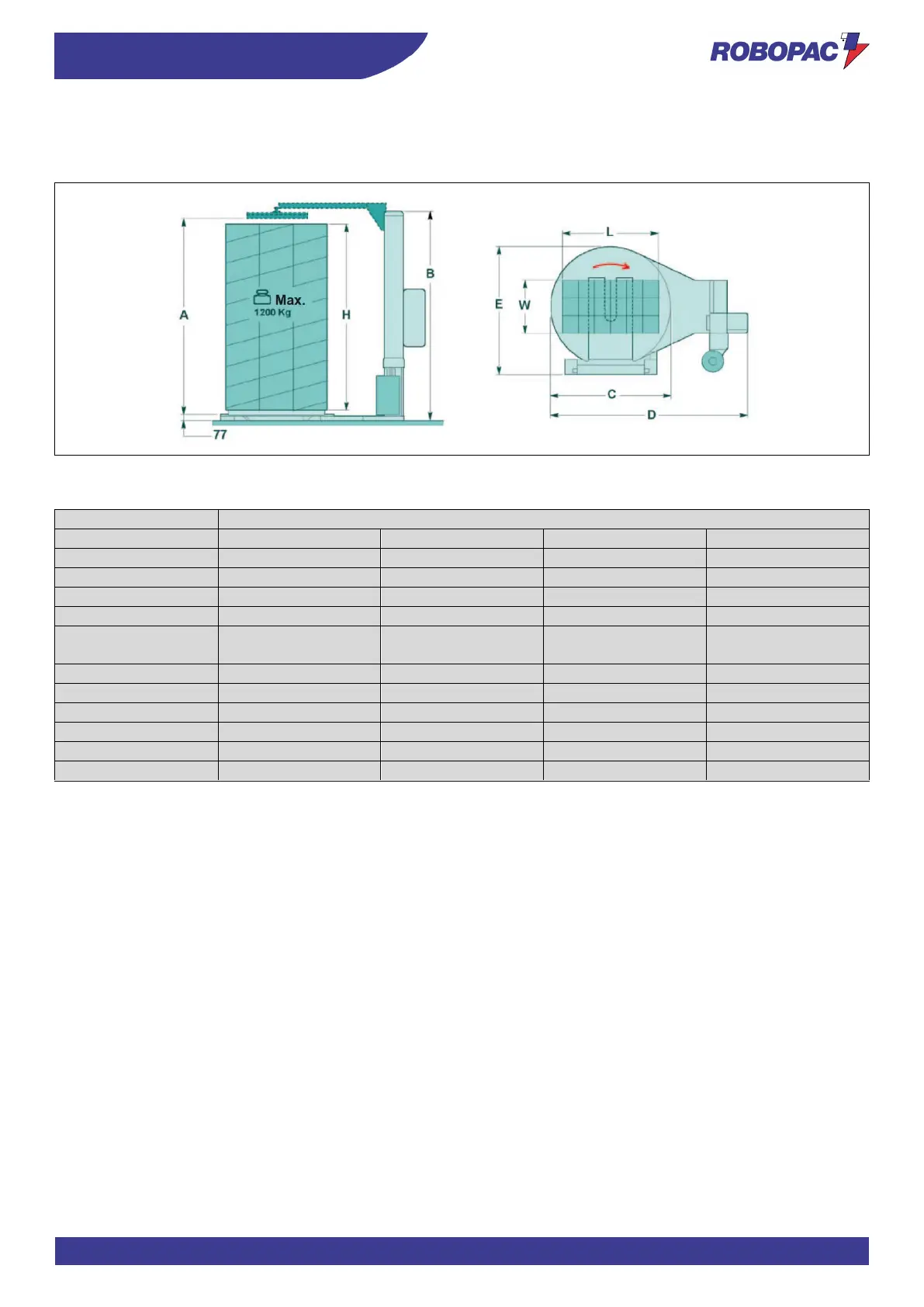

The illustration and the table include the machine dimensional specifications and technical data.
3.9.1. MACHINE AND PALLET DIMENSIONS
Description
Rotoplat TP3
Standard
Optional
Optional
Optional
Shaft height
A
2350
2550
2950
3250
H
2200
2400
2800
3100
B
2560
2760
3160
3460
Load overall
dimensions
 1650
 1800
-
-
C
1650
1800
2200
2400
D
2755
2835
3535
3635
E
2313
2313
2446
2546
L
1000
1200
1400
1400
W
1200
1200
1600
1600
Weight (kg)
2000
2000
2000
200
