Robopac ROTOPLAT 108-308-508-708 - 6.4. “HOME” PAGE

83
INFORMATION ABOUT THE USE
ENG

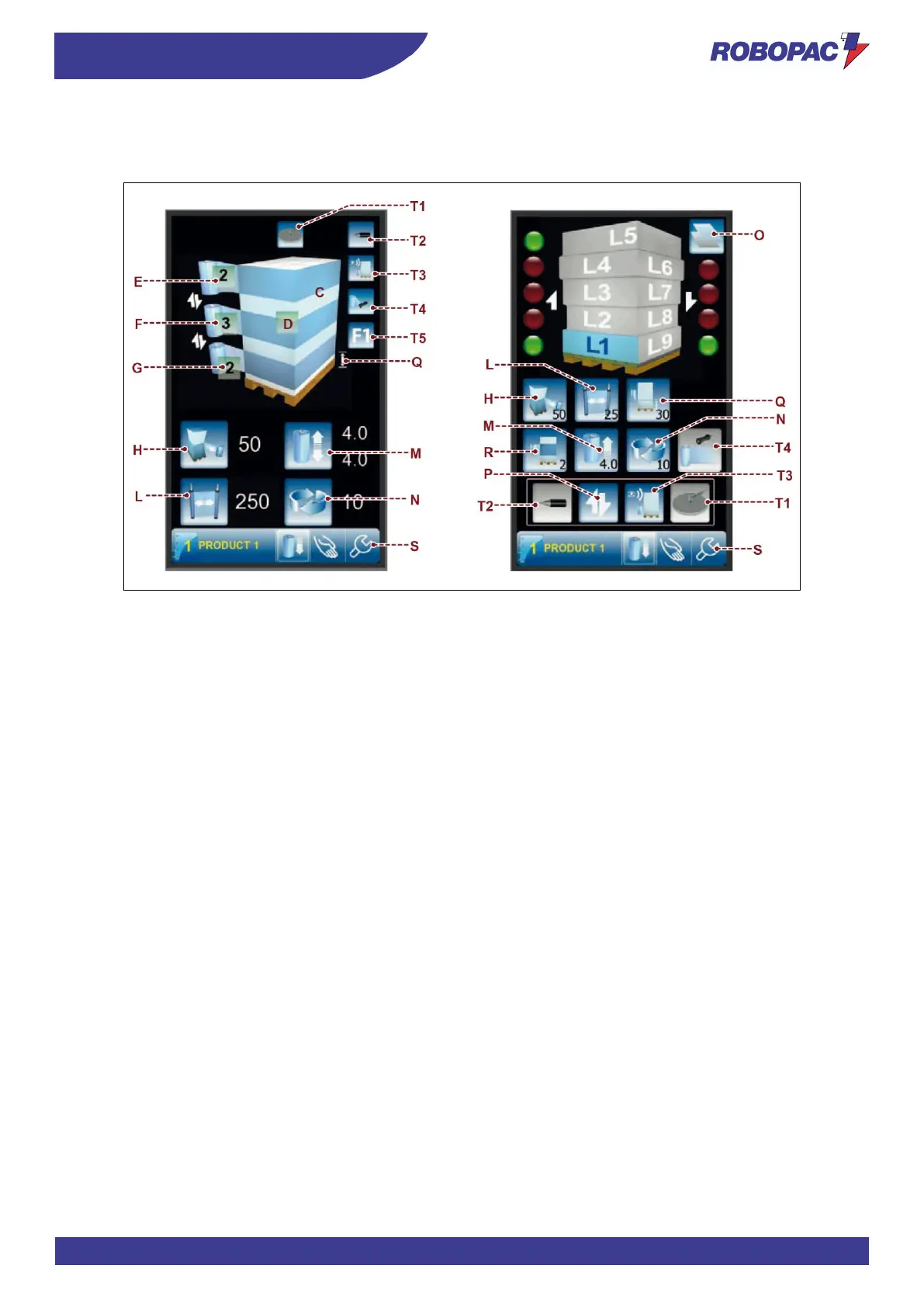

6.4. “HOME” PAGE
The page displays the wrapping values currently in use and gives access the other pages.
C) Area:
it displays the preview of the selected pallet wrapping cycle.
D) Button:
it is used to display the “wrapping cycle” page.
E) Button:
it is used to program the number of wrappings in the upper end of the pallet.
The displayed number indicates the programmed value.
F) Button:
it is used to program the number of reinforcing wrappings in the intermediate area of the pallet.
The displayed number indicates the programmed value.
G) Button:
it is used to program the number of wrappings at the base of the pallet.
The displayed number indicates the programmed value.
H) Button:
it is used to program the film stretch value.
The displayed number indicates the programmed value.
L) Button:
it is used to program the film pre-stretch value (only for “PDS” - “PVS” carriages).
The displayed number indicates the programmed value.
M) Button:
it is used to program the speed of the carriage vertical movement.
The displayed number indicates the programmed value.
N) Button:
it is used to program the machine wrapping speed.
The displayed number indicates the programmed value.
O) Button:
it is used to copy the data from one layer to another.
P) Wrapping cycle.
Q) Distance from the ground at wrapping start.
R) Reinforcing wrapping programming.
