5.2.2. SPOOL CARRIAGES OF "FR for mesh" TYPE
1. Press the stretching button (See “6.4”) until reaching the value required.
The brake shaft for mesh is an accessory that can be mounted on the carriage later on.
This option allows the system to use a mesh spool with an “FR” std carriage.
Important

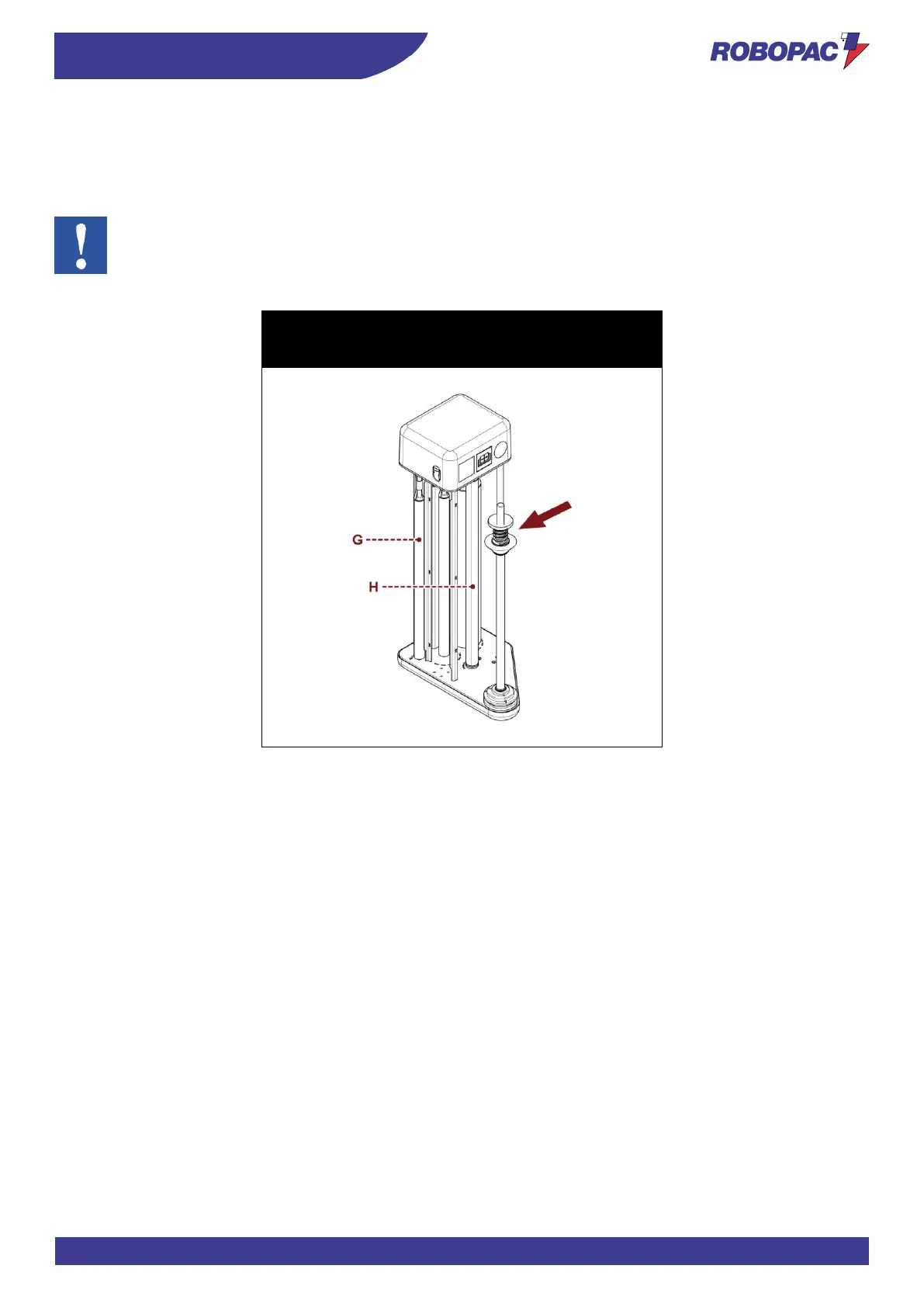

For a correct tensioning of the mesh, adjust the braking effect so that the outfeed roller (G) is more braked
than the infeed roller (H); moreover, it is necessary to avoid braking the stretching rollers too much to
prevent the mesh from slipping.
