4.5.7. MECHANICAL PRESSER ASSEMBLY (OPTIONAL)

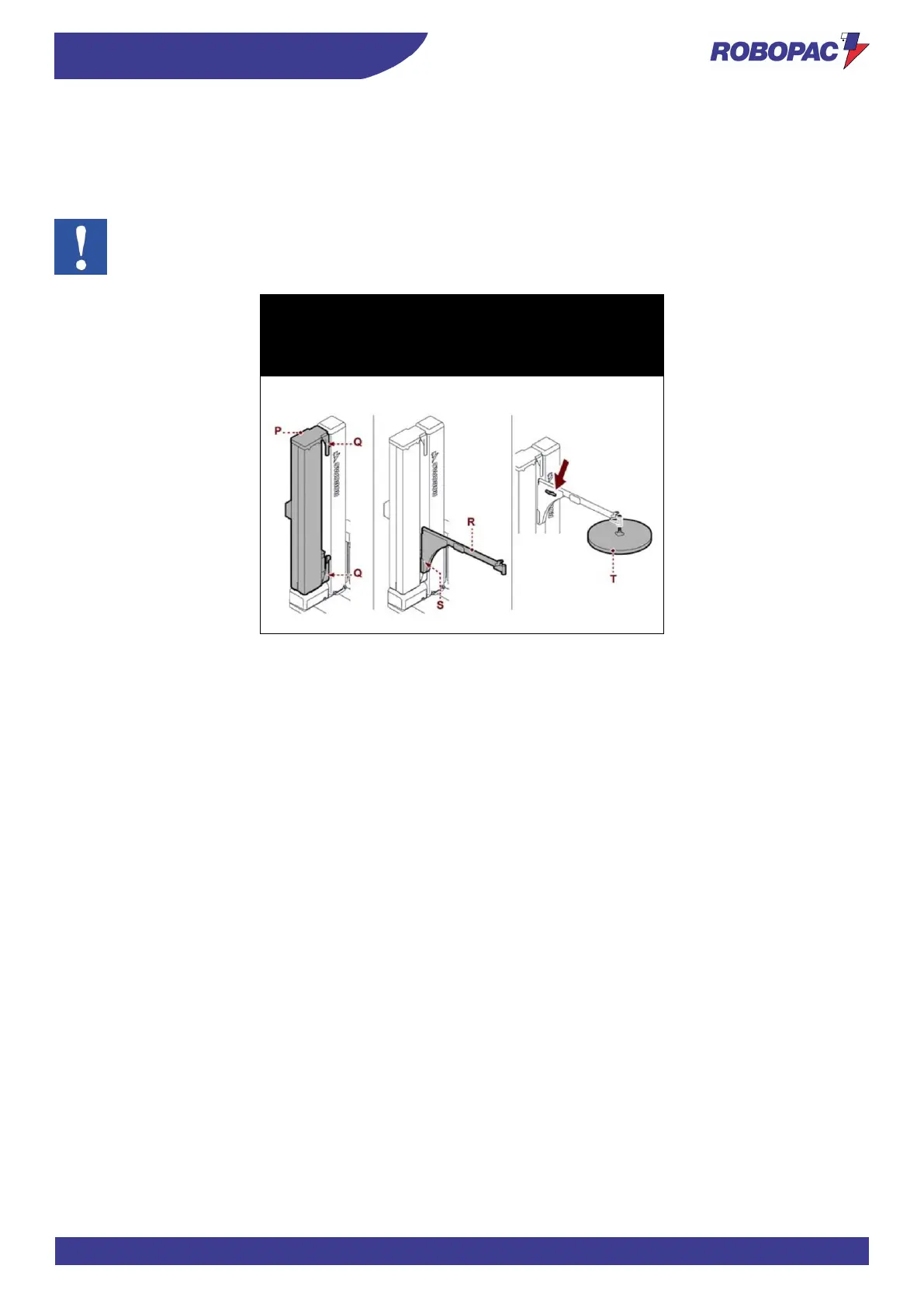

1. Fasten the guide (P) to the slide shaft with the suitable screws (Q).
2. Fit the arm (R) on the guide and fasten it with the screws (S).
3. Fit the presser plate (T) on the arm.
Important
The connections have already been performed by the Manufacturer if the presser is delivered with the
machine.
Rotoplat 308-508-708
Rotoplat LP 308-508-708
Rotoplat TP3 308-508-708
