Robopac ROTOPLAT 108-308-508-708 - 5.7. ADJUSTING THE TABLE GUIDE WHEELS; 5.8. “BUBBLE WRAP” SPOOL BRAKING ADJUSTMENT

75
INFORMATION ON ADJUSTMENTS
ENG

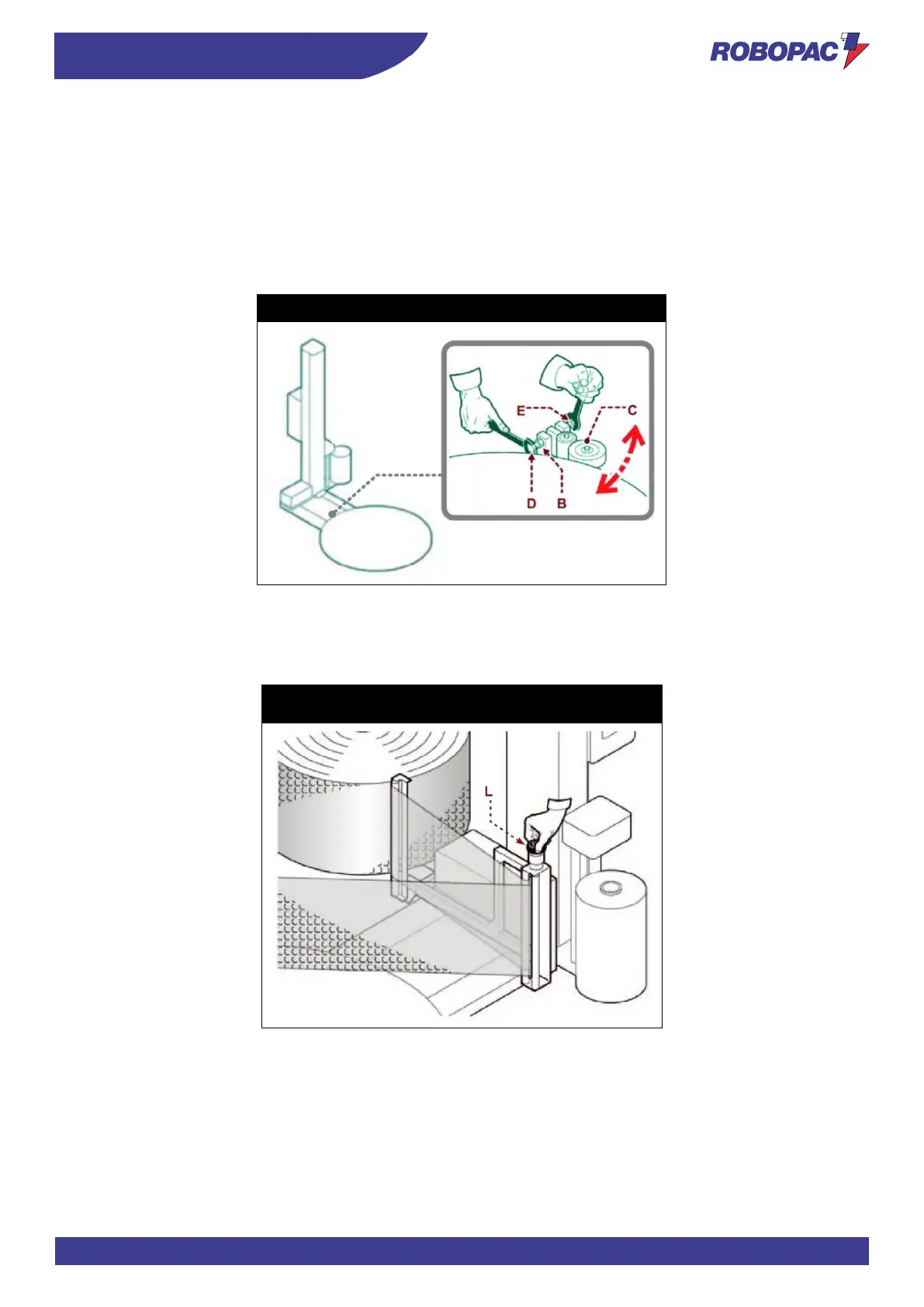

5.7. ADJUSTING THE TABLE GUIDE WHEELS
1. Remove the cover (A).
2. Loosen the fastening nuts (B).
3. Loosen the screw (E).
4. Tighten the screw (D) so that the wheel (C) is pressed against the rotary plate by approximately 4 mm.
5. Tighten the screw (E).
6. Tighten the nuts (B).
7. Refit the guard (A).
Rotoplat TP3 308-508-708
5.8. “BUBBLE WRAP” SPOOL BRAKING ADJUSTMENT
1. To tension the film correctly, work on the handwheel (L) which adjusts the spool braking.
Rotoplat 108-308-508-708
“BUBBLE WRAP”
