INFORMATION ON HANDLING AND INSTALLATION
ENG
4.5.6. “BUBBLE WRAP” KIT ASSEMBLY (OPTIONAL)

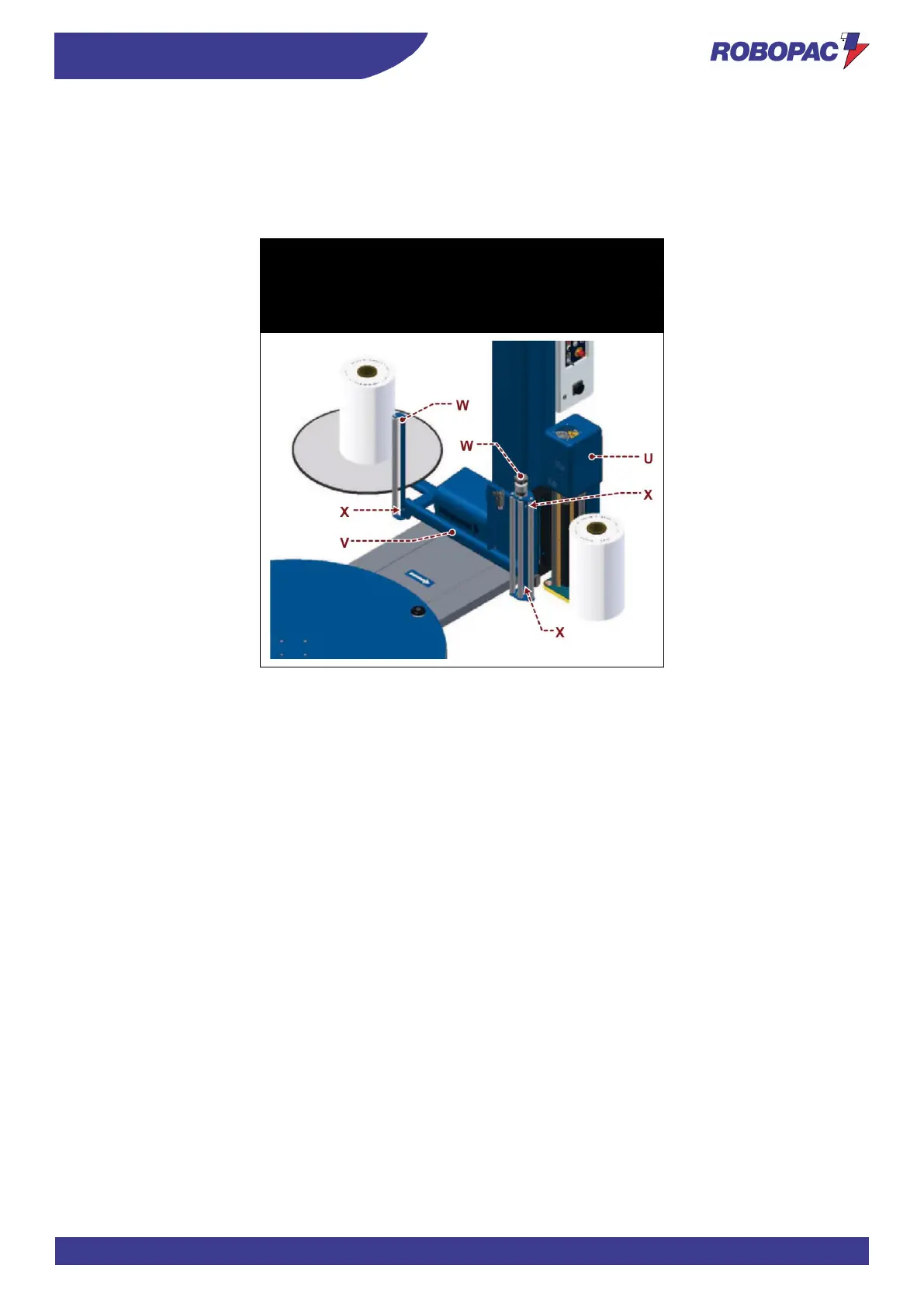

1. Remove the spool carriage (U).
2. Fit the frame (V) on the slide shaft.
3. Fit the rollers (W) on the frame (V) with the suitable screws (X).
4. Fit the spool carriage on the frame (V).
Rotoplat 308-508-708 “PLURIBALL”
Rotoplat LP 308FR-508PDS-708PVS “PLURIBALL”
Rotoplat TP3 308-508-708 “PLURIBALL”
