Robustel GoRugged R2000 User Manual

Robustel GoRugged R2000 User Guide
RT_UG_R2000_v.1.2.0 15.12.2015 51 /120
Confidential

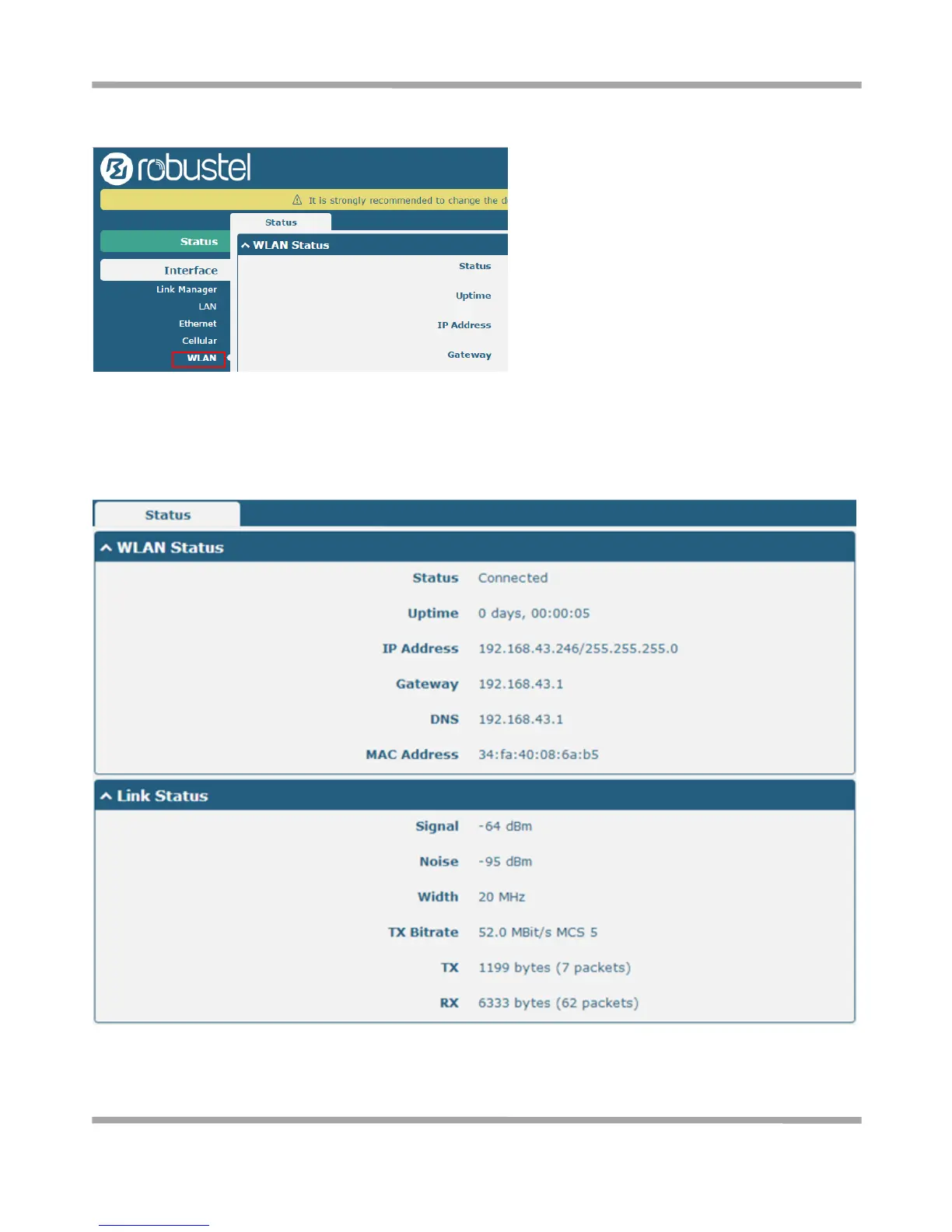

After R2000 was configured successfully as a WiFi client, there will appear a WLAN tab in the Interface menu, just as
the screenshot below.
Configure the WiFi AP please go to the Link Manager->WLAN tab, and the way of configuration refer to the 3.6
Interface->Link Manager section.
This section allows user to check the WLAN connection status. It includes WLAN status, Link status and WPA status.

Robustel GoRugged R2000 Specifications

General

Model	GoRugged R2000
Category	Network Router
Ethernet Ports	2 x 10/100 Mbps
SIM Slots	2
Power Supply	9-36 VDC
USB Port	1 x USB 2.0
Cellular Connectivity	4G LTE, 3G
VPN Support	IPsec, OpenVPN, GRE
Operating Temperature	-40°C to +75°C
WiFi	802.11 b/g/n
Serial Interface	RS232/RS485
GPS	Yes
Firewall	SPI Firewall
Digital Input/Output	2 x DI
