Robustel GoRugged R2000 User Manual

Robustel GoRugged R2000 User Guide
RT_UG_R2000_v.1.2.0 15.12.2015 10 /120
Confidential

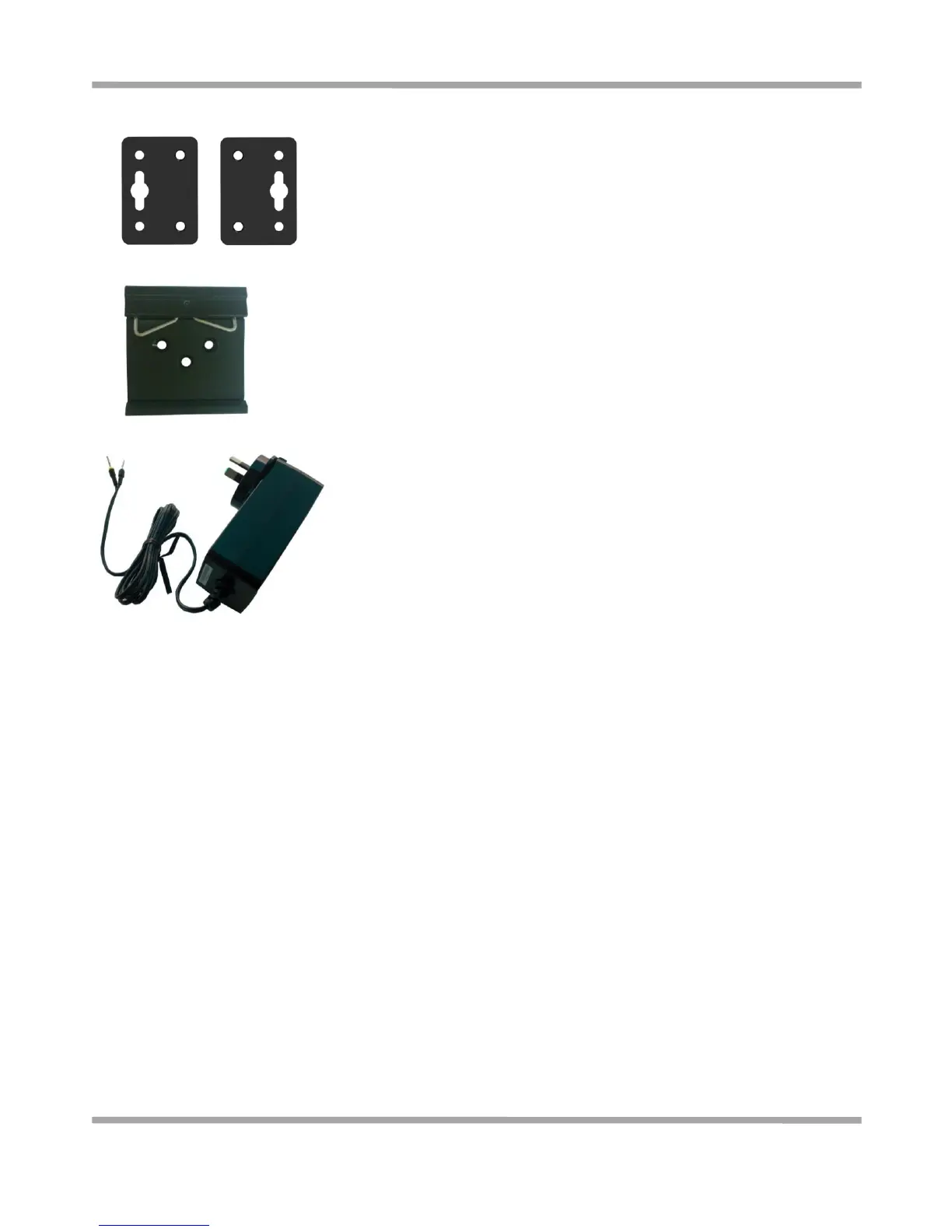

 Wall Mounting Kit x2
 35mm Din-Rail mounting kit
 AC/DC Power Supply Adapter (12VDC, 1.5A) x 1 (EU, US, UK, AU plug optional)
1.3 Specifications
Cellular Interface
 Standards: GSM/GPRS/EDGE/UMTS/HSPA+/FDD LTE
 FDD LTE: max. 150/50 Mbps (DL/UL)
 TDD LTE: max.112/10 Mbps (DL/UL)
 DC-HSPA+: 42/5.76 Mbps (DL/UL)
 HSPA+: max. 21.6/5.76 Mbps (DL/UL)
 EDGE: 236.8 kbps (DL/UL)
 GPRS: 85.6 kbps (DL/UL)
 SIM: 2 x (3V & 1.8V)
 Antenna Interface: SMA Female(1xMAIN and 1xAUX)

Robustel GoRugged R2000 Specifications

General

Model	GoRugged R2000
Category	Network Router
Ethernet Ports	2 x 10/100 Mbps
SIM Slots	2
Power Supply	9-36 VDC
USB Port	1 x USB 2.0
Cellular Connectivity	4G LTE, 3G
VPN Support	IPsec, OpenVPN, GRE
Operating Temperature	-40°C to +75°C
WiFi	802.11 b/g/n
Serial Interface	RS232/RS485
GPS	Yes
Firewall	SPI Firewall
Digital Input/Output	2 x DI
