Robustel GoRugged R2000 User Manual

Robustel GoRugged R2000 User Guide
RT_UG_R2000_v.1.2.0 15.12.2015 54 /120
Confidential
3.13 Network->Firewall
This section allows users to set the Firewall and the related parameters, which includes “Filter”, “Port Mapping” and
“DMZ”.

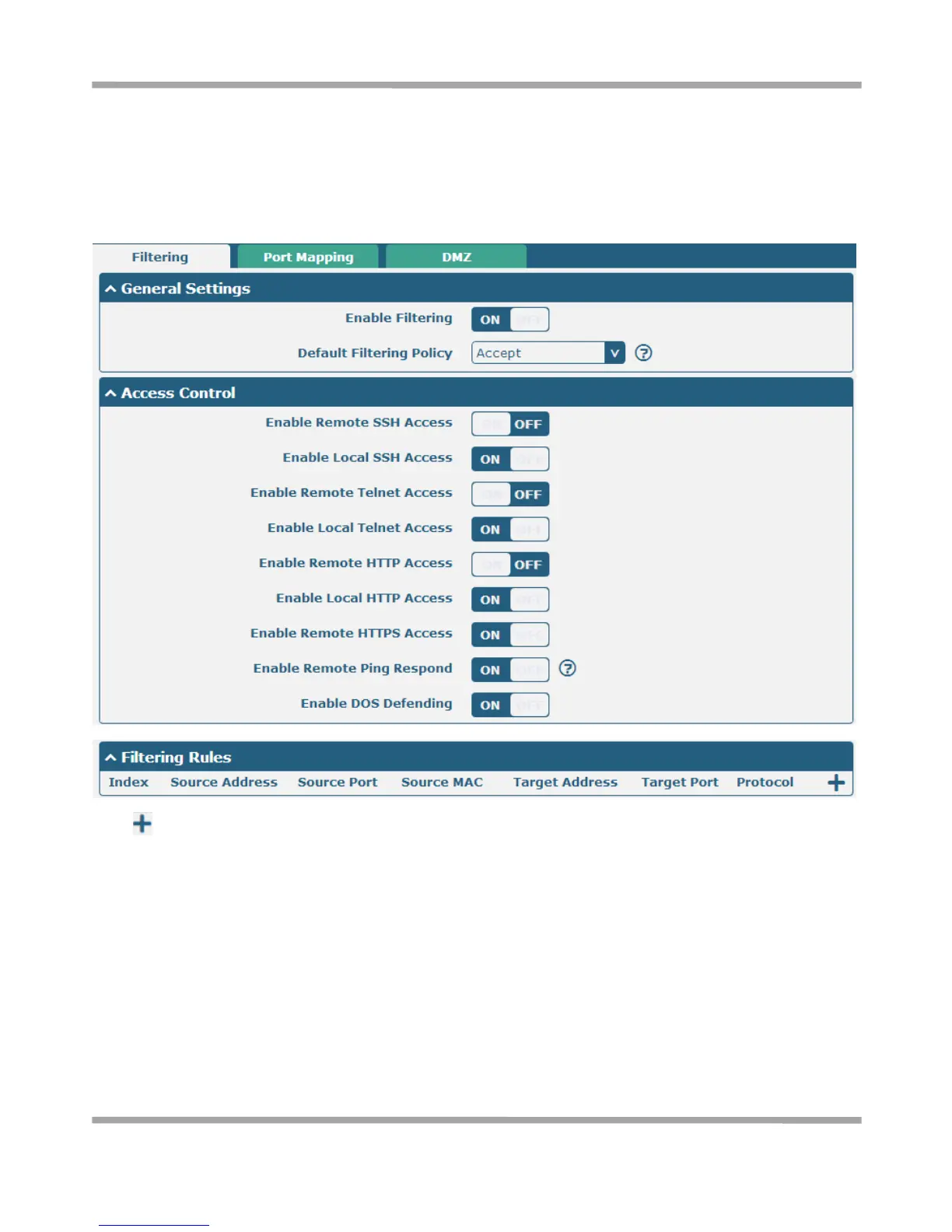

Filtering
Click “ ” to add filtering rules. (The maximum number of the filtering rule is twenty.)

Robustel GoRugged R2000 Specifications

General

Model	GoRugged R2000
Category	Network Router
Ethernet Ports	2 x 10/100 Mbps
SIM Slots	2
Power Supply	9-36 VDC
USB Port	1 x USB 2.0
Cellular Connectivity	4G LTE, 3G
VPN Support	IPsec, OpenVPN, GRE
Operating Temperature	-40°C to +75°C
WiFi	802.11 b/g/n
Serial Interface	RS232/RS485
GPS	Yes
Firewall	SPI Firewall
Digital Input/Output	2 x DI
