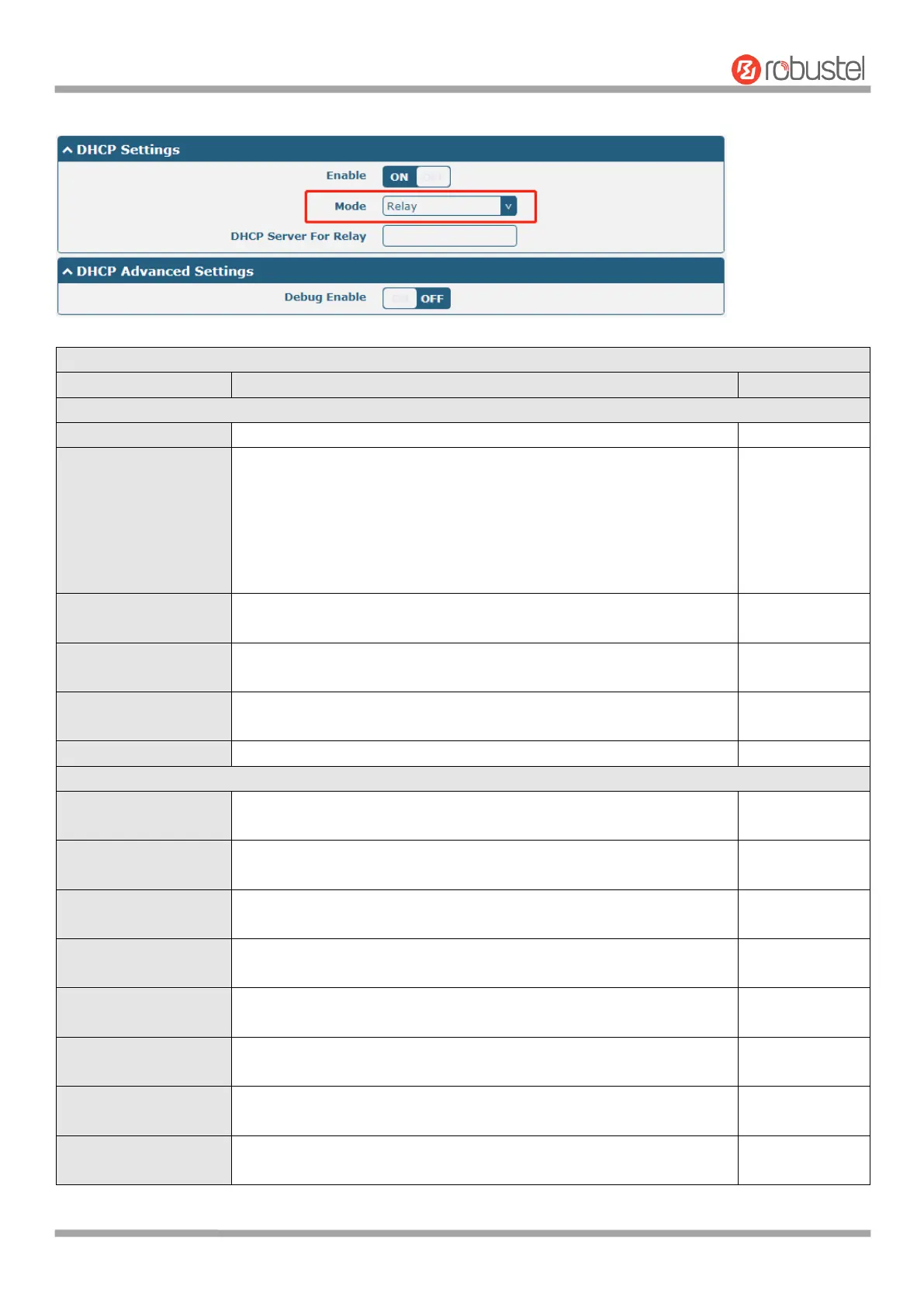

The window is displayed as below when choosing “Relay” as the mode.
LAN
Item
Description
Default
DHCP Settings
Enable
Click the toggle button to enable/disable the DHCP function.
ON
Mode
Select the mode of DHCP from “Server” or “Relay”.
 Server: Lease IP address to DHCP clients which have been
connected to LAN port
 Relay: Router can be DHCP Relay, which will provide a relay
tunnel to solve problem that DHCP Client and DHCP Server is not
in a same subnet
Server
IP Pool Start
Define the beginning of the pool of IP addresses which will be leased
to DHCP clients.
192.168.0.2
IP Pool End
Define the end of the pool of IP addresses which will be leased to
DHCP clients.
192.168.0.100
Subnet Mask
Define the subnet mask of IP address obtained by DHCP clients from
DHCP server.
255.255.255.0
DHCP Server for Relay
Enter the IP address of DHCP relay server.
Null
DHCP Advanced Settings
Gateway
Define the gateway assigned by the DHCP server to the clients, which
must be on the same network segment with DHCP address pool.
Null
Primary DNS
Define the primary DNS server assigned by the DHCP server to the
clients.
Null
Secondary DNS
Define the secondary DNS server assigned by the DHCP server to the
clients.
Null
WINS Server
Define the Windows Internet Naming Service obtained by DHCP
clients from DHCP sever.
Null
Lease Time
Set the lease time which the client can use the IP address obtained
from DHCP server, measured in seconds.
120
Static lease
Bind a lease to correspond an IP address via a MAC address.
format: mac,ip;mac,ip;..., e.g. FF:ED:CB:A0:98:01,192.168.0.200
Null
Expert Options
Enter some other options of DHCP server in this field.
format: config-desc;config-desc, e.g. log-dhcp;quiet-dhcp
Null
Debug Enable
Click the toggle button to enable/disable this option. Enable for DHCP
information output.
OFF
