4.2.3 GRE VPN

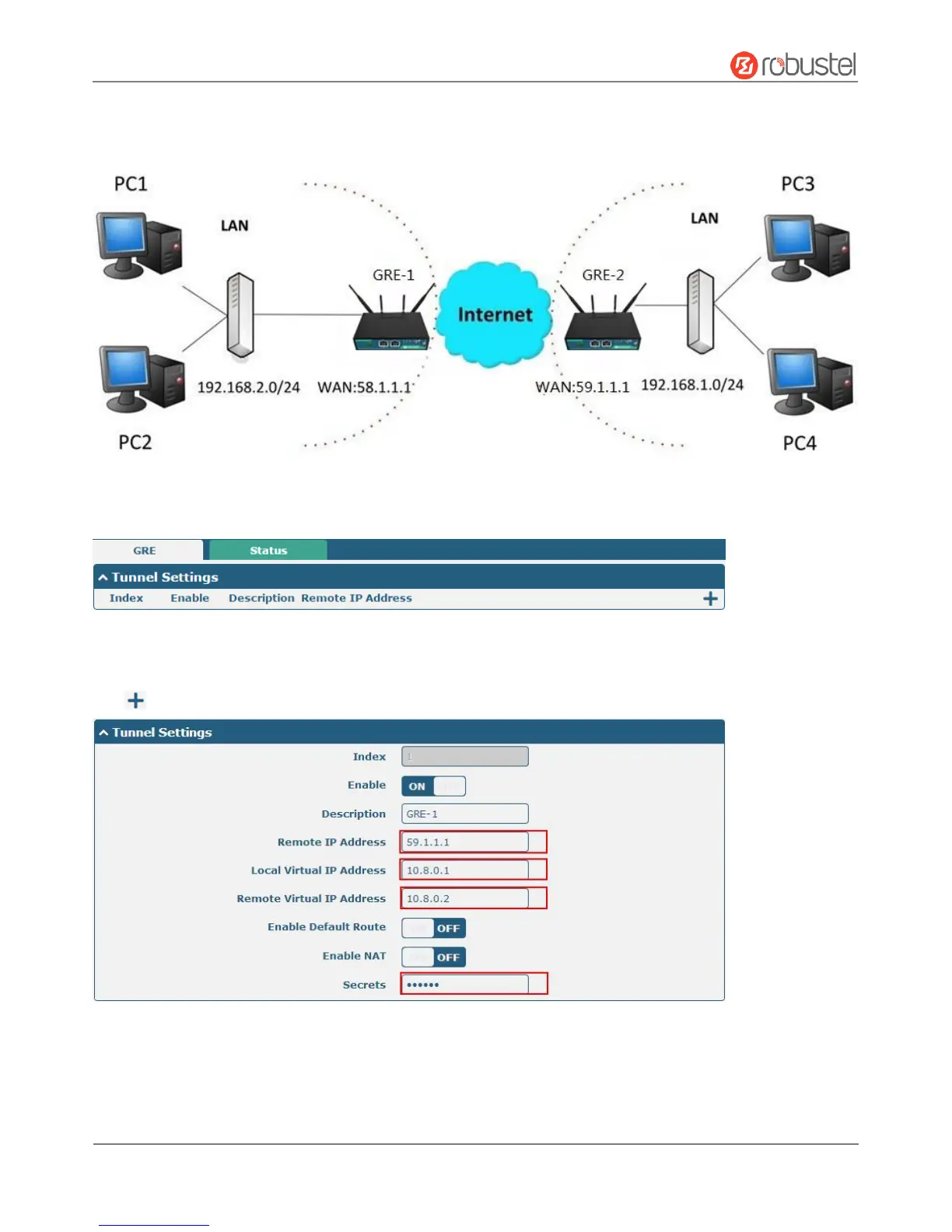

The configuration of two points is as follows.
The window is displayed as below by clicking VPN > GRE > GRE.
GRE-1
：
Click button and set the parameters of GRE-1 as below.
When finished, click Submit > Save & Apply for the configuration to take effect.
