RT_UG_R2000_v.3.0.0 July 24, 2017 105 / 124
Confidential
admin:admin;reboot
In this command, username is “admin”, password is “admin”, and the command is to reboot the Router.
SMS received:
OK
admin:admin;set firewall remote_ssh_access false;set firewall remote_telnet_access false
In this command, username is “admin”, password is “admin”, and the command is to disable the remote_ssh
and remote_telnet access.
SMS received:
OK
OK
admin:admin; set lan network 1 interface lan0;set lan network 1 ip 172.16.99.11;set lan network 1 netmask
255.255.0.0;set lan network 1 mtu 1500
In this command, username is “admin”, password is “admin”, and the commands is to configure the LAN
parameter.
SMS received:
OK
OK
OK
OK
4.2 Network
4.2.1 IPsec VPN

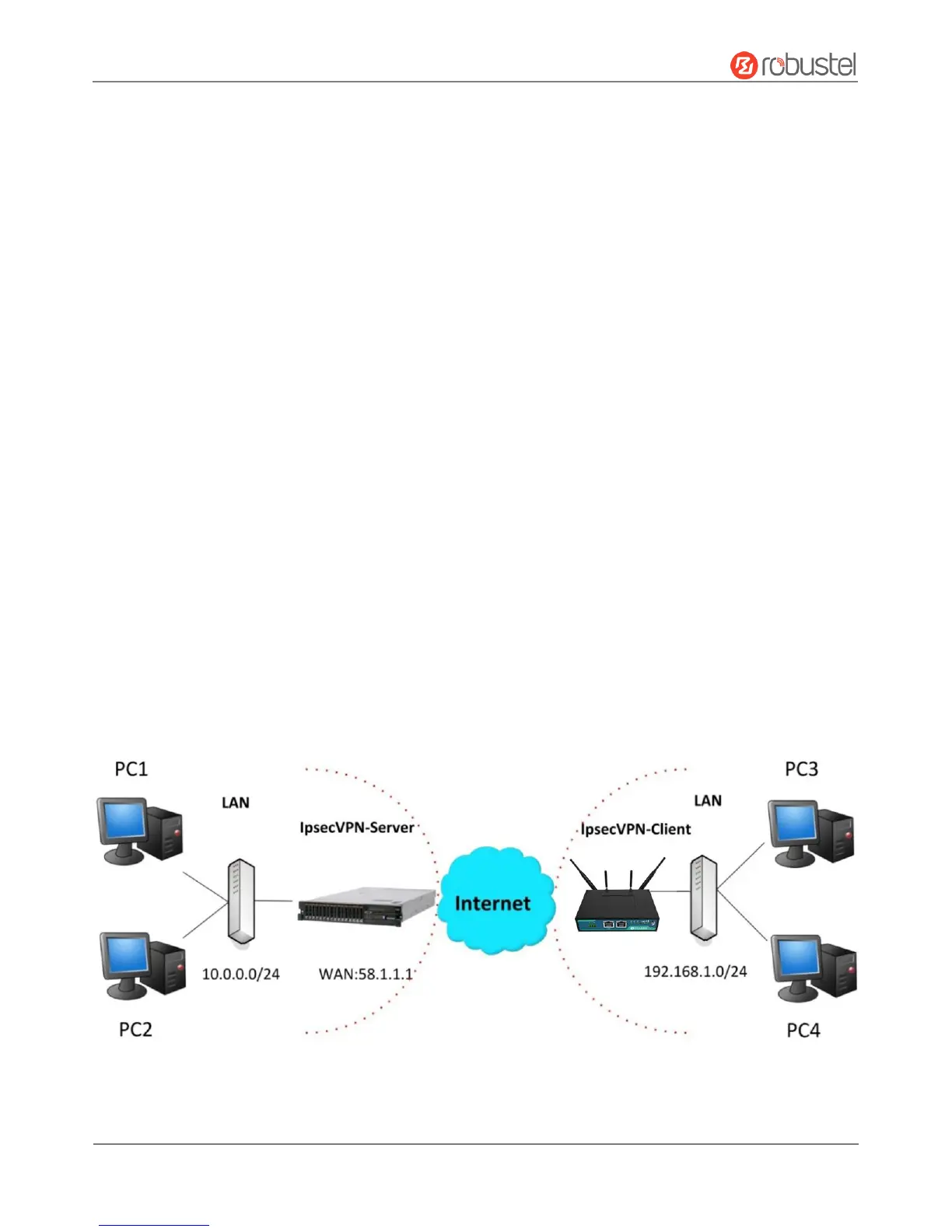

The configuration of server and client is as follows.
