2.7 Mount the Router
The router can be placed on a desktop or mounted to a wall or a 35 mm DIN rail.

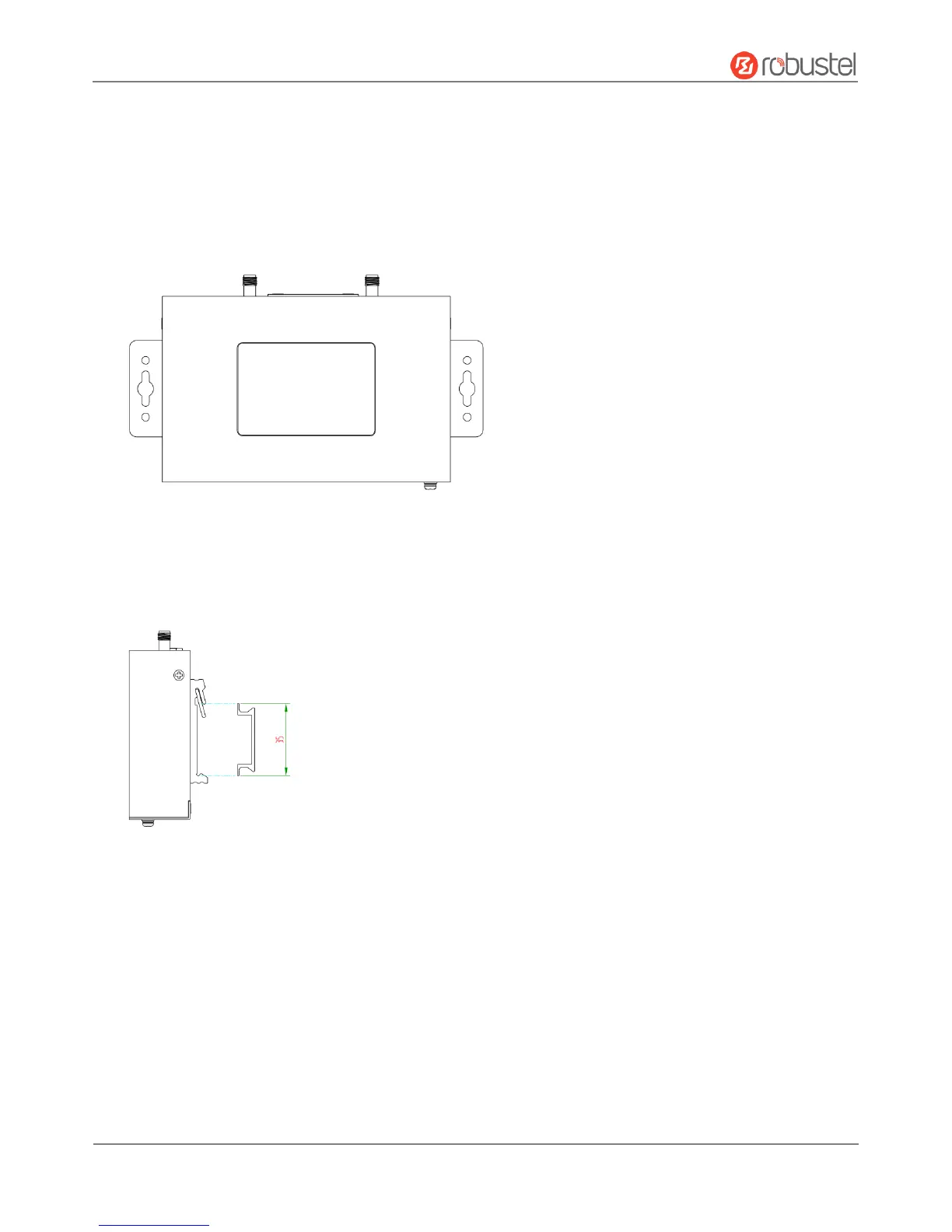

Two methods for mounting the router
1. Wall mounting (measured in mm)
Use 4 pcs of M2.5*4 flat head Phillips screws to fix the wall mounting kit to the router, and then use 2 pcs of M3
drywall screws to mount the router associated with the wall mounting kit on the wall.
Note: Recommended torque for mounting is 0.5 N.m, and the maximum allowed is 0.7 N.m.
2. DIN rail mounting (measured in mm)
Use 3 pcs of M3*6 flat head Phillips screws to fix the DIN rail to the router, and then hang the DIN rail on the
mounting bracket. It is necessary to choose a standard bracket.
Note: Recommended torque for mounting is 1.0 N.m, and the maximum allowed is 1.2 N.m.
