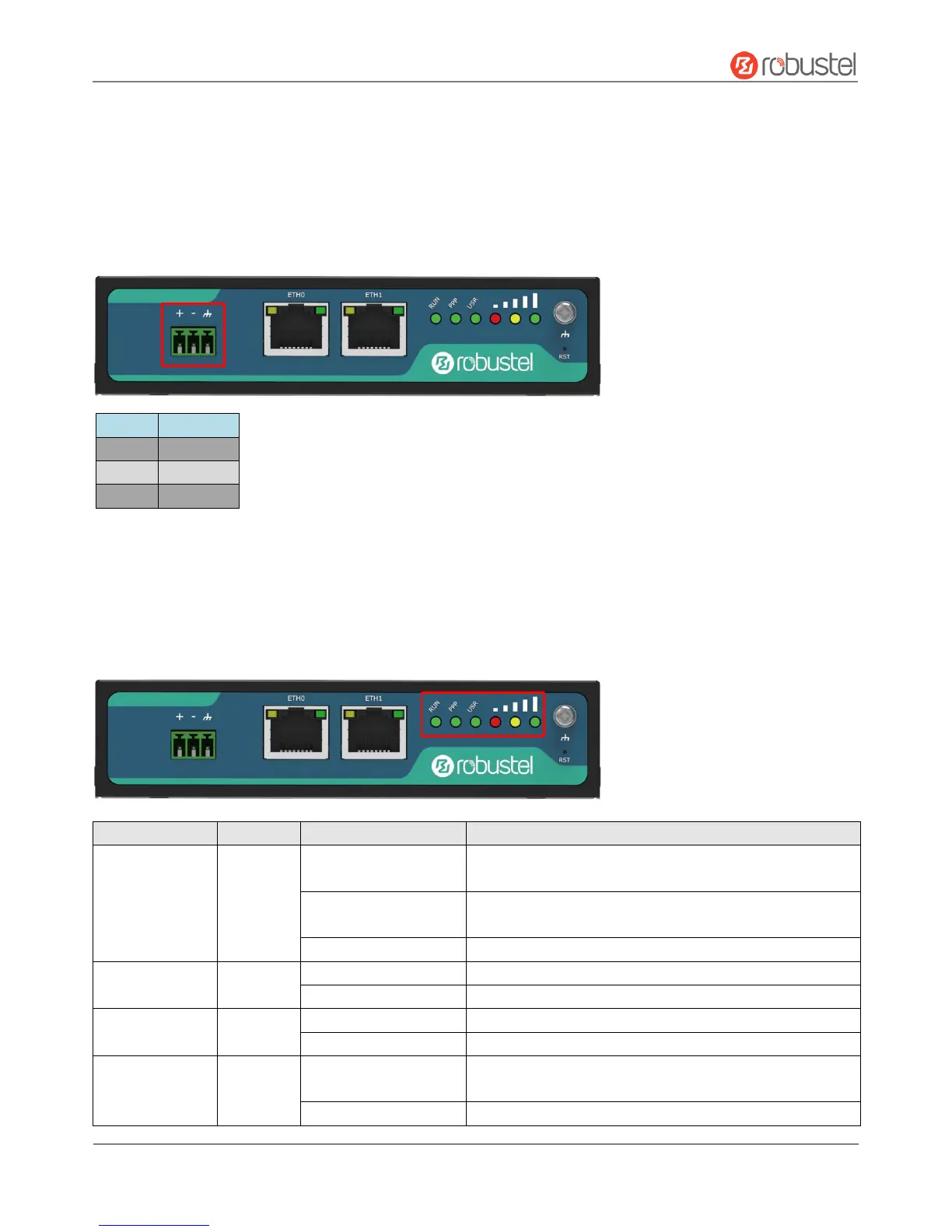

Chapter 2 Hardware Installation
2.1 PIN Assignment
2.2 LED Indicators
The R2000 Router has been designed to be placed on a desktop. Below is the bottom view of the R2000.
Name
Color
Status
Description
RUN
Green
On, fast blinking
(250 mSec blink time)
Router is powered on
(System is initializing)
On, blinking
(500 mSec blink time)
Router starts operating
Off
Router is powered off
PPP
Green
On, solid
Link connection is working
Off
Link connection is not working
USR-SIM
Green
On, blinking
Backup card is being used
Off
Main card is being used
USR-NET
Green
On, solid
Network is joined successfully and worked in an optimum
one
On, blinking
Network is joined successfully but worked in a lower-level
PIN
Polarity
10
Positive
11
Negative
12
GND

Robustel R2000 Specifications

General

Model	R2000
Category	Network Router
Cellular Connectivity	4G LTE
WAN Ports	1
Ethernet Ports	2
Input Voltage	9-36 VDC
SIM Slots	2
Certifications	CE, FCC, RoHS
Operating Temperature	-40°C to 75°C
