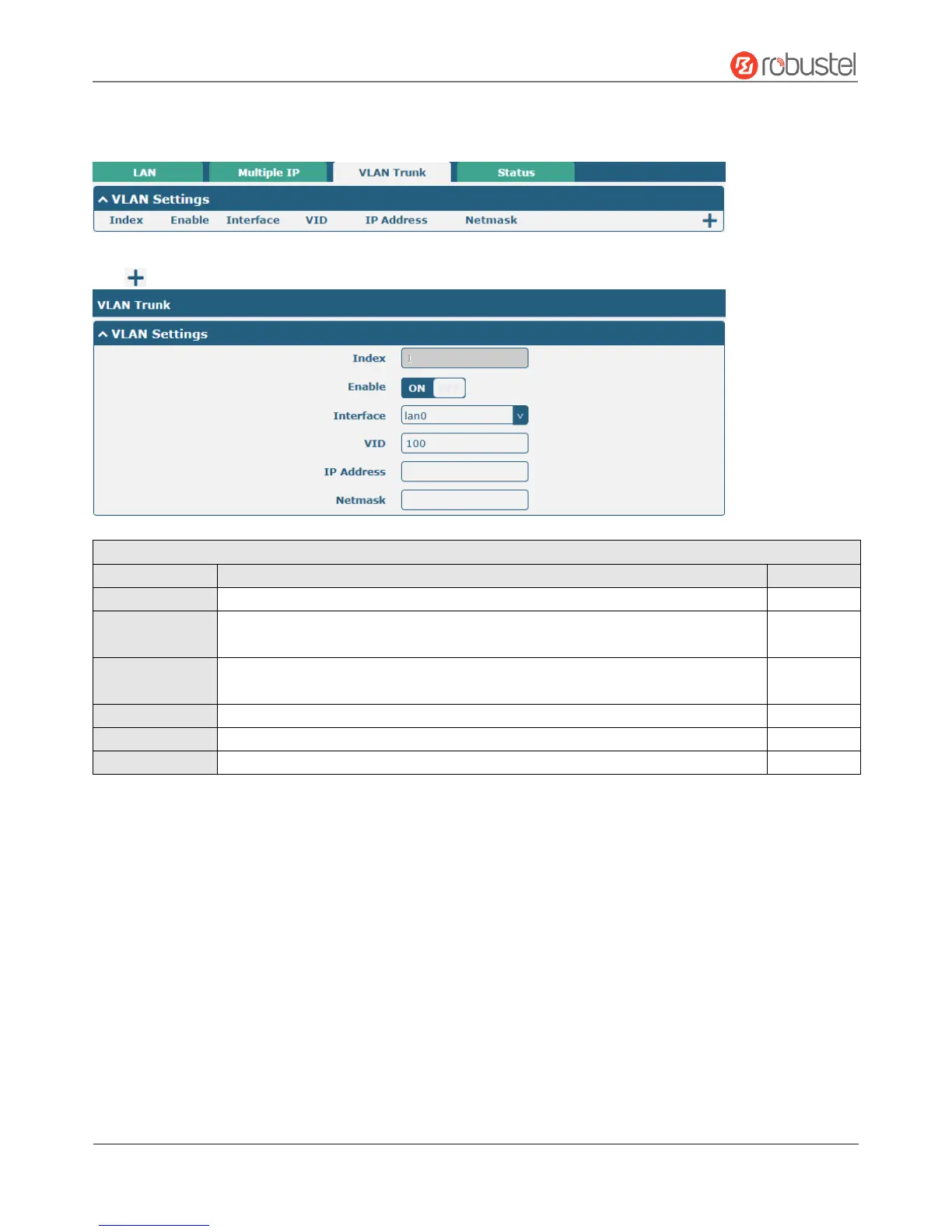

VLAN Trunk
Click to add a VLAN. The maximum count is 8.
VLAN Settings
Item
Description
Default
Index
Indicate the ordinal of the list.
--
Enable
Click the toggle button to enable/disable this VLAN. Enable to make router can
encapsulate and de-encapsulate the VLAN tag.
ON
Interface
Choose the interface which wants to enable VLAN trunk function. Select from
“lan0” or “lan1” depends on your ETH0~ETH1’s corresponding LAN port.
lan0
VID
Set the tag ID of VLAN and digits from 1 to 4094.
100
IP Address
Set the IP address of VLAN port.
Null
Netmask
Set the Netmask of VLAN port.
Null
