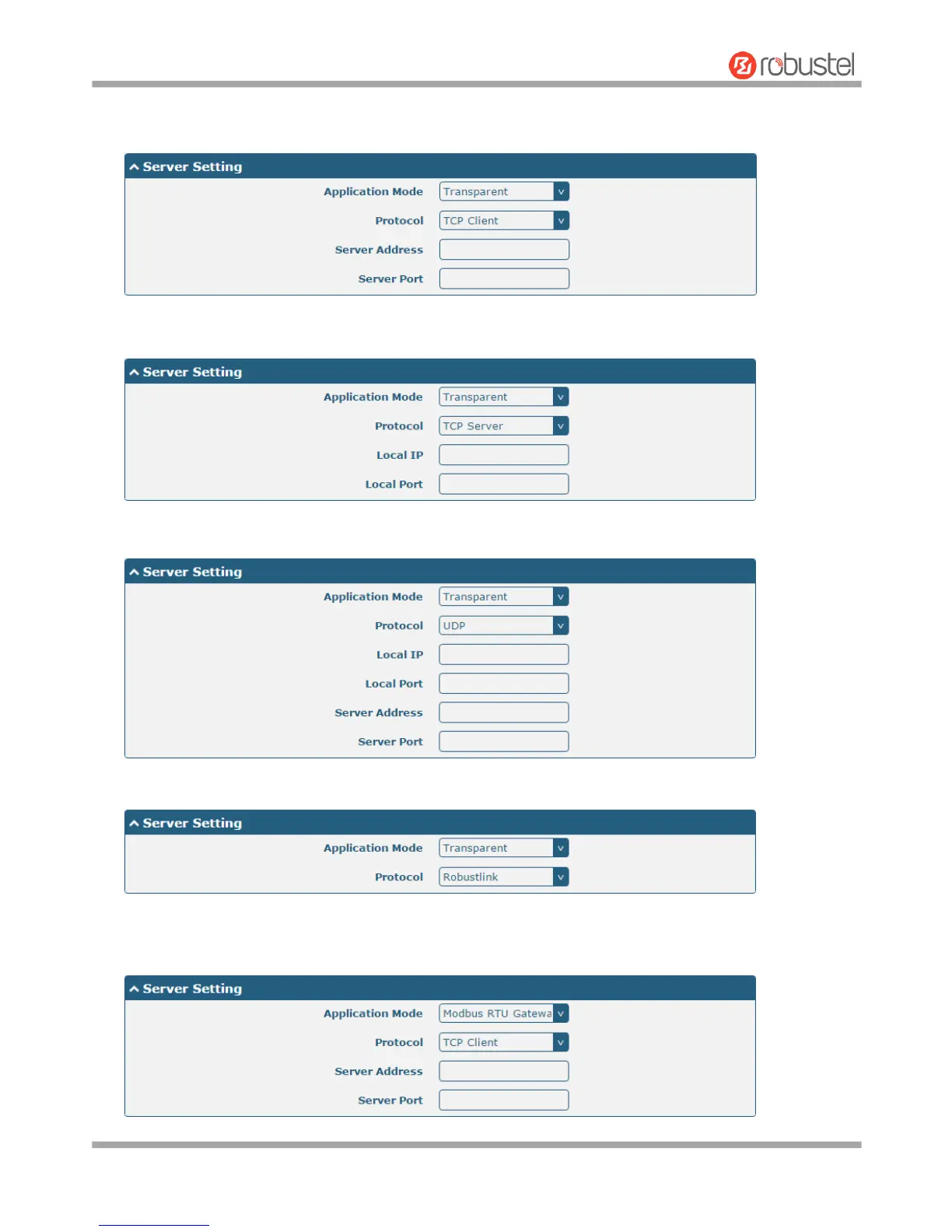

 The window is displayed as below when choosing “Transparent” as the application mode and “TCP Client” as the
protocol.
The window is displayed as below when choosing “Transparent” as the application mode and “TCP Server” as
the protocol.
The window is displayed as below when choosing “Transparent” as the application mode and “UDP” as the
protocol.
The window is displayed as below when choosing “Transparent” as the application mode and “Robustlink” as
the protocol.
 The window is displayed as below when choosing “Modbus RTU Gateway” as the application mode and “TCP
Client” as the protocol.
