40 Rockwell Automation Publication 843ES-UM001A-EN-P - February 2020
Chapter 3 Installation
Pin Assignments
See Recommended Patchcords and Cordsets on page 14 for recommended
power and Ethernet cordsets.
Electrical Specifications
See Appendix A on page 79.

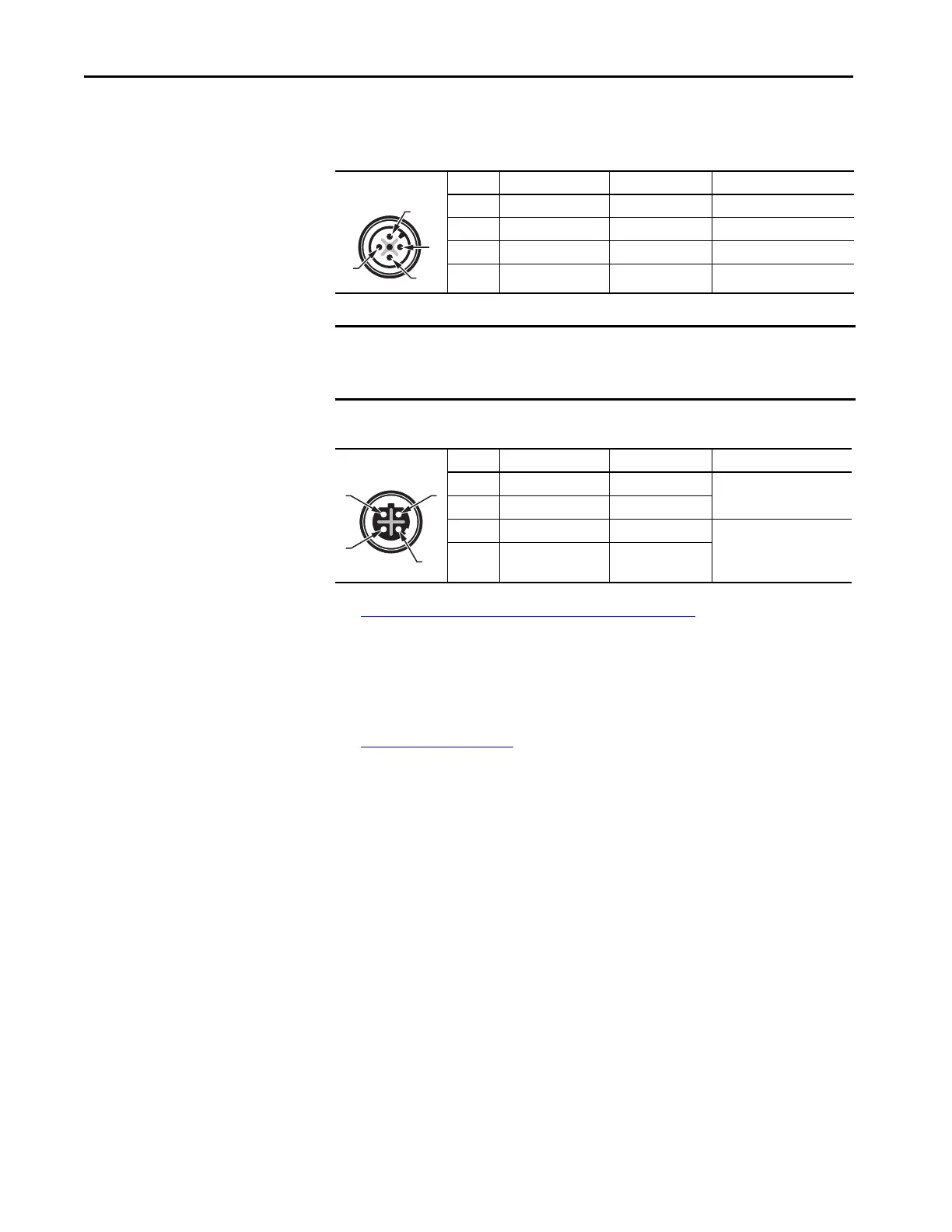

Table 12 - Four-pin M12 Power Connector
Pin Signal Color Function
1 Voltage + Brown Supply voltage (10…30V DC)
2— White —
3 Voltage - Blue Supply voltage (0V)
4— Black —
IMPORTANT Both Ethernet ports are provided with a plastic cap. If only one port is used, the
cap of the unused port must be tightened at a torque of 1 N•m [8.9 lb•in] to
maintain the IP protection level.
Table 13 - Four-pin M12 Ethernet Connector
Pin Signal Color Pair Assignment
1 Transmit Data + White orange
Pair 1
2 Receive Data + White green
3 Transmit Data - Orange
Pair 2
4 Receive Data - Green
2
1
3
4
1
2
3
4
