Chapter 5 Configure the Encoder with Studio 5000 Environment
For more detailed information, see Electronic Keying in publication
LOGIX-AT001
.
Add the Device to the
Controller Organizer
After you create a Logix Designer application project and install an 843ES CIP
Safety encoder to the project, add the module as a New Module to the project.
Discover Modules is not supported for this encoder because it is considered a
safety device and safety devices cannot be added to a project while online with
Logix.
To create a 843ES CIP Safety encoder, complete the following steps:

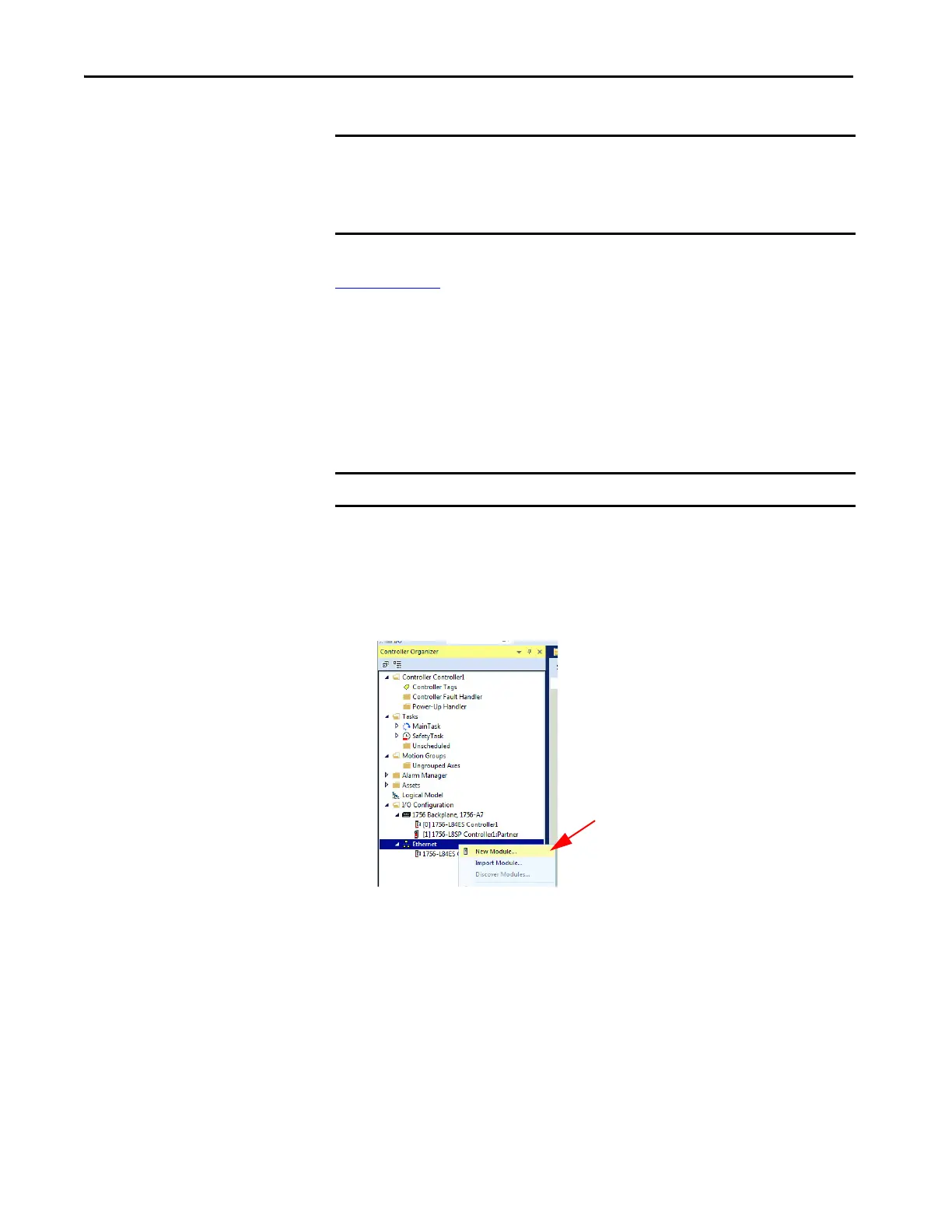

1. Right-click the Ethernet adapter and choose New Module.
This example uses a 1756-L84ES and 1756-L8P, and the encoder is on the
network that is connected to the 1 GB Ethernet Port on the 1756-L84ES.
IMPORTANT If you change electronic keying parameters online, it interrupts connections to
the device and any devices that are connected through the device. Connections
from other controllers can also be broken.
If an I/O connection to a device is interrupted, the result can be a loss of data.
IMPORTANT Verify that the Logix Designer application project is offline.
To Next Page
