Rockwell Automation Publication 843ES-UM001A-EN-P - February 2020 41
Chapter 4
Add Device to an EtherNet/IP Network
Set the IP Address
The 843ES CIP Safety encoder is shipped with the network address switches set
to 999. Use one of the following methods to assign an IP address:
• To set the last octet of the IP address (192.168.1.xxx), use the network
address switches (see Figure 11
) on the encoder.
• Use the network address switches to enable BOOTP / DHCP and use a
BOOTP utility or DHCP server to assign the IP address of the unit on
powerup. To use the BOOTP/DHCP, see publication ENET-UM006
.
• Set the rotary dials to 999 to use RSLinx® Classic software. To use RS Linx
Classic software, see publication ENET-UM006
.
• Set the rotary dials to 999 to use Studio 5000 Logix Designer application.
To use Studio 5000 Logix Designer application, see publication
ENET-UM006
.
Assign the Last Octet in an IP Address Scheme of 192.168.1.xxx with
the Network Address Switches
1. Set the three network address switches to 999.
2. Cycle power to the encoder.
3. Set the three network address switches to a valid address of 001…254.
4. Cycle power to the encoder.
5. The encoder powers up with the IP address set to 192.168.1.xxx, where
xxx is the position of the three network address switches.

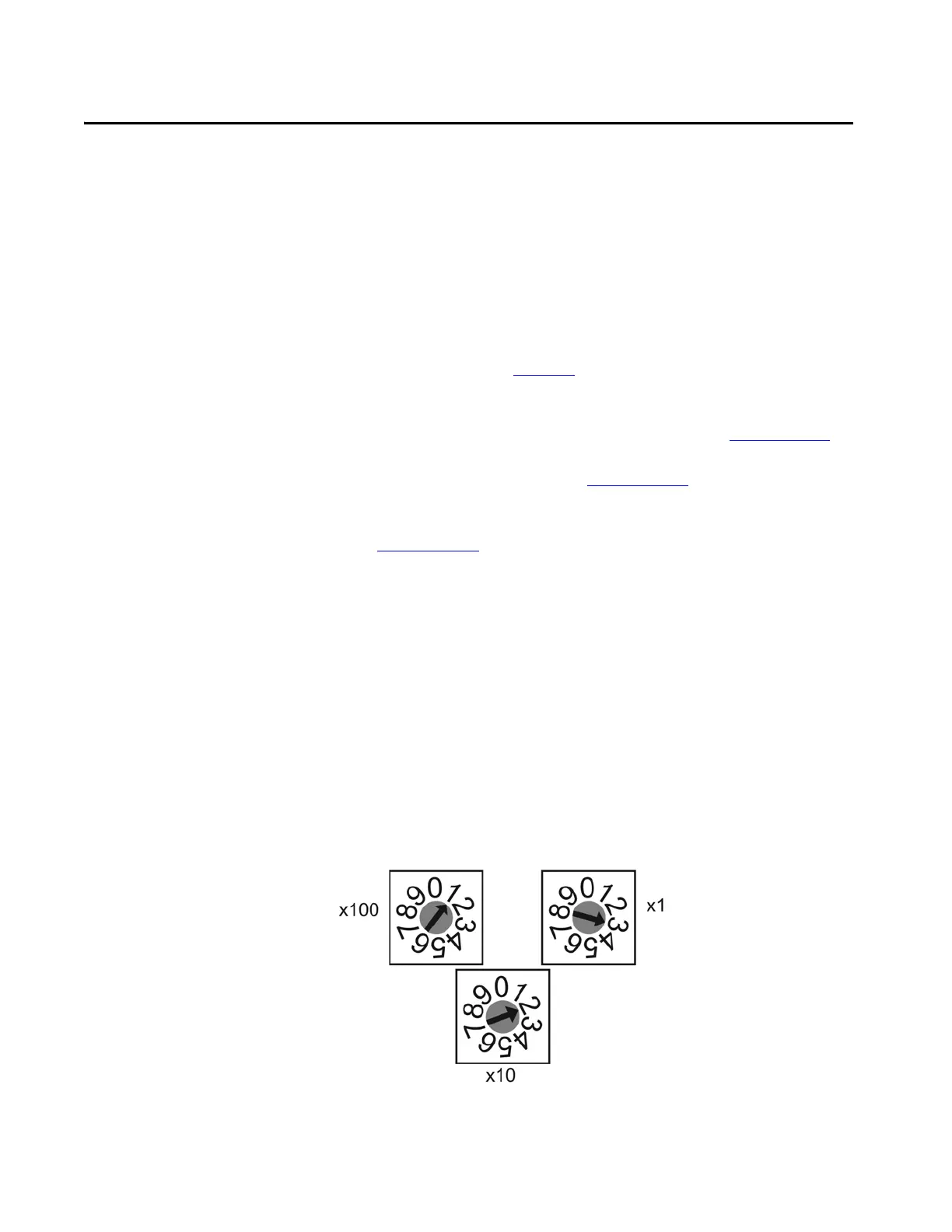

Figure 11 - Network Address Switches Set to 123
