Chapter 10 Using microSD Cards
Create data log ladder program

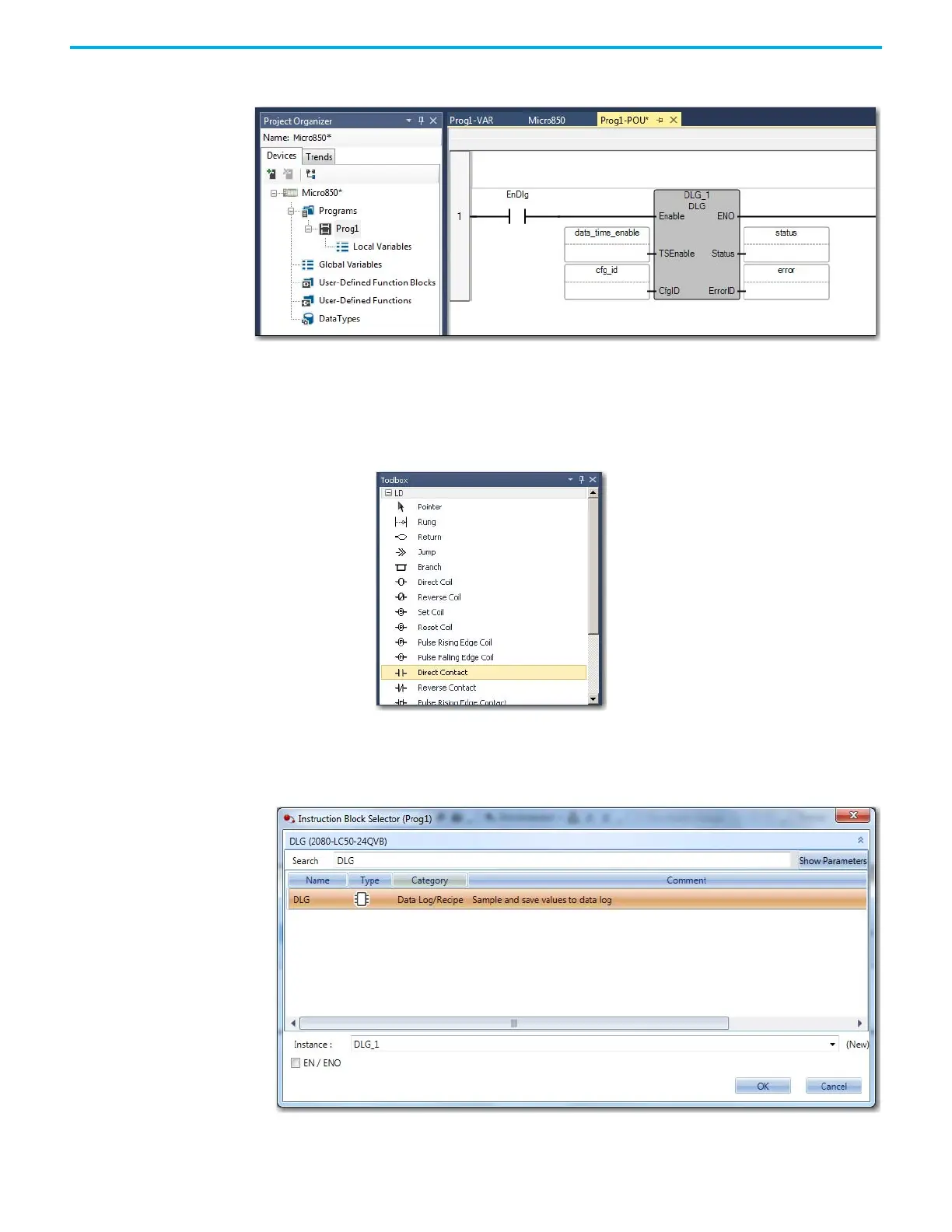

1. Launch the Connected Components Workbench software. Create a user
program for your Micro800 controller.
2. Right-click Programs. Select Add New LD: Ladder Diagram. Name the
Program (for example, Prog1).
3. From the Toolbox, double-click Direct Contact to add it to the rung.
4. From the Toolbox, double-click Block to add it to the rung.
5. On the Block Selector window that appears, type DLG to filter the DLG
function block from the list of available function blocks. Click OK.
