Chapter 10 Using microSD Cards

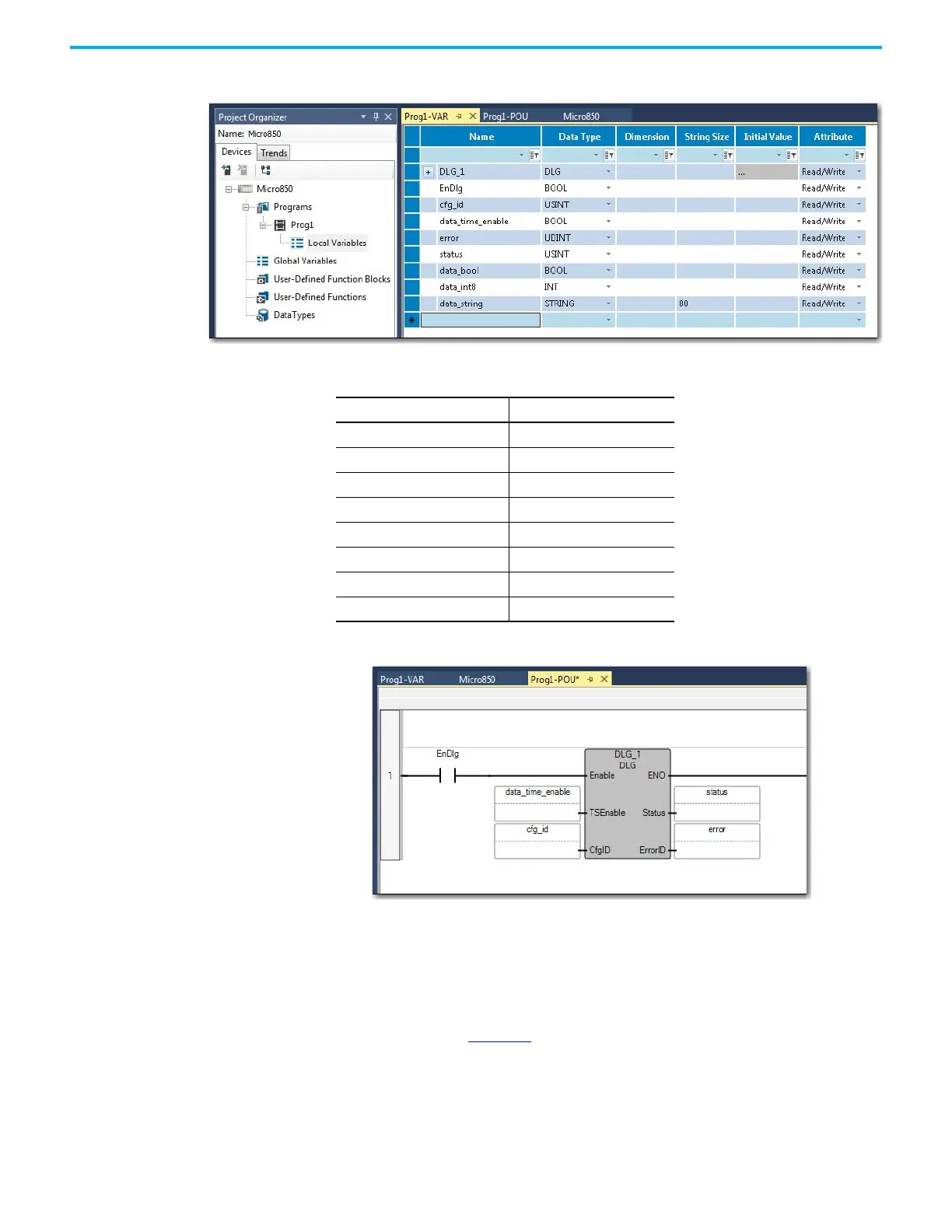

6. Create the following local variables for your project.
7. Assign the variables to the DLG input and output parameters as follows:
Note: For CfgID input parameter, you can choose a predefined variable by
choosing from the Defined Words in the Connected Components Workbench
software. To do so, click the CfgID input box. From the Variable Selector
window that appears, click the Defined Words tab and choose from the list of
defined words. For example, DSET1 that corresponds to DSET1 in your recipe
configuration. See Figure 18
.
Local Variables
Variable Name Data Type
EnDlg BOOL
cfg_id USINT
data_time_enable BOOL
error UDINT
status USINT
data_bool BOOL
data_int8 INT
data_string STRING
To Next Page
