176 Rockwell Automation Publication 2080-UM002L-EN-E - November 2021

Chapter 10 Using microSD Cards

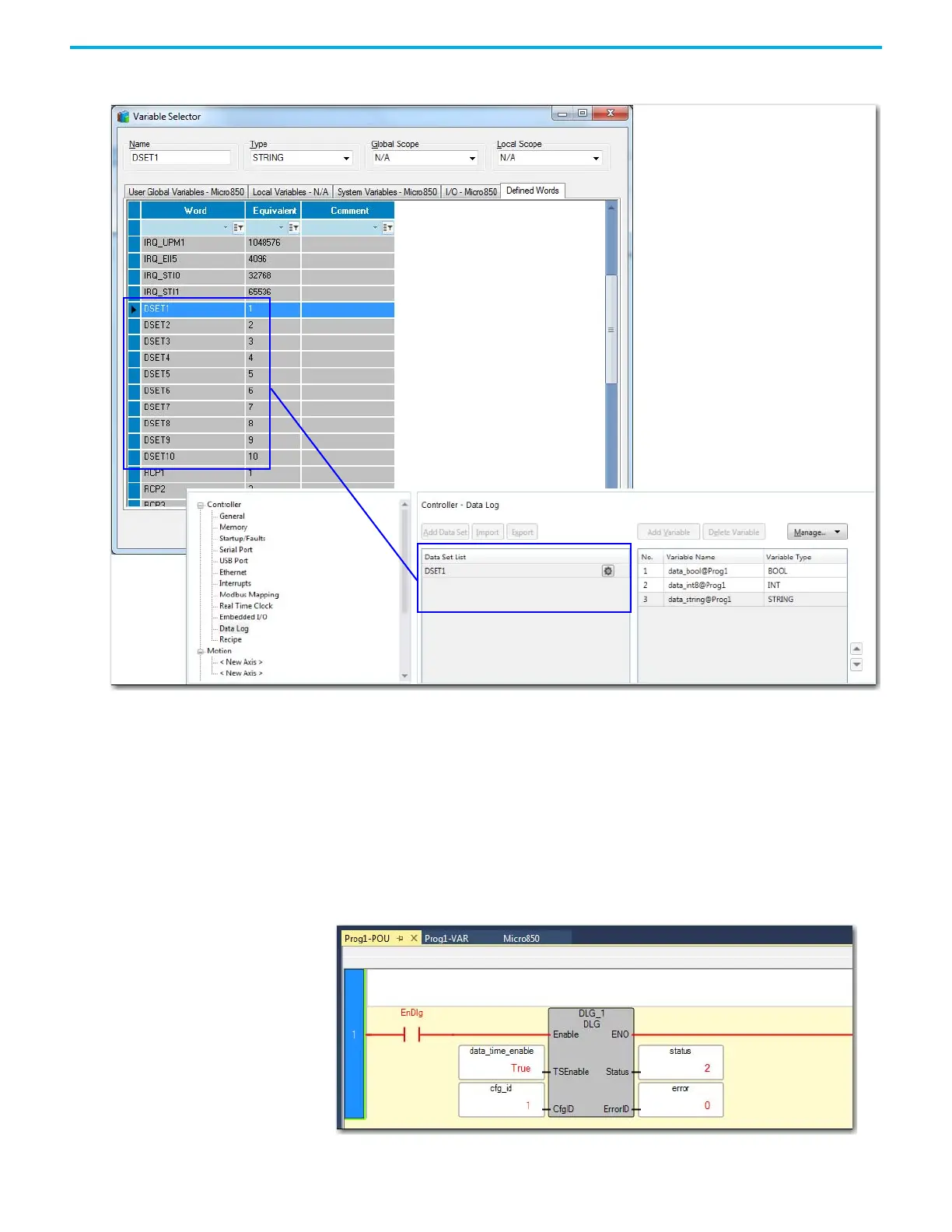

Figure 18 - Choose a Predefined Variable

Build and Download

After configuring data log properties, build the program and download to the

controller.

Execute DLG Function Block

Execute the DLG function block. Notice the Status output go from 0 (Idle) to

1 (Enable), and 2 (Succeed).
