Rockwell Automation Publication 2080-UM002L-EN-E - November 2021 181
Chapter 10 Using microSD Cards
9. Assign the variables to the RCP input and output parameters as follows:
Note: For CfgID input parameter, you can choose a predefined variable by
choosing from the Defined Words in the Connected Components Workbench
software. To do so, click the CfgID input box. From the Variable Selector
window that appears, click the Defined Words tab and choose from the list of
defined words. For example, RCP1 that corresponds to RCP1 in your recipe
configuration. See Figure 19
.

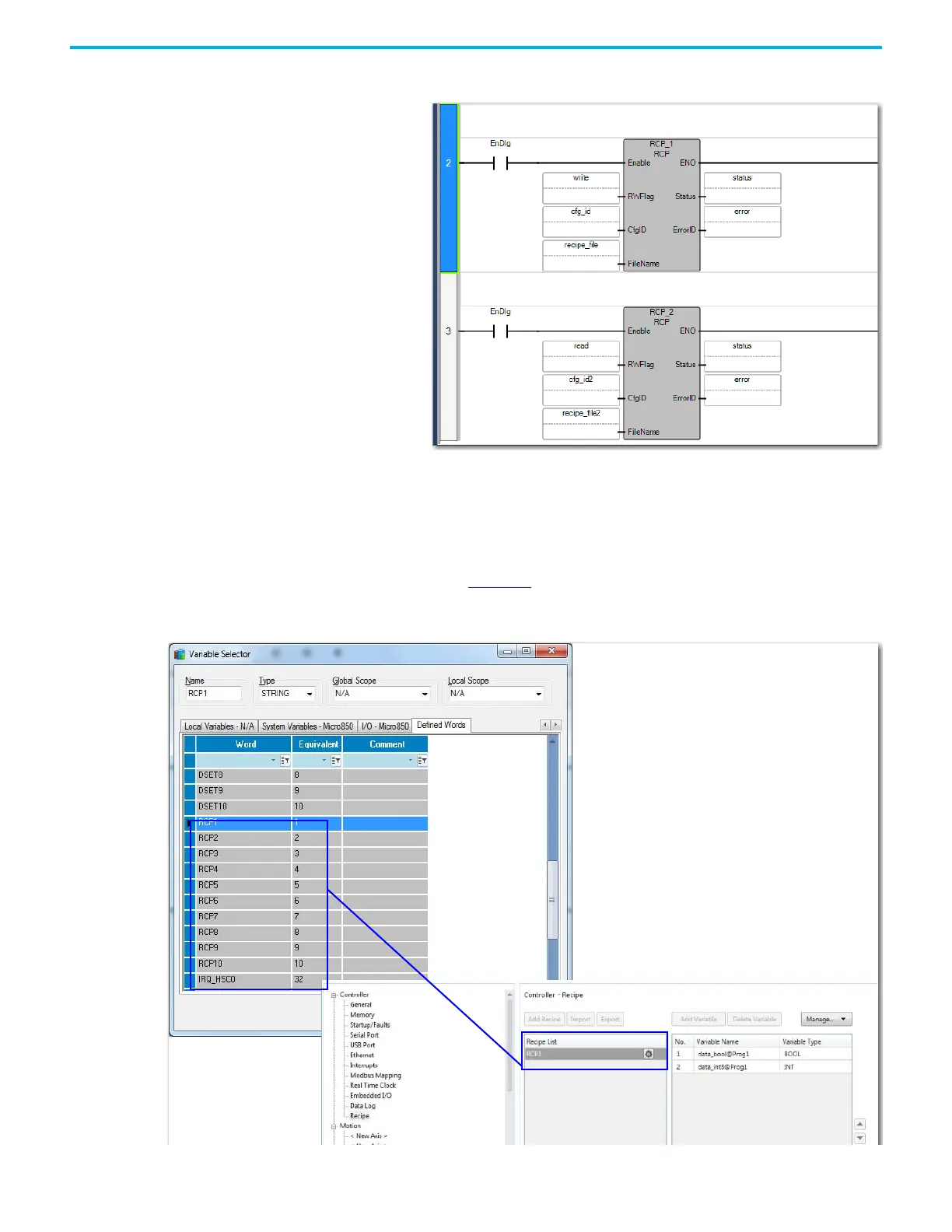

Figure 19 - Choose a Predefined Variable
