224 Rockwell Automation Publication 2080-UM002L-EN-E - November 2021
Appendix C Quickstarts

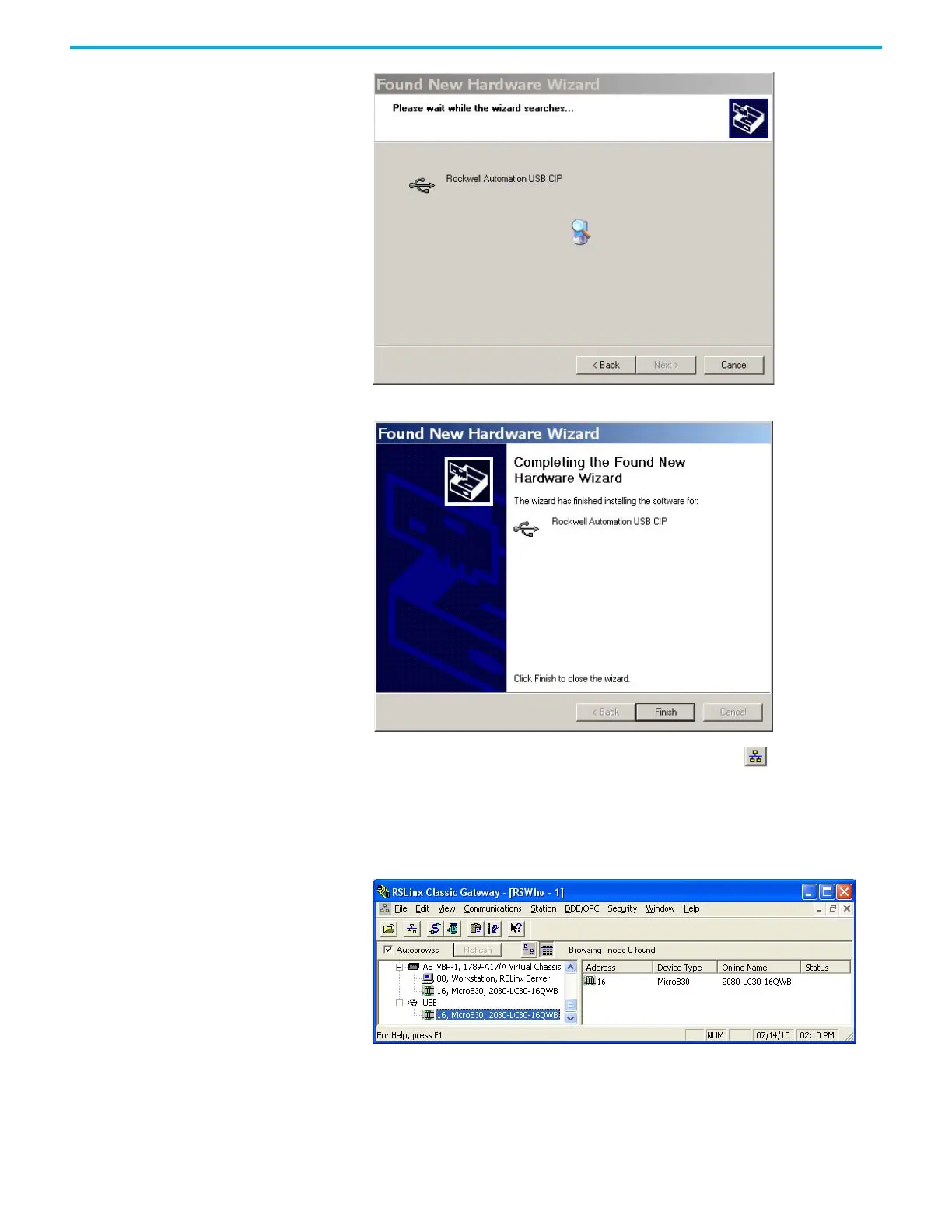

6. Click Finish when the wizard completes the installation.
7. Open RSLinx Classic and run RSWho by clicking the icon.
If the proper EDS file is installed, the Micro830/Micro850/Micro870
controller should be properly identified and show up under both the
Virtual Backplane (VBP) driver and the USB driver, which was
automatically created.
If instead the Micro830/Micro850/Micro870 shows up as a "1756 Module"
under the AB_VBP-1 Virtual Chassis driver, then the proper EDS file for
this major revision of firmware has not yet been installed or the
controller is running pre-release firmware (Major Revision=0).
