Rockwell Automation Publication 2080-UM002L-EN-E - November 2021 225

Appendix C Quickstarts

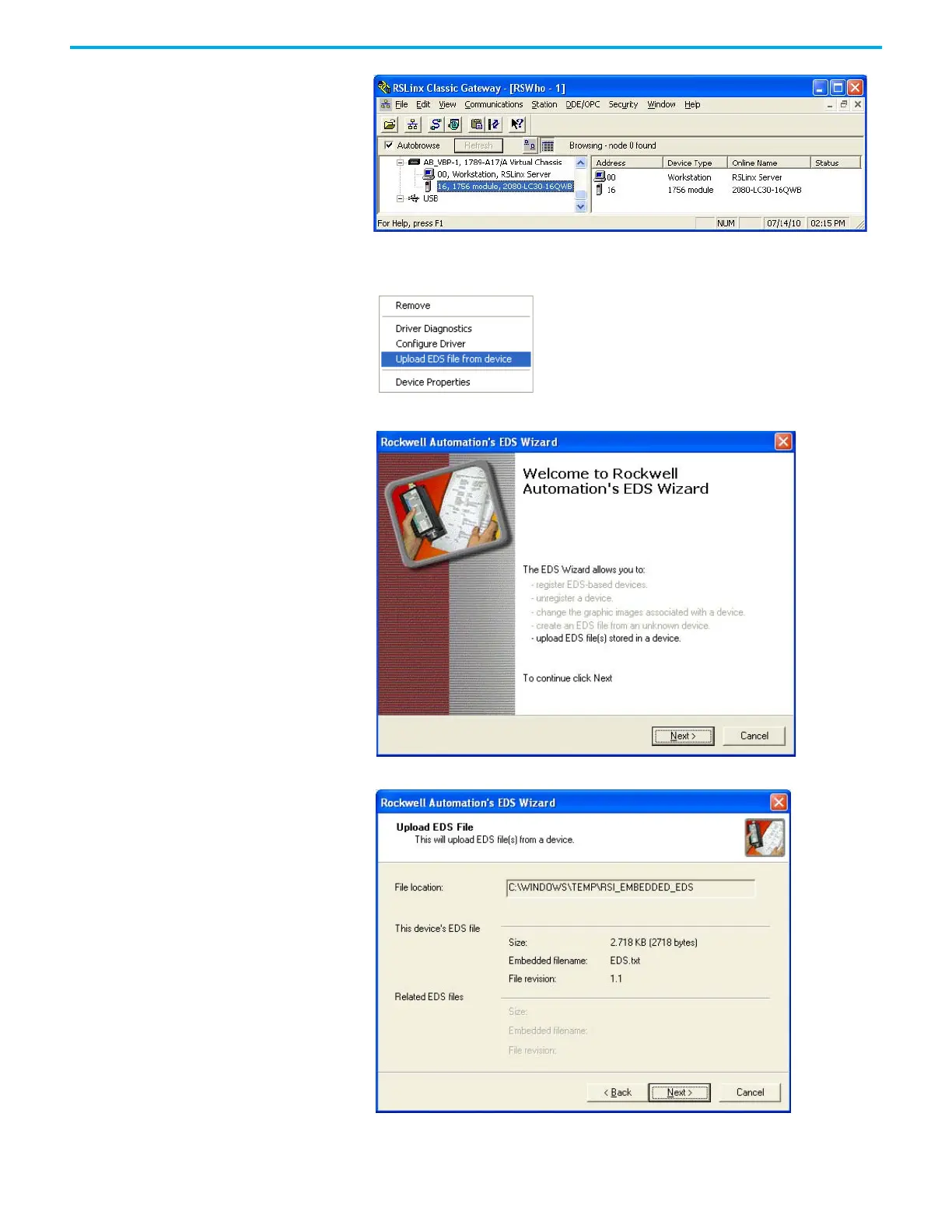

Since Micro830/Micro850/Micro870 controllers support embedded EDS

files, right-click this device, and select Upload EDS file from device.

8. On the EDS wizard that appears, click Next to continue.

9. Follow the prompts to upload and install the EDS file.
