Rockwell Automation PowerFlex series User Manual

PowerFlex Digital DC Drive User Manual - Publication 20P-UM001C-EN-P - July 2008
1-4 Installation and Wiring

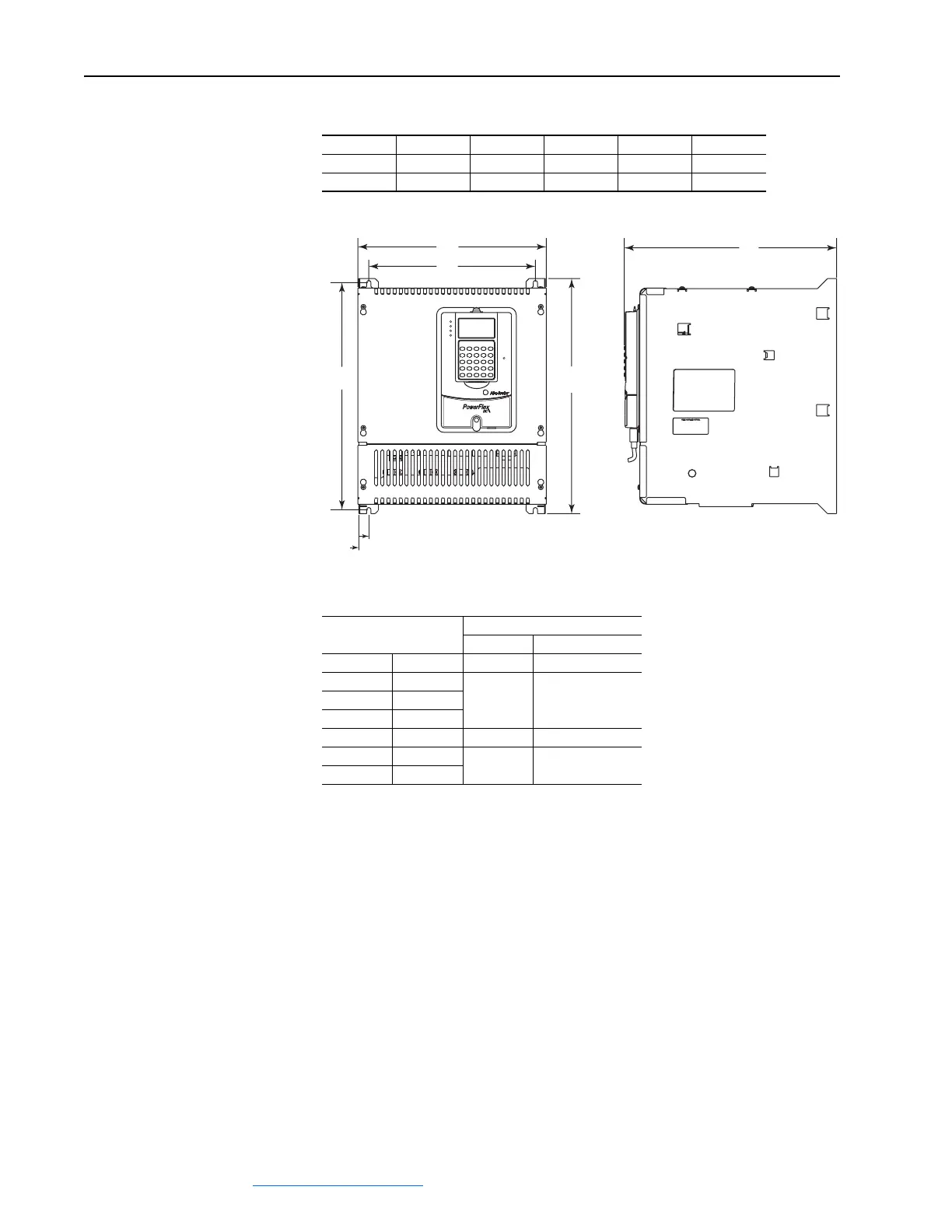

Figure 1.3 Frame B Approximate Dimensions
Table 1.B Frame B Weights
A A1A2B B1C
mm (in.) mm (in.) mm (in.) mm (in.) mm (in.) mm (in.)
311 (12.2) 275 (10.8) 16.5 (0.65) 388 (15.3) 375 (14.8) 350 (13.8)
Drive w/ND Rating Code
Weight
Drive Drive & Packaging
230V 460V kg (lbs.) kg (lbs.)
146 167 25.5 (56.2) 27.5 (60.6)
180 207
218 –
265 250 29.5 (65.0) 31.5 (69.4)
360 330 32 (70.5) 34 (75)
434 412
A
A1
B1
C
B
A2
STS
PORT
MOD
NET A
NET B
