Installation and Wiring 1-23
Field Circuit Connections

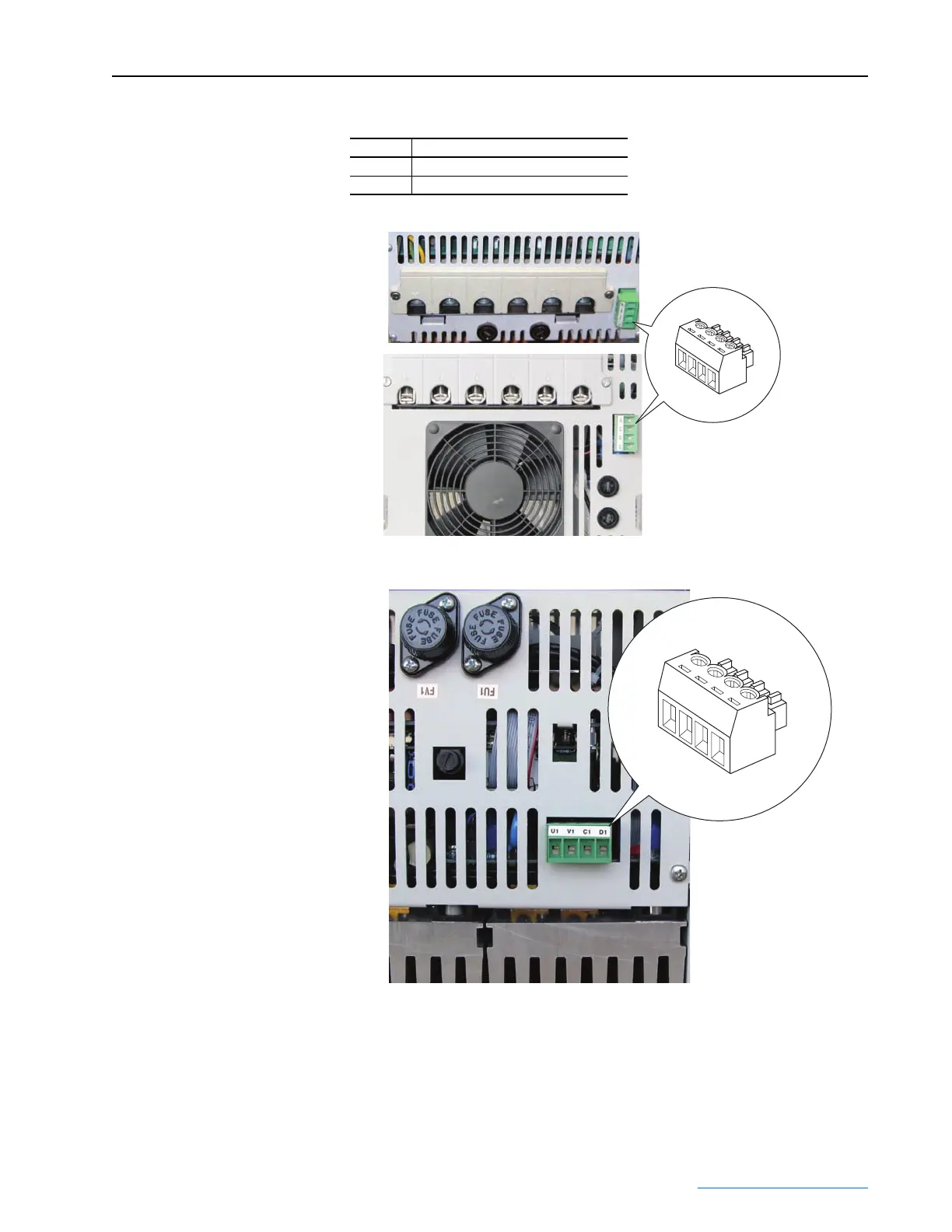

Figure 1.17 Frame A Field Circuit Terminal Block Location
Figure 1.18 Frame B Field Circuit Terminal Block Location
Terminals Description
U1, V1 Single phase AC input to the field circuit
C1, D1 DC output to the motor field
V1
C1
D1
U1
Bottom of Drive
V1
C1
D1
U1
Top of drive
