PowerFlex Digital DC Drive User Manual - Publication 20P-UM001C-EN-P - July 2008
1-8 Installation and Wiring
Remove the Lower Protective Cover
Remove the two screws as shown below and, while gently lifting along the
top edge, slide the cover down and off the chassis.

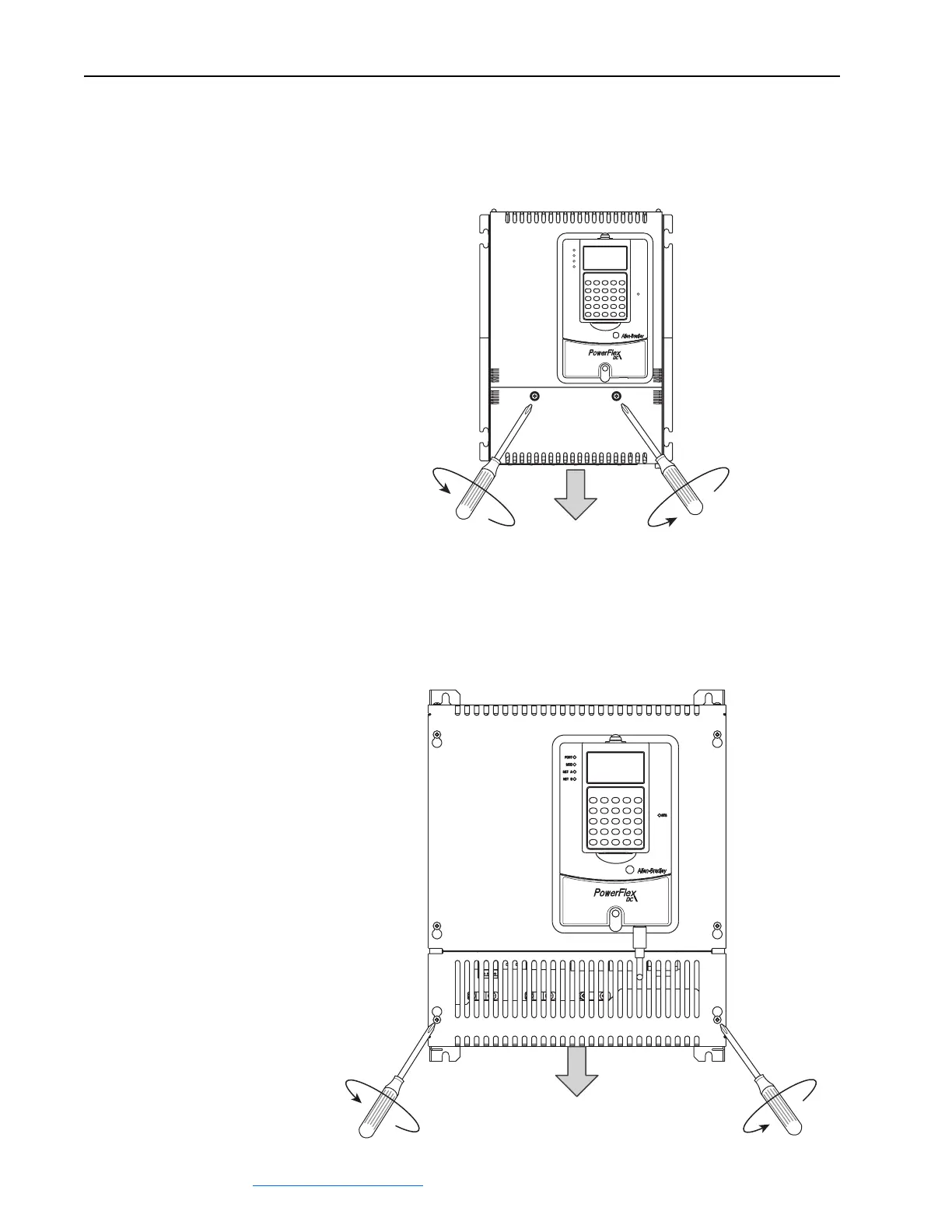

Figure 1.7 Frame A Lower Cover Removal
Frame B and C Drives
Loosen, but do not remove, the two screws that secure the bottom cover.
Then, slide the cover down until the screw heads line up with the key holes
and lift the cover off the chassis.
Figure 1.8 Frame B & C Drive Cover Removal
STS
PORT
MOD
NET A
NET B
Frame B Shown
