PowerFlex Digital DC Drive User Manual - Publication 20P-UM001C-EN-P - July 2008
A-16 Supplemental Drive Information

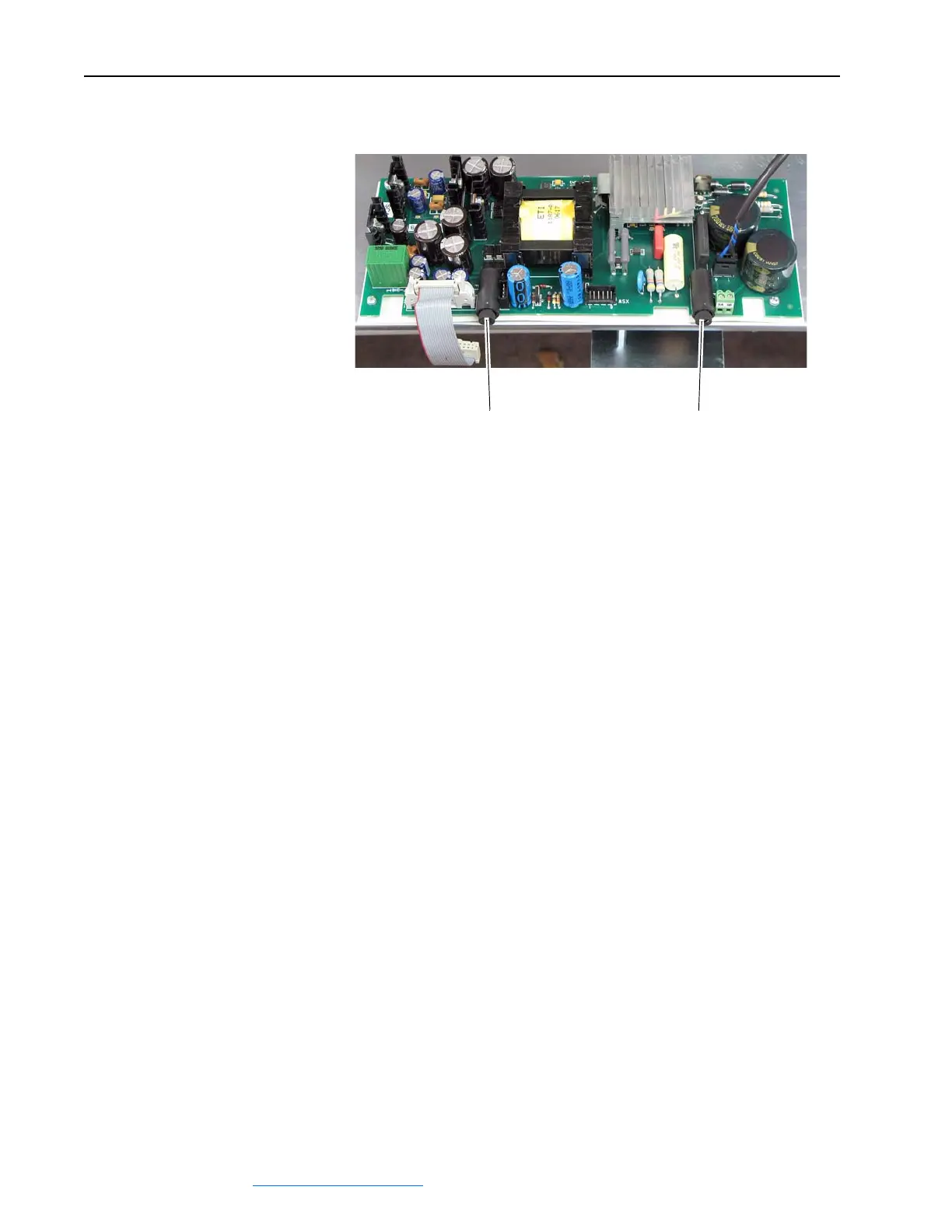

Figure A.12 Frame C Switching Power Supply Fuse Location
Fuses are located on the Switching Power Supply circuit board (SW-2)
on the back of the Control EMI shield, which holds the Control board.
F1 = 3.15A fuse
F2 = 2.5A fuse
