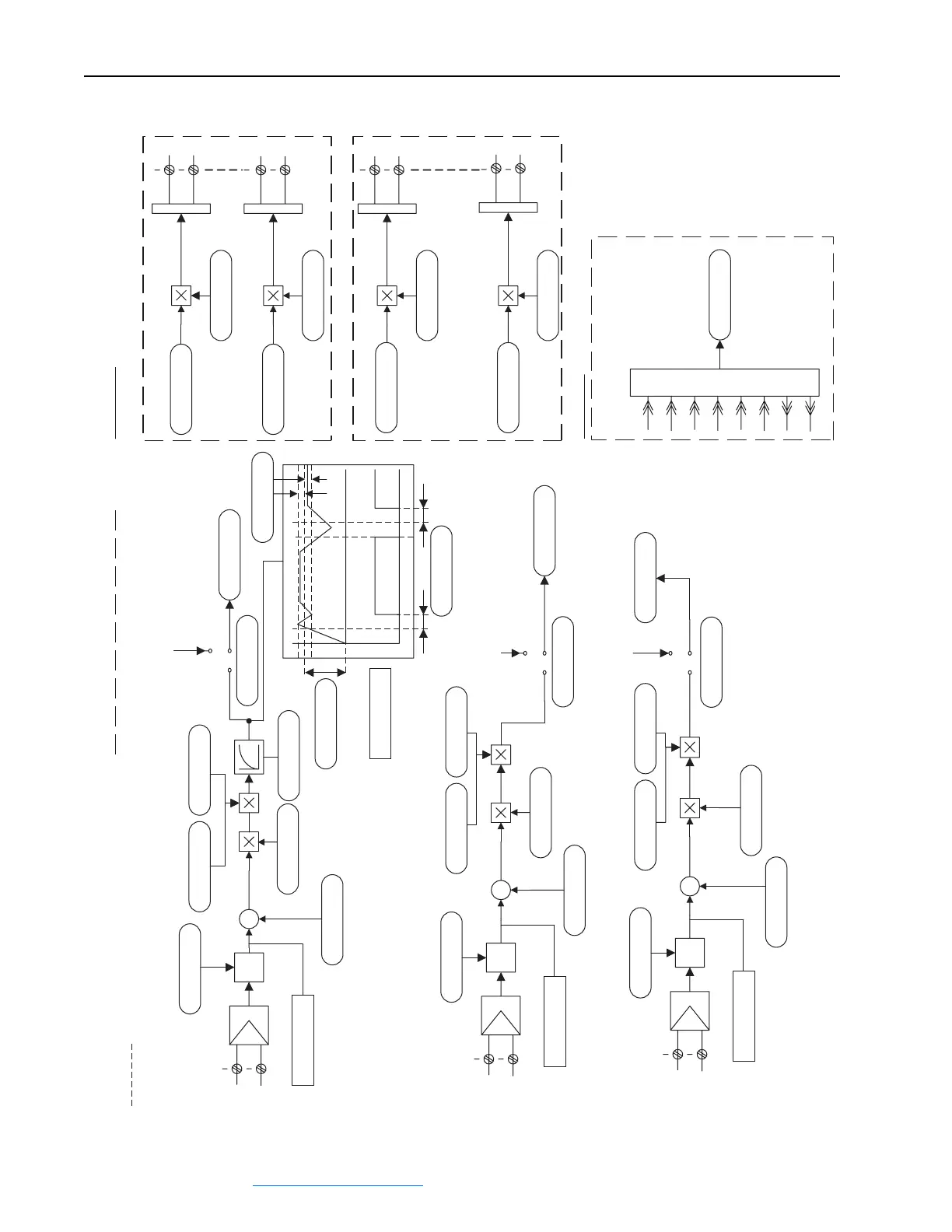

D-4 Control Block Diagrams
Analog Inputs/Outputs and Mapping
22 21
24
23 2 1
4
3
Σ
+
-
6 5
Volts
Σ
+
-
4 3
Volts
Σ
+
-
2 1
Volts
Ref_1-
Ref_1+
HW
input
type
Window comparator
F
F F
Digital Encoder Terminal Block
Analog Outputs
Terminal Block 3
Analog Inputs / Outputs
From Digital Reference
Setting
P1045
Anlg In1 Cmp Eq
Analog Input 1
P71
Anlg In1 Config
P73
Anlg1 Tune Scale
P74
Anlg In1 Offset
P72
Anlg In1 Scale
P259
Anlg In1 Tune
P792
Anlg In1 Filter
P1042
Anlg In1 Cmp
P295
Anlg In1 Target
P70
Anlg In1 Sel
P1043
Anlg In1 Cmp Err
P1044
Anlg In1 Cmp Dly
P66
Anlg Out1 Sel
P67
Anlg Out2 Sel
P62
Anlg Out1 Scale
P63
Anlg Out2 Scale
D A C 1
D A C 2
AO1 ACOM AO2 ACOM
D A C 2
AO4 ACOM
D A C 1
AO3 ACOM
P68
Anlg Out3 Sel
P69
Anlg Out4 Sel
P64
Anlg Out3 Scale
P65
Anlg Out4 Scale
Tach Follower
P1021
Encoder Out Sel
P76
Anlg In2 Config
P78
Anlg2 Tune Scale
P260
Anlg In2 Tune
Ref_2-
Ref_2+
HW
input
type
P79
Anlg In2 Offset
Anlg In2 Scale
P77
P296
Anlg In2 Target
From Digital Reference
Setting
From Digital Reference
Setting
P75
Anlg In2 Sel
Ref_3-
Ref_3+
HW
input
type
P81
Anlg In3 Config
P84
Anlg In3 Offset
P83
Anlg3 Tune Scale Anlg In3 Tune
P261
Anlg In3 Scale P82
P297
Anlg In3 Target
P80
Anlg In3 Sel
Analog Inputs
Expansion Analog Outputs (Optional)
Analog Input 2
Analog Input 3
Terminal Block 1
A+ A- B+ B- Z+ Z- COM +V
P1404
Analog In1 Value
P1405
Analog In2 Value
P1406
Analog In3 Value
