PowerFlex Digital DC Drive User Manual - Publication 20P-UM001C-EN-P - July 2008
1-34 Installation and Wiring

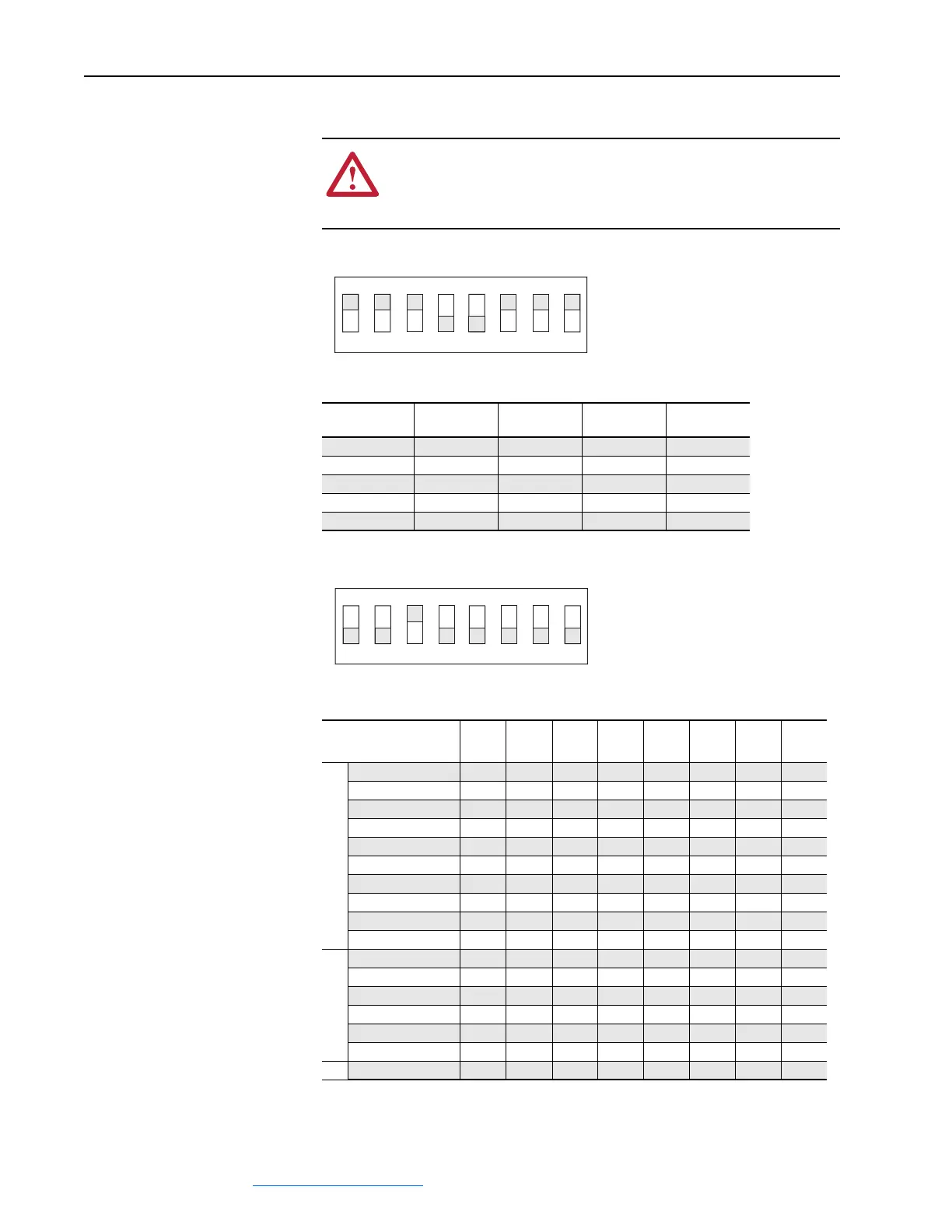

Figure 1.30 DC Analog Tachometer DIP Switch S4 Example
Table 1.M DC Analog Tachometer DIP Switch S4 Configuration
Figure 1.31 Drive Size DIP Switch S15 Example
Table 1.N Drives with 230V Input - DIP Switch S15 Configuration
!
ATTENTION: The Drive can overspeed if DIP switch S4 is set
incorrectly, or the tachometer is wired incorrectly. Failure to
observe this precaution could result in damage to, or destruction
of, the equipment.
Maximum DC
Input Voltage
S4-1
S4-8
S4-2
S4-7
S4-3
S4-6
S4-4
S4-5
22V ON ON ON ON
45V ON ON ON OFF
90V ON ON OFF OFF
180V ON OFF OFF OFF
300V OFF OFF OFF OFF
Frame
Drive Current
Rating Code S15-1 S15-2 S15-3 S15-4 S15-5 S15-6 S15-7 S15-8
A 7P0 ON OFF OFF OFF OFF OFF OFF OFF
9P0 OFF ON OFF OFF OFF OFF OFF OFF
012 ON ON OFF OFF OFF OFF OFF OFF
020 OFF OFF ON OFF OFF OFF OFF OFF
029 ON OFF ON OFF OFF OFF OFF OFF
038 OFF ON ON OFF OFF OFF OFF OFF
055 ON ON ON OFF OFF OFF OFF OFF
073 OFF OFF OFF ON OFF OFF OFF OFF
093 ON OFF OFF ON OFF OFF OFF OFF
110 OFF ON OFF ON OFF OFF OFF OFF
B
146 ON ON OFF ON OFF OFF OFF OFF
180 OFF OFF ON ON OFF OFF OFF OFF
218 ON OFF ON ON OFF OFF OFF OFF
265 OFF ON ON ON OFF OFF OFF OFF
360 ON ON ON ON OFF OFF OFF OFF
434 OFF OFF OFF OFF ON OFF OFF OFF
C
521 ON OFF OFF OFF ON OFF OFF OFF
1
ON
2
3
4
5
6
78
DIP
Note: Illustration for example only.
1
ON
2
3
4
5
6
78
DIP
Note: Illustration for example only.
