3-22 Programming and Parameters
MOTOR CONTROL
Test Generator
58 [TstGen Output]
Allows you to select a simulated parameter as the output for the
test generator. The test generator is used to manually tune the
regulators. It consists of a square wave generator whose
frequency, offset and amplitude can be manipulated.
• “NotConnected” - No internal parameters defined by the
generator.
• “Reserved” - Not used.
• “Torq Cur Ref” - The output of the generator defines the
reference value of the torque current. 100% corresponds to
“full load torque current” (FLT).
• “Field Ref” - The output of the generator defines the field
reference value. 100% corresponds to the rated field current
based on the motor nameplate data parameters.
• “Ramp Ref” - The output of the generator defines the ramp
reference value. 100% corresponds to the value specified in
Par 45 [Max Ref Speed]. This is the value immediately before
the Ramp function.
• “Speed Ref” - The output of the generator defines the speed
reference value. This is the value immediately before the
Speed Regulator function.
Default:
Options:
0 =
0 =
1 =
2 =
3 =
4 =
5 =
“NotConnected”
“NotConnected”
“Reserved”
“Torq Cur Ref”
“Field Ref”
“Ramp Ref”
“Speed Ref”
59,
60,
61
59 [TstGen Frequency]
Output frequency of the test generator.
Default:
Min/Max:
Units:
0.10
0.10 / 62.50
Hz
58
60 [TstGen Amplitude]
Amplitude of the delta signal produced by the test generator.
Default:
Min/Max:
Units:
0.00
0.00 / 200.00
%
58
61 [TstGen Offset]
Offset of the test generator.
Default:
Min/Max:
Units:
0.00
–/+200.00
%
58

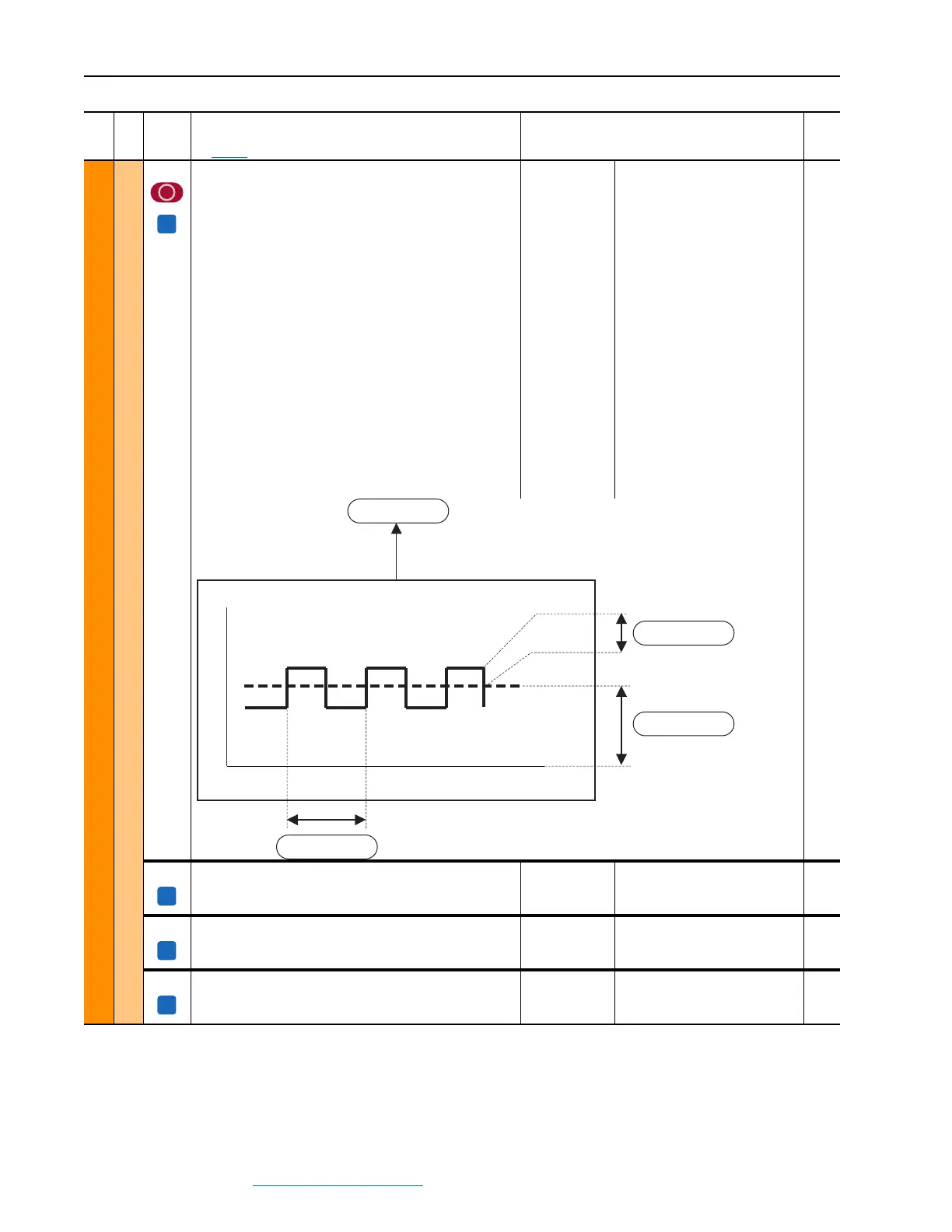

File
Group
No.
Parameter Name & Description
See page 3-2 for symbol descriptions
Values
Related
A
Generator
Output
Time
P58
TstGen Output
P59
TstGen Frequency
P61
TstGen Offset
P60
TstGen Amplitude
A
A
A
To Next Page
