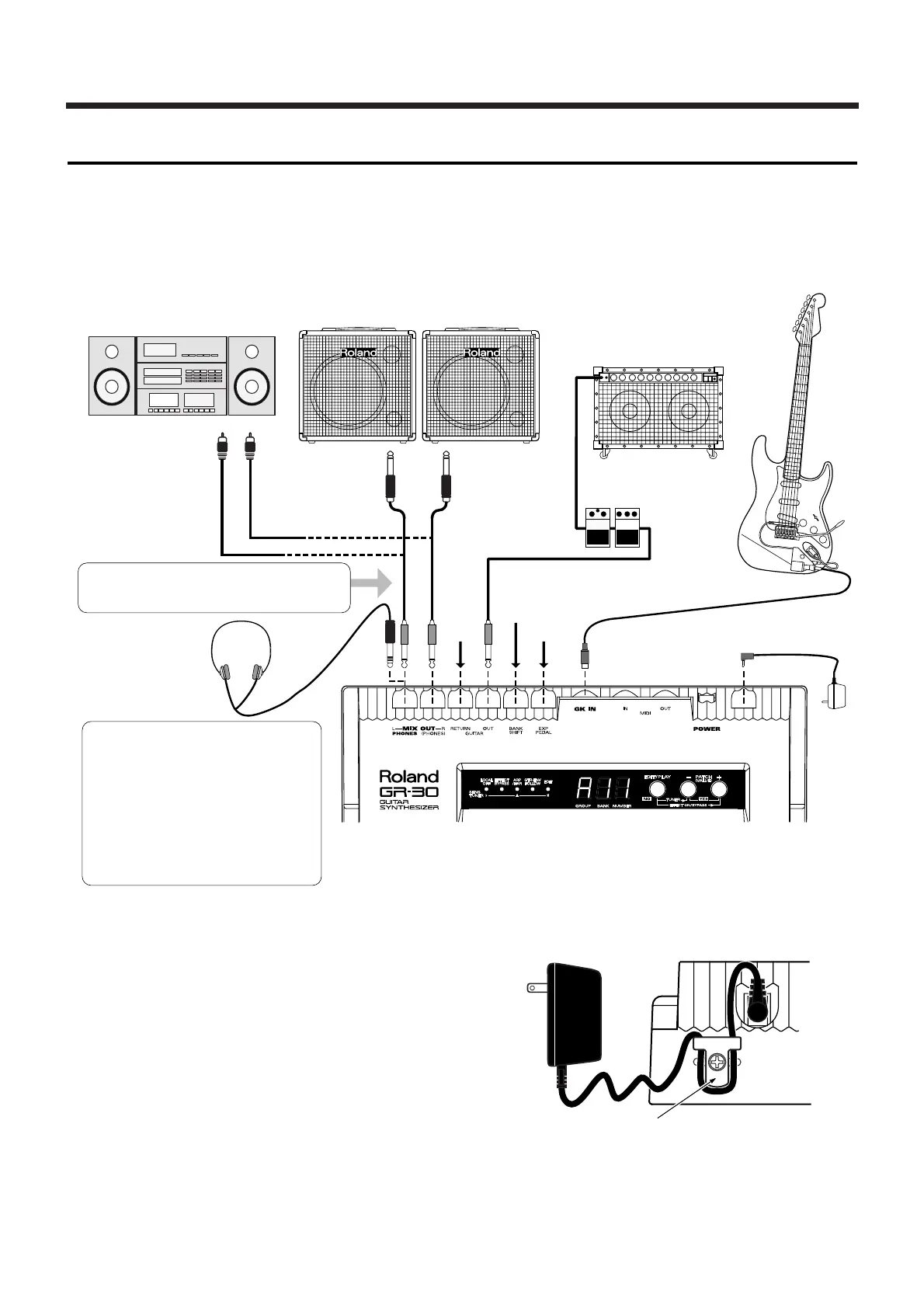

To AUX, LINE IN
Stereo set, radio-cassette player, etc.
Headphones
See p. 19
Guitar amp/
guitar effects processors
Guitar with GK-2A/
other GR-compatible guitar
L
R
PHONES
LR
AC Adapter (included)
connect to AC power source
Synthesizer amp
(keyboard amplifier, PA system, etc.)
When plugging in Monaural Amps or Headphones,
turn on the power to the GR-30 while holding down
pedal 1 (Monaural Output).
See p. 49
See
p. 13
The (L/R) MIX OUT jacks can also be
used as dual stereo headphone jacks.
However, note that the left and right
output of the R (PHONES) jack are
reversed. Also be aware that you
cannot simultaneously use one jack as
a LINE OUT while using the other as a
headphone jack — that is, you can't use
a monaural plug and a stereo plug at
the same time.
✽
To prevent malfunction and/or damage to speakers or
other devices, always turn down the volume, and turn
off the power on all devices before making any connec-
tions.
✽
To prevent the inadvertent disruption of power to your
unit (should the plug be pulled out accidentally), and to
avoid applying undue stress to the AC adaptor jack,
anchor the power cord using the cord hook, as shown in
the illustration.
✽
Use only the specified expression pedal (EV-5; sold sepa-
rately). By connecting any other expression pedals, you
risk causing malfunction and/or damage to the unit.
