Roland Quad-Capture User Manual

31
Setting from the Control Panel

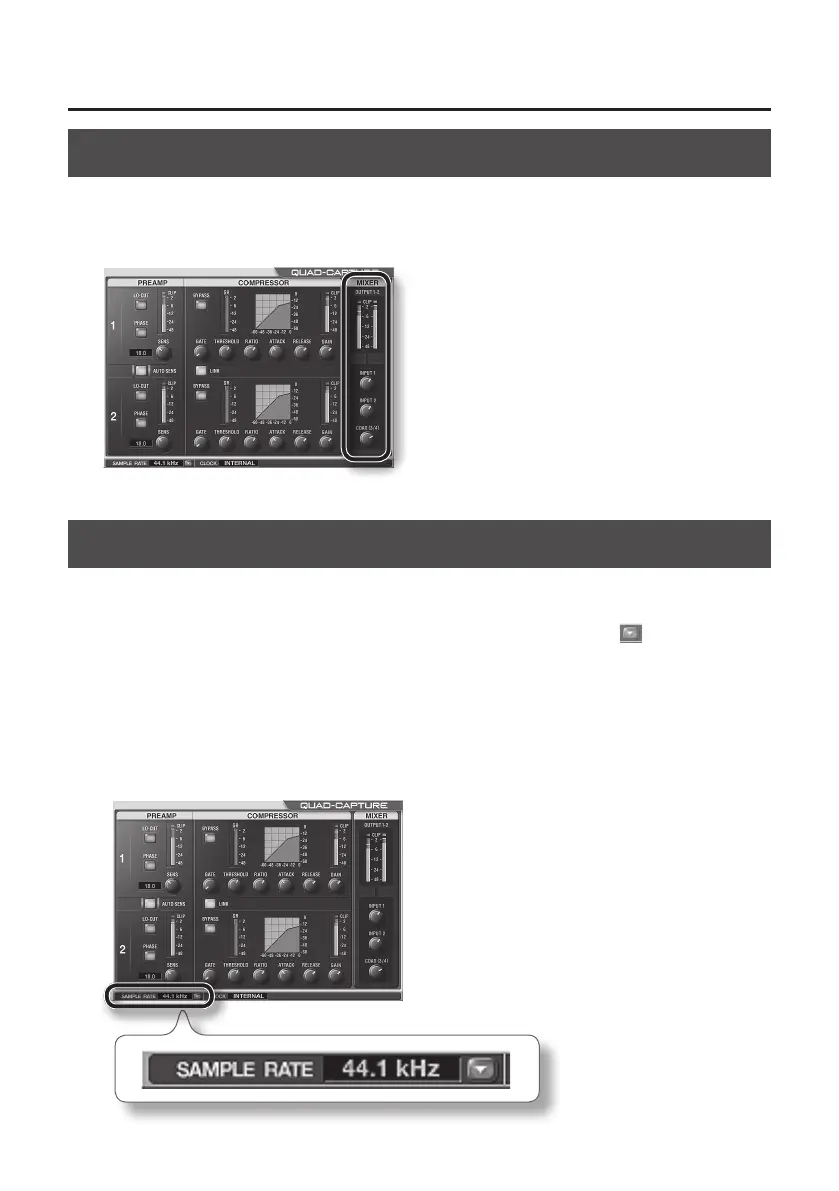

Setting the Input Mixer
You can control the monitor level of the audio data being input via the INPUT 1L jack, INPUT 2R jack,
or COAXIAL IN (3/4) jack.
Adjusting the monitor level does not aect the recording level.
Setting the Sampling Rate
The sampling rate setting of the QUAD-CAPTURE automatically changes to match the rate of the
audio data that is played, or the rate that your DAW software is set to when recording.
You can also change the sampling rate of the QUAD-CAPTURE manually. Click
of the SAMPLE
RATE, then select another sampling rate. In this case, you may also need to change the sampling rate
of the DAW software.
* The sampling rate cannot be changed during playback or recording, or when equipment is
connected to the COAXIAL IN (3/4) jack.
* When the sampling rate is switched, a small pop noise may be heard, but this does not indicate a
malfunction.

Roland Quad-Capture Specifications

General

Audio Resolution	24-bit/192 kHz
USB	USB 2.0
MIDI	In/Out
Direct Monitoring	Yes
Type	Audio Interface
Preamps	2x VS Preamps
OS Compatibility	Windows, macOS
Inputs	2x XLR/TRS combo
Phantom Power	Yes (48V, switchable on inputs 1-2)
Channels	4
Driver	ASIO, Core Audio
Dimensions	185 mm x 134 mm x 44 mm / 7-5/16 inches x 5-5/16 inches x 1-3/4 inches
